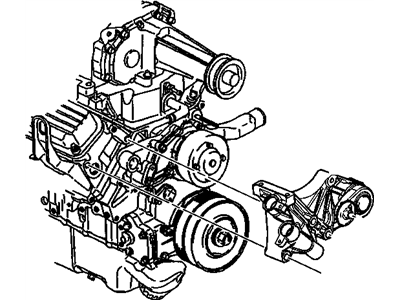

Engine Assembly-Front Cover & Cooling fit your 1999 Chevrolet Lumina

Currently shopping for

1999 Chevrolet Lumina

Change Vehicle

Select Vehicle Options to Filter Results

Select Engine

Select Transmission

Select Model Code

Categories Close X

Currently selected

Engine

Other Categories

Body Moldings, Sheet Metal, Rear Compartment Hardware, Roof Hardware

Body Mounting, Air Conditioning, Audio/Entertainment

Brakes

Brakes, Rear Axle, Propeller Shaft, Wheels, Tires

Cooling System, Grille, Oil System

Frames, Springs, Shocks, Bumpers, Fascias

Front End Sheet Metal, Heater

Front Suspension, Steering

Fuel System, Exhaust, Emission System

Interior Trim, Front Seat Trim, Seat Belts

Maintenance Parts, Fluids, Capacities, Electrical Connectors

Rear Glass, Seat Parts, Adjuster

Rear Seat Trim, Carpet

Starter, Generator, Ignition, Electrical, Lamps

Transmission - Automatic

Windshield, Wiper, Mirrors, Instrument Panel, Console, Doors

Parts Questions

Sort by:

Recommended

Part No. & Part Description

Price & Qty.

Part No. &
Part Description

PIPE, Engine Coolant By-Pass
24503423
PIPE, THERMOSTAT BYPASS UPPER(INCLUDES 324)(TO LOWER INTAKE MANIFOLD.)(8.846)
Fitting Vehicle Options: W(L36)
$19.54 $10.75
1
Add To Cart
12565082
PIPE, THERMOSTAT BYPASS LOWER
- Fitting Vehicle Options: W(L36)
$6.32 $3.35
5
Add To Cart
12590279
PIPE, THERMOSTAT BYPASS(PART OF LOWER INTAKE)(USE SEALANT 19332211(USA) OR 10953488(CANADA)
- Fitting Vehicle Options: W(L82)
$65.90 $36.74
1
Add To Cart
24505688
PIPE, THERMOSTAT BYPASS(PART OF 566)
- Fitting Vehicle Options: W(L82,KC4)
$37.02 $18.35
1
Add To Cart
24504902
PIPE, THERMOSTAT BYPASS(PART OF 566)
- Fitting Vehicle Options: W(L82)(EXC KC4)

24505924
THERMOSTAT, Engine Coolant Temperature, THERMOSTAT,ENGINE COOLANT(W/GASKET)(INCLUDES 306)(195 DEGREE)
$36.78 $18.12
1
Add To Cart

SEAL, Engine Front Cover & Crankshaft Seal
14090906
SEAL, CRANKSHAFT FRONT OIL(TIMING GEAR COVER)(61.57/61.37 MM O.D.)
Fitting Vehicle Options: W(L82)
$38.03 $20.16
1
Add To Cart
12582313
SEAL, CRANKSHAFT FRONT OIL
- Fitting Vehicle Options: W(L36)
$19.14 $12.16
1
Add To Cart

10189205
SEAL, Engine Coolant By-Pass, SEAL,THERMOSTAT BYPASS PIPE ADAPTER (O RING)(YELLOW)
$14.42 $12.60
1
Add To Cart

GASKET, Engine Front Cover
10189276
GASKET, ENGINE FRONT COVER
Fitting Vehicle Options: W(L82)
$11.45 $7.28
1
Add To Cart
12587003
GASKET, ENGINE FRONT COVER
- Fitting Vehicle Options: W(L36)
- Replaced By: 12731121
$14.35 $9.12
1
Add To Cart

BOLT, Engine Front Cover
11571223
BOLT, ENGINE FRONT COVER(#1,#2,#5,#6,#10 HOLE)(SINGLE USE)(M8X1.25X36)(27THD)(SINGLE USE)(6.525)
Require Quantity: 05
Package Quantity: 1
$7.41 $4.71
1
Add To Cart
22651578
BOLT, ENGINE FRONT COVER((#7,#8,#9 HOLE))(HEX FLANGED HEAD,M12X1.75X40)(8.900)
- Require Quantity: 03
- Package Quantity: 1
- Replaced By: 19369733
$11.47 $6.39
1
Add To Cart
11609752
BOLT, ENGINE FRONT COVER(#3,#4)(M10X1.5X39, 6H THREAD)(16 OUTSIDE DIAMETER, 16 THROUGH HOLE)(6.525)
- Require Quantity: 02
- Package Quantity: 1
$11.11 $7.06
1
Add To Cart

BOLT, Engine Coolant Pump
14078823
BOLT, WATER PUMP(M6X1X16)(HEXAGON HEAD)(1.050)
Fitting Vehicle Options: W(L82)
Require Quantity: 05
Package Quantity: 10
$5.23 $3.40
10
Add To Cart
25535660
BOLT, WATER PUMP(1/4-20X1.17,1.03 THREAD)(W/SEALER 01052080)
- Fitting Vehicle Options: W(L36)
- Require Quantity: 04
- Package Quantity: 1
$12.11 $7.69
1
Add To Cart

PUMP KIT, Engine Coolant
19209288
PUMP KIT, WATER(W/GASKET)
Fitting Vehicle Options: W(L36)
$240.52 $121.23
1
Add To Cart
89017269
PUMP KIT, WATER(W/GASKET)(INCLUDES 314)
- Fitting Vehicle Options: W(L82)
$240.34 $121.13
1
Add To Cart

10070107
VALVE, Engine Air Cooling Control, VALVE,ENGINE COOLANT AIR BLEED
$18.78 $10.47
1
Add To Cart

GASKET, Engine Coolant Pump
10182374
GASKET, WATER PUMP(PART OF 313)
Fitting Vehicle Options: W(L82)
$1.45 $0.77
1
Add To Cart
12615933
GASKET, WATER PUMP COVER(W/PUMP CASTING 12586948, FOR 1ST DESIGN SEE 24501565)
- Fitting Vehicle Options: W(L36)(2ND DES)
$30.03 $15.90
1
Add To Cart
24501565
GASKET, WATER PUMP COVER(W/O PUMP HOUSING CASTING "METAL GASKET ONLY", FOR 2ND DESIGN SEE 12615933)
- Fitting Vehicle Options: W(L36)(1ST DES)

24506985
SEAL, Engine Coolant Thermostat Housing, SEAL,ENGINE COOLANT THERMOSTAT(O RING)(PART OF 305)(OUTSIDE DIAMETER 1.84 INCHES)
$10.62 $5.63
1
Add To Cart

12591982
SHIELD, Distributor (also Knock Sensor), SHIELD,CRANKSHAFT POSITION SENSOR

12594580
OUTLET, Engine Coolant, OUTLET,WATER

25526395
BOLT, Distributor (also Knock Sensor), BOLT,CAMSHAFT POSITION SENSOR(TO FRONT COVER)(HEXAGON-W/FLAT WASHER W/ADHESIVE,1/4-20X.69,.55THD,5 O.D.,300M,PLAIN)

10182356
HOSE, Engine Coolant By-Pass, HOSE,THERMOSTAT BYPASS
$23.15 $14.72
1
Add To Cart

SENSOR, Distributor (also Knock Sensor)
10456161
SENSOR, CRANKSHAFT POSITION(4 PINION)(MATING CONNECT W/LEADS USE 15305942)
Fitting Vehicle Options: W(L36)
$164.86 $90.67
1
Add To Cart
10456148
SENSOR, CAMSHAFT POSITION(INCLUDES 357)(MATING CONNECTOR)
- Fitting Vehicle Options: W(L36)
12567649
SENSOR, CRANKSHAFT POSITION
- Fitting Vehicle Options: W(L82)

24503961
BOLT, Fan and Coolant Pump, BOLT,WATER PUMP PULLEY(WATER PUMP PULLEY)(M6X1.0 6G THREAD W/WASHER)(8MM SOCKET HEAD)
- Require Quantity: 04
- Package Quantity: 10
$0.92 $0.58
10
Add To Cart

15301403
HARNESS, Engine Wiring, HARNESS,ELECTRONIC IGNITION CONTROL MODULE WIRING(INCLUDES 345-349,356)

PULLEY, Fan and Coolant Pump
14091833
PULLEY, WATER PUMP(UA)(PART IS PULLEY ONLY)
Fitting Vehicle Options: W(L82)
$66.30 $35.14
1
Add To Cart
19367394
PULLEY, WATER PUMP
- Fitting Vehicle Options: W(L36)
$271.74 $144.02
1
Add To Cart

11610409
PLUG, Engine Mount Dampening, PLUG,ENGINE MOUNT STRUT ACCESS HOLE(TO CYL BLOCK)(0.293)
$6.46 $4.10
1
Add To Cart

CONNECTOR, Distributor (also Knock Sensor)
15305942
CONNECTOR, SENSOR-CRANKSHAFT POSITION(PART OF 344)(GRAY)(4-WAY FEMALE)(W/LEADS)
Fitting Vehicle Options: W(L36)
$87.83 $39.36
1
Add To Cart
84937218
CONNECTOR, CAMSHAFT POSITION SENS(PART OF 344)(BLACK)(3-WAY FEMALE)(W/LEADS)(2.530)
- Fitting Vehicle Options: W
$64.56 $34.22
1
Add To Cart

COVER, Engine Front Cover
19332914
COVER, ENGINE FRONT(COVER MACHINING LESS OIL PUMP)
Fitting Vehicle Options: W(L36)
$869.04 $547.59
1
Add To Cart
24505666
COVER, ENGINE FRONT
- Fitting Vehicle Options: W(L82)

19369733
ADHESIVE, Maintenance Products, ADHESIVE,THREADLOCKER(HIGH-STRENGTH)(HIGH-TEMPERATURE)(RED)(0.20 OUNCE)(PART OF 566)
$11.47 $6.39
1
Add To Cart

24505628
STUD, Engine Coolant, STUD,WATER OUTLET
$6.87 $4.36
1
Add To Cart

24508595
TENSIONER, Engine Cooling, TENSIONER,DRIVE BELT(WHEN USED ON 1999 MDLS MUST USE 3-11516109 BOLTS)(W/HEATER INLET & OUTLET PORTS)(PN STAMPED ON PULLEY)
$159.89 $54.37
1
Add To Cart

10457203
SEAL, Distributor (also Knock Sensor), SEAL,CAMSHAFT POSITION SENSOR HOLE PLUG(O RING)(PART OF 311)

24508387
MANIFOLD, Engine Fuel Intake Manifold, MANIFOLD,LOWER INTAKE(INCLUDES 301,302,304)

11514597
NUT, HEX FLANGED HEAD,10X1.5 THREAD, 9.8 THICK, 21.8 OUTSIDE DIAMETER, 510M (10) PHOSPHATE ZINC ORGANIC - FLAKE 7111M(ENGINE MOUNT STRUT BRACKET)(2.383)
- Fitting Vehicle Options: W
$8.42 $4.46
1
Add To Cart

11514596
NUT, HEX FLANGED HEAD,M8X1.25,17.9 OUTSIDE DIAMETER,738 THICK,13MM HEXAGON,10, PHOSPHATE ZINC ORGANIC - FLAKE(THERMOSTAT BYPASS PIPE CLIP)(8.915)
$12.60
1
Add To Cart

11561025
BOLT, HEX FLANGED HEAD,M6X1X16,13.5 THREAD,14.2 OUTSIDE DIAMETER,GMW25 STEEL,GMW3200,MACHINE,HEADER POINT(THERMOSTAT BYPASS PIPE)(PART OF 566)
$9.15 $5.81
1
Add To Cart

11561025
BOLT, HEX FLANGED HEAD,M6X1X16,13.5 THREAD,14.2 OUTSIDE DIAMETER,GMW25 STEEL,GMW3200,MACHINE,HEADER POINT(FUEL INJECTION FUEL RAIL)
$9.15 $5.81
1
Add To Cart

11561025
BOLT, HEX FLANGED HEAD,M6X1X16,13.5 THREAD,14.2 OUTSIDE DIAMETER,GMW25 STEEL,GMW3200,MACHINE,HEADER POINT(CRANKSHAFT POSITION SENSOR)
- Require Quantity: 02
- Package Quantity: 1
$9.15 $5.81
1
Add To Cart

11516109
BOLT, HEX FLANGED HEAD,REDUCED BODY,M10X1.5X65,25 THREAD,22.3 O.D.,HEADER POINT,10.9,7114M(DRIVE BELT TENSIONER)
- Require Quantity: 02
- Package Quantity: 10
$6.52 $4.14
10
Add To Cart

1470030
CLAMP, WORM TYPE(11/16" TO 1 5/16")(THERMOSTAT BYPASS PIPE)
- Require Quantity: 02
- Package Quantity: 1
- Replaced By: 11610236
$7.38 $4.69
1
Add To Cart

11503504
PIN, M6X16,STEEL,PLAIN(ENGINE FRONT COVER LOCATING)
$7.40 $4.69
1
Add To Cart

11515754
BOLT, HEAVY HEXAGON HEAD,M8X1.25X12,18 O.D.,10.9,PHOSPHATE ZINC ORGANIC(WATER PUMP PULLEY)
- Require Quantity: 04
- Package Quantity: 1
$7.99 $5.07
1
Add To Cart

11508600
BOLT, HEX FLANGED HEAD,M6X1X20,9.8,PHOSPHATE ZINC ORGANIC(THERMOSTAT BYPASS PIPE)
- Require Quantity: 02
- Package Quantity: 1
- Replaced By: 11517518
$7.91 $4.78
1
Add To Cart

25536321
PIN, DOWEL 1/4"X 1/2"(WATER PUMP COVER)
- Require Quantity: 02
- Package Quantity: 1
$7.39 $4.69
1
Add To Cart

25536323
PIN, DOWEL 1/4"X 1 3/8"(FRONT COVER TO CYL BLOCK)
- Fitting Vehicle Options: (L36)
$8.70 $5.53
1
Add To Cart

11508040
BOLT, HEXAGON,M8X1.25X25,9.8,PHOSPHATE ZINC ORGANIC(WATER OUTLET)
$3.36 $2.13

Genuine GM Parts, the Right Choice

GMPartsGiant.com offers the wholesale prices for genuine 1999 Chevrolet Lumina parts. Parts like Engine Assembly-Front Cover & Cooling are shipped directly from authorized GM dealers and backed by the manufacturer's warranty. Parts fit for the following vehicle options. Engine: 6 Cyl 3.1L, 6 Cyl 3.8L. Model Code: LS, LTZ, LUMINA, Z34.
