How do you remove the Rack And Pinion?

To remove the tie-rod, start by loosening the wheel lug nuts and raising the front of the vehicle. Support it securely, block the rear wheels, and set the parking brake. Remove the front wheel. Then, loosen the jam nut enough to mark the position of the tie-rod end in relation to the threads. Remove the cotter pin and loosen the nut on the tie-rod end stud. Use a puller to disconnect the tie-rod from the steering knuckle arm. Remove the nut and separate the tie-rod. To install the tie-rod, thread the tie-rod end onto the marked position and insert the tie-rod stud into the steering knuckle arm. Tighten the jam nut securely. Install the castellated nut on the stud and tighten it. Install a new cotter pin. Finally, install the wheel and lug nuts, lower the vehicle, and tighten the lug nuts. It is recommended to have the alignment checked by a dealer service department or an alignment shop.

Genuine Chevrolet Metro Rack And Pinion

Steering Rack And Pinion

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

5 Rack And Pinions found

View related parts

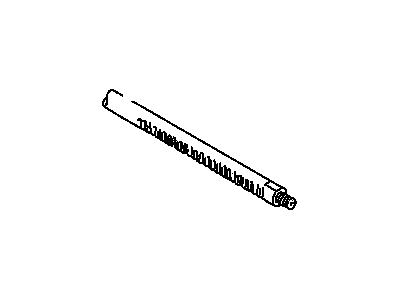

Chevrolet Metro Rack,Steering Gear
Part Number: 91174285
Product Specifications
- Other Name: RACK, Steering Gear
- Replaces: 96060598
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1989-1994 Chevrolet Metro | 2 DOOR, 4 DOOR, CONVERTIBLE, LSI 2 DOOR, LSI 4 DOOR, LSI CONVERTIBLE, XFI 2 DOOR | 3 Cyl 1.0L, 4 Cyl 1.3L
View related parts
Chevrolet Metro Rack,Steering Gear
Part Number: 91171354
Product Specifications
- Other Name: RACK, Steering Gear
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1995-1997 Chevrolet Metro | 2 DOOR, 4 DOOR | 3 Cyl 1.0L, 4 Cyl 1.3L
View related parts
Chevrolet Metro Rack,Steering,LH (On Esn)
Part Number: 91174286
Product Specifications
- Other Name: RACK, Steering Gear
- Replaces: 96066553
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1992-1994 Chevrolet Metro | 4 DOOR | 3 Cyl 1.0L, 4 Cyl 1.3L
View related parts
Chevrolet Metro Gear,Steering
Part Number: 91174168
Product Specifications
- Other Name: GEAR, Steering; Gear Assembly, Steering Gear
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1998-2001 Chevrolet Metro | 2 DOOR, 4 DOOR | 3 Cyl 1.0L, 4 Cyl 1.3L
View related parts
Chevrolet Metro Gear,Steering
Part Number: 91173969
Product Specifications
- Other Name: GEAR, Steering; Gear Assembly, Steering Gear
- Replaces: 91171357
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1995-2000 Chevrolet Metro | 4 DOOR | 3 Cyl 1.0L, 4 Cyl 1.3L

Chevrolet Metro Rack And Pinion Parts Questions & Experts Answers

Rack,Steering Gear
91174285
Q: How do you remove the Rack And Pinion?
A: To remove the tie-rod, start by loosening the wheel lug nuts and raising the front of the vehicle. Support it securely, block the rear wheels, and set the parking brake. Remove the front wheel. Then, loosen the jam nut enough to mark the position of the tie-rod end in relation to the threads. Remove the cotter pin and loosen the nut on the tie-rod end stud. Use a puller to disconnect the tie-rod from the steering knuckle arm. Remove the nut and separate the tie-rod. To install the tie-rod, thread the tie-rod end onto the marked position and insert the tie-rod stud into the steering knuckle arm. Tighten the jam nut securely. Install the castellated nut on the stud and tighten it. Install a new cotter pin. Finally, install the wheel and lug nuts, lower the vehicle, and tighten the lug nuts. It is recommended to have the alignment checked by a dealer service department or an alignment shop.
