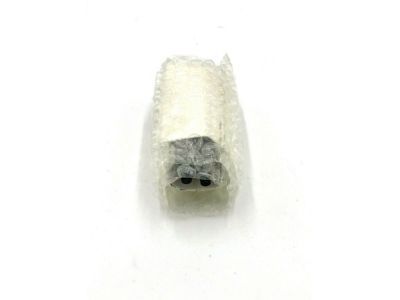

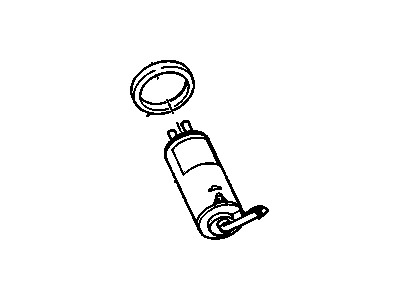

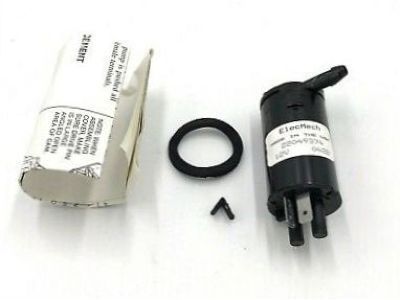

Cadillac 22049373 Pump, Windshield Washer

You can Select Your Vehicle to check if 22049373 fits your vehicle.

Removal of the wiper arms requires the use of a special tool, G.M. J-8966 or equivalent, which is generally available in auto parts stores. Insert the tool or a screwdriver under the wiper arm and pry the arm off the shaft, being careful not to scratch the paint. Disconnect the Washer Pump hose from the arm (if so equipped) and remove the arm. To install, position the arm over the shaft and press down, making sure to install the arms in the same position on the windshield as they were when they were removed. Raising the hood on most later models will facilitate easier wiper arm removal.

Disconnect the negative battery cable and the electrical harness on the pump, then drain the washer solvent from the fluid reservoir. Remove the screws mounting the reservoir, disconnect the fluid hoses, and pull the reservoir from the engine compartment. Remove the pump from the reservoir and inspect the grommet for dry-rot or any other deterioration. Installation is the reverse of removal.

Disconnect the washer hoses and electrical wiring. Remove the mounting screws and the four lobe washer pump drive cam. Lift off the pump from the motor.
