Manual Transaxle Gear fit your 1992 Chevrolet Prizm

Currently shopping for

1992 Chevrolet Prizm

Change Vehicle

Categories Close X

Currently selected

Transmission - Manual

Other Categories

Body Moldings, Sheet Metal, Rear Compartment Hardware, Roof Hardware

Body Mounting, Air Conditioning, Audio/Entertainment

Body Wiring, Roof Trim

Brakes

Brakes, Rear Axle, Propeller Shaft, Wheels, Tires

Cooling System, Grille, Oil System

Engine

Frames, Springs, Shocks, Bumpers

Front End Sheet Metal, Heater

Front Suspension, Steering

Fuel System, Exhaust, Emission System

Interior Trim, Front Seat Trim, Seat Belts

Rear Glass, Seat Parts, Adjuster

Rear Seat Trim, Carpet

Starter, Generator, Ignition, Electrical, Lamps

Transmission - Automatic

Windshield, Wiper, Mirrors, Instrument Panel, Console, Doors

Parts Questions

Sort by:

Recommended

Part No. & Part Description

Price & Qty.

Part No. &
Part Description

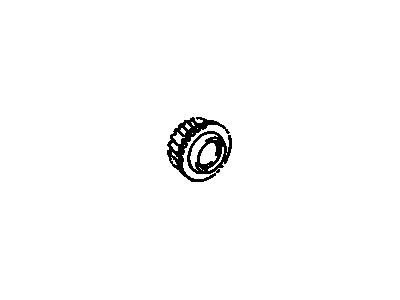

GEAR, Transmission First/Reverse Gear
19205317
GEAR, 1ST(USE TOGETHER WITH 94853551 RING)
Fitting Vehicle Options: SL(MM5)
$213.77 $161.45
1
Add To Cart
94851785
GEAR, 1ST(USE TOGETHER WITH 94853551 RING)
- Fitting Vehicle Options: SK(MM5)

SHAFT, Transmission Main Drive(Clutch)
19205344
SHAFT, INPUT
Fitting Vehicle Options: SL(MM5)
$351.46 $199.94
1
Add To Cart
94860057
SHAFT, INPUT
- Fitting Vehicle Options: SK(MM5)

19205414
BEARING, Transmission Mainshaft Center/Rear, BEARING,MAIN SHAFT REAR
$86.97 $52.54
1
Add To Cart

94844003
BOLT, Hex, BOLT,HEXAGON(M8X1.25X12) HEADER POINT,W/LOCK WASHER(14.3MM DIAMETER
$7.16
1
Add To Cart

HUB, Transmission Synchronizer

19204257
HUB, 5TH GEAR SYN
19205242
HUB, 3RD & 4TH GEAR SYN

88974084
RETAINER, Transmission Clutch Gear, RETAINER,INPUT & MAIN SHAFT BEARING

INSERT, Transmission Synchronizer
88974594
INSERT, 1ST & 2ND GEAR SYN
Require Quantity: 03
Package Quantity: 1
88974596
INSERT, 3RD & 4TH GEAR SYN
- Require Quantity: 03
- Package Quantity: 1
88974598
INSERT, 5TH GEAR SYN
- Require Quantity: 03
- Package Quantity: 1

SPRING, Transmission Synchronizer
88974595
SPRING, 1ST & 2ND GEAR SYN INSERT
Require Quantity: 03
Package Quantity: 1
88974597
SPRING, 3RD & 4TH GEAR SYN INSERT
- Require Quantity: 03
- Package Quantity: 1
94840754
SPRING, 5TH GEAR SYN(58.6MM OUTSIDE DIAMETER)
- Require Quantity: 02
- Package Quantity: 1

GEAR,Fourth & Fifth Gear

88975051
GEAR, 3RD(USE TOGETHER WITH 94860102 3RD BLOCKING RING)
94851791
GEAR, 5TH

94840434
BALL, Transmission First/Reverse Gear, BALL,1ST GEAR THRUST WASHER LOCATING(4.76MM DIAMETER)(6.608)

BEARING, Transmission Gear

94840708
BEARING, 1ST GEAR(38MM INSIDE DIAMETER, 44MM OUTSIDE DIAMETER)(26MM HIGH)
94840710
BEARING, 3RD GEAR(31MM INSIDE DIAMETER, 36MM OUTSIDE DIAMETER)(24.4MM HIGH)
94840712
BEARING, 5TH GEAR(24.9MM INSIDE DIAMETER, 29.9MM OUTSIDE DIAMETER)(26.8MM HIGH)
94843800
BEARING, 2ND GEAR(32MM INSIDE DIAMETER, 38MM OUTSIDE DIAMETER)(26.5MM HIGH)
94844305
BEARING, 4TH GEAR(29MM INSIDE DIAMETER, 34MM OUTSIDE DIAMETER)(24.4MM HIGH)(4.422)

SPACER,Fourth & Fifth Gear

94840713
SPACER, 5TH GEAR BEARING(25MM INSIDE DIAMETER, 29MM OUTSIDE DIAMETER)(2.5MM THICK)
94840737
SPACER, 3RD & 4TH COUNTER GEAR(43.5MM OUTSIDE DIAMETER, 28.7MM INSIDE DIAMETER)(24.9MM LONG)(4.416)
94844306
SPACER, 4TH GEAR BEARING(29.2MM INSIDE DIAMETER, 33.1MM OUTSIDE DIAMETER)(2.0MM THICK)

94840716
RETAINER, Transmission Rear Bearing & Mainshaft, RETAINER,MAIN SHAFT BEARING

94840717
TROUGH, Transmission Case, TROUGH,MANUAL TRANSMISSION OIL(DIFFERENTIAL HOUSING)

94840736
WASHER, Transmission Main Shaft Gear, WASHER,1ST GEAR THRUST(38.1MM INSIDE DIAMETER, 52MM OUTSIDE DIAMETER)(6MM THICK)

94840738
SPACER, Transmission Rear Bearing & Mainshaft, SPACER,2ND GEAR BEARING(32.2MM INSIDE DIAMETER, 37MM OUTSIDE DIAMETER)(3.9MM THICK)

94842648
PIN, Straight, PIN,SLOTTED SPRING

94842875
BOLT, Transmission Reverse Idler Shaft, BOLT,REV IDLER GEAR SHAFT(M8X1.25X35)

94843201
SHAFT, Transmission Reverse Idler, SHAFT,REV IDLER GEAR

WASHER, Transmission Reverse Idler Gear

94843202
WASHER, REV IDLER GEAR THRUST(18.2MM INSIDE DIAMETER, 29MM OUTSIDE DIAMETER)(3.5MM THICK)
94846128
WASHER, REV IDLER GEAR SHAFT(8.3MM INSIDE DIAMETER, 16.5MM OUTSIDE DIAMETER)(2.0MM THICK)

RING, Transmission Synchronizer
94843441
RING, 5TH GEAR SYN HUB THRUST(18MM INSIDE DIAMETER, 24MM O.D.)(CODE A)(2.25-2.30MM THICK)
Fitting Vehicle Options: S(MM5)
94843442
RING, 5TH GEAR SYN HUB THRUST(18MM INSIDE DIAMETER, 24MM O.D.)(CODE B)(2.31-2.36MM THICK)
- Fitting Vehicle Options: S(MM5)
94843443
RING, 5TH GEAR SYN HUB THRUST(18MM INSIDE DIAMETER, 24MM O.D.)(CODE C)(2.37-2.42MM THICK)
- Fitting Vehicle Options: S(MM5)
94843444
RING, 5TH GEAR SYN HUB THRUST(18MM INSIDE DIAMETER, 24MM O.D.)(CODE D)(2.43-2.48MM THICK)
- Fitting Vehicle Options: S(MM5)
94843445
RING, 5TH GEAR SYN HUB THRUST(18MM INSIDE DIAMETER, 24MM O.D.)(CODE E)(2.49-2.54MM THICK)
- Fitting Vehicle Options: S(MM5)
94843446
RING, 5TH GEAR SYN HUB THRUST(18MM INSIDE DIAMETER, 24MM O.D.)(CODE F)(2.55-2.560MM THICK)
- Fitting Vehicle Options: S(MM5)
94843447
RING, 5TH GEAR SYN HUB THRUST(18MM INSIDE DIAMETER, 24MM O.D.)(CODE G)(2.61-2.66MM THICK)
- Fitting Vehicle Options: S(MM5)
94843460
RING, 1ST & 2ND GEAR SYN RETAINER(CODE A)(2.50MM THICK)(36.6MM O.D., 29.2MM INSIDE DIAMETER)
- Fitting Vehicle Options: S(MM5)
94843461
RING, 1ST & 2ND GEAR SYN RETAINER(CODE B)(2.56MM THICK)(36.6MM O.D., 29.2MM INSIDE DIAMETER)
- Fitting Vehicle Options: S(MM5)
94843462
RING, 1ST & 2ND GEAR SYN RETAINER(CODE C)(2.62MM THICK)(36.6MM O.D., 29.2MM INSIDE DIAMETER)
- Fitting Vehicle Options: S(MM5)
94843463
RING, 1ST & 2ND GEAR SYN RETAINER(CODE D)(2.68MM THICK)(36.6MM O.D.,29.2MM INSIDE DIAMETER)
- Fitting Vehicle Options: S(MM5)
94843464
RING, 1ST & 2ND GEAR SYN RETAINER(CODE E)(2.74MM THICK)(36.6MM O.D., 29.2MM INSIDE DIAMETER)
- Fitting Vehicle Options: S(MM5)
94843465
RING, 1ST & 2ND GEAR SYN RETAINER(CODE F)(2.80MM THICK)(36.6MM O.D., 29.2MM INSIDE DIAMETER)
- Fitting Vehicle Options: S(MM5)
94844307
RING, 3RD & 4TH GEAR SYN HUB RETAINER(26.6MM INSIDE DIAMETER, 34.8MM OUTSIDE DIAMETER)(CODE 0)(2.30MM THICK)
- Fitting Vehicle Options: S(MM5)
94844308
RING, 3RD & 4TH GEAR SYN HUB RETAINER(26.6MM INSIDE DIAMETER, 34.8MM OUTSIDE DIAMETER)(CODE 1)(2.36MM THICK)
- Fitting Vehicle Options: S(MM5)
94844309
RING, 3RD & 4TH GEAR SYN HUB RETAINER(26.6MM INSIDE DIAMETER, 34.8MM OUTSIDE DIAMETER)(CODE 2)(2.42MM THICK)
- Fitting Vehicle Options: S(MM5)
94844310
RING, 3RD & 4TH GEAR SYN HUB RETAINER(26.6MM INSIDE DIAMETER, 34.8MM OUTSIDE DIAMETER)(CODE 3)(2.48MM THICK)
- Fitting Vehicle Options: S(MM5)
94844311
RING, 3RD & 4TH GEAR SYN HUB RETAINER(26.6MM INSIDE DIAMETER, 34.8MM OUTSIDE DIAMETER)(CODE 4)(2.54MM THICK)
- Fitting Vehicle Options: S(MM5)
94844312
RING, 3RD & 4TH GEAR SYN HUB RETAINER(26.6MM INSIDE DIAMETER, 34.8MM OUTSIDE DIAMETER)(CODE 5)(2.60MM THICK)
- Fitting Vehicle Options: S(MM5)
94851783
RING, 5TH GEAR BLOCKING
- Fitting Vehicle Options: S(MM5)
94851839
RING, 4TH GEAR BLOCKING
- Fitting Vehicle Options: SL(MM5), SK(MM5), S(MM5)
94851839
RING, 3RD GEAR BLOCKING
- Fitting Vehicle Options: SK(MM5)
94851845
RING, 2ND GEAR BLOCKING
- Fitting Vehicle Options: SK(MM5)
94851851
RING, 2ND GEAR BLOCKING
- Fitting Vehicle Options: SL(MM5)
94860101
RING, 3RD GEAR BLOCKING(REPAIR-REQUIRED WHEN USING 88973200 3RD GEAR TO SERVICE VEHICLES WITH PRODUCTION DATE OF 04/91 TO 05/94)
- Fitting Vehicle Options: SK(LV6,MM5)

RING, Transmission Clutch Gear

94843448
RING, INPUT SHAFT REAR BEARING THRUST(22MM INSIDE DIAMETER, 28MM OUTSIDE DIAMETER)(CODE A)(2.29MM THICK)
94843449
RING, INPUT SHAFT REAR BEARING THRUST(22MM INSIDE DIAMETER, 28MM OUTSIDE DIAMETER)(CODE B)(2.35MM THICK)
94843450
RING, INPUT SHAFT REAR BEARING THRUST(22MM INSIDE DIAMETER, 28MM OUTSIDE DIAMETER)(CODE C)(2.41MM THICK)
94843451
RING, INPUT SHAFT REAR BEARING THRUST(22MM INSIDE DIAMETER, 28MM OUTSIDE DIAMETER)(CODE D)(2.47MM THICK)
94843452
RING, INPUT SHAFT REAR BEARING THRUST(22MM INSIDE DIAMETER, 28MM OUTSIDE DIAMETER)(CODE E)(2.53MM THICK)
94843453
RING, INPUT SHAFT REAR BEARING THRUST(22MM INSIDE DIAMETER, 28MM OUTSIDE DIAMETER)(CODE F)(2.59MM THICK)
94843471
RING, INPUT SHAFT REAR BEARING THRUST(64.4MM INSIDE DIAMETER, 71MM OUTSIDE DIAMETER)(1.8MM THICK)

94843470
RING, Transmission Rear Bearing & Mainshaft, RING,MAIN SHAFT REAR BEARING RETAINER(56.9MM INSIDE DIAMETER, 63.6MM OUTSIDE DIAMETER)(1.8MM THICK)

94844299
SHAFT, Transmission Mainshaft, SHAFT,MAIN

BEARING, Transmission Clutch Gear

94844301
BEARING, INPUT SHAFT FRONT(25MM INSIDE DIAMETER, 43.5MM OUTSIDE DIAMETER)(15MM HIGH)
94844304
BEARING, INPUT SHAFT REAR(25MM INSIDE DIAMETER, 68MM OUTSIDE DIAMETER)(19MM HIGH)

GEAR, Transmission Countershaft

94845631
GEAR, 3RD COUNTER
94851853
GEAR, 4TH COUNTER
94851855
GEAR, 5TH COUNTER

94850210
SLEEVE, Transmission Synchronizer, SLEEVE,5TH GEAR SYN(USE TOGETHER WITH 94850207 FORK)

94851619
BOLT, Transmission Clutch Gear, BOLT,INPUT & MAIN SHAFT BEARING RETAINER(M8X1.25X20)(CONTAINS WASHER-14.3MM O.D.)
- Require Quantity: 05
- Package Quantity: 1

94851844
RING, Transmission Internal Shift, RING,1ST GEAR BLOCKING

94851849
GEAR, Transmission Reverse Idler, GEAR,REV IDLER

94855309
SHIELD, Transmission Mainshaft Center/Rear, SHIELD,MAIN SHAFT BEARING OIL

94855720
GEAR, Transmission Third,Fourth & Fifth Gear, GEAR,4TH

SLEEVE KIT, Transmission Synchronizer

94855791
SLEEVE KIT, 3RD & 4TH GEAR SYN(TRANS NO. BEGINNING W/Z OR NO FRONT LETTER)
94858371
SLEEVE KIT, 3RD & 4TH GEAR SYN(W/TRANS NO. BEGINNING W/A,B,X,OR Y)

94856639
GEAR, Transmission Second Speed, GEAR,2ND(REQUIRES (3) 94844042 INSERT TOGETHER WITH (1) 94853550 RING)

Genuine GM Parts, the Right Choice

GMPartsGiant.com offers the wholesale prices for genuine 1992 Chevrolet Prizm parts. Parts like Manual Transaxle Gear are shipped directly from authorized GM dealers and backed by the manufacturer's warranty. Parts fit for the following vehicle options. Engine: 4 Cyl 1.6L. Model Code: 4 DOOR, GSI 4 DOOR.
