Manual Transaxle Gear Shift Fork & Shaft fit your 1987 Chevrolet Nova

Currently shopping for

1987 Chevrolet Nova

Change Vehicle

Vehicle Options

4 Cyl 1.6L 2BBL

Vehicle Options

4 Cyl 1.6L 2BBL

Categories Close X

Currently selected

Transmission - Manual

Other Categories

Body Moldings, Sheet Metal, Rear Compartment Hardware, Roof Hardware

Body Mounting, Air Conditioning, Audio/Entertainment

Body Wiring, Roof Trim

Brakes

Brakes, Rear Axle, Propeller Shaft, Wheels, Tires

Cooling System, Grille, Oil System

Engine

Frames, Springs, Shocks, Bumpers

Front End Sheet Metal, Heater

Front Suspension, Steering

Fuel System, Exhaust, Emission System

Interior Trim, Front Seat Trim, Seat Belts

Rear Glass, Seat Parts, Adjuster

Rear Seat Trim, Carpet

Starter, Generator, Ignition, Electrical, Lamps

Transmission - Automatic

Windshield, Wiper, Mirrors, Instrument Panel, Console, Doors

Parts Questions

Sort by:

Recommended

Part No. & Part Description

Price & Qty.

Part No. &
Part Description

SPRING, Transmission Synchronizer
94840730
SPRING, 3RD & 4TH GEAR SYN(43MM LONG)
Require Quantity: 02
Package Quantity: 1
$22.67 $19.45
1
Add To Cart
94853938
SPRING, 3RD & 4TH GEAR SYN(43MM LONG)(24.6MM OUTSIDE DIAMETER)(SEAT)(49.9MM LONG)
$4.14 $3.38
1
Add To Cart

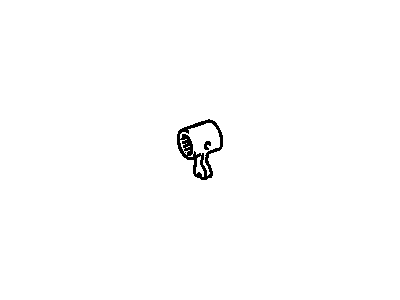

ARM, Transmission Internal Shift

94855593
ARM, 3RD & 4TH SHIFT FORK(WHEN USING TO REPLACE 1985-92 OR 1993 W/PRODUCTION DATE PRIOR TO 06/93 USE 1-94855596 SEAT)
$28.67 $23.38
1
Add To Cart
94842991
ARM, 1ST & 2ND SHIFT FORK

94840621
GASKET, Transmission Control Lever, GASKET,SHIFT CONTROL SHAFT COVER

94840627
GASKET, Transmission Interlock, GASKET,SHIFT INTERLOCK PLATE BOLT(2.5MM THICK)(12.3MM INSIDE DIAMETER, 21MM O.D.)

94840756
SHOE, Transmission Internal Shift, SHOE,REV SHIFT FORK

94840764
SHAFT, Transmission Rail End, SHAFT,SHIFT CONTROL

94840765
PLATE, Transmission Internal Shift, PLATE,SHIFT INTERLOCK

94840766
SEAT, Transmission Internal Shift, SEAT,1ST & 2ND SELECTOR STOP SPRING(34MM O.D.)(34MM OUTSIDE DIAMETER)

94840767
SEAT, Transmission Synchronizer, SEAT,3RD & 4TH GEAR SYN SPRING(32MM OUTSIDE DIAMETER)

94840768
COVER, Transmission Internal Shift Shaft, COVER,SHIFT CONTROL SHAFT

94840769
BOOT, Transmission Control Lever, BOOT,SHIFT CONTROL SHAFT

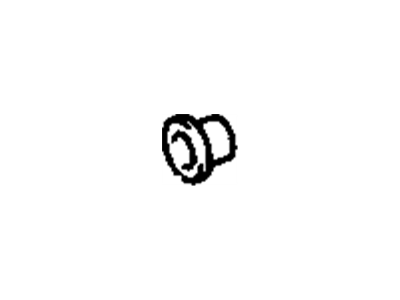

SEAT, Transmission Shift Shaft Detent

94840773
SEAT, 3RD & 4TH SHIFT SHAFT DETENT SPRING(28.9MM LONG)(9.7MM INSIDE DIAMETER, 10.6MM O.D.)
94840773
SEAT, 5TH SHIFT SHAFT DETENT SPRING(28.9MM LONG)(9.7MM INSIDE DIAMETER, 10.6MM O.D.)
94840773
SEAT, 1ST & 2ND SHIFT SHAFT DETENT SPRING(28.9MM LONG)(9.7MM INSIDE DIAMETER, 10.6MM O.D.)

BALL, Transmission Internal Shift

94840774
BALL, 3RD & 4TH SHIFT SHAFT DETENT(9.53MM DIAMETER)(4.311)
94840786
BALL, REV SHIFT FORK DETENT(6.35MM OUTSIDE DIAMETER)(STEEL)
- Require Quantity: 02
- Package Quantity: 1

BALL, Transmission Shift Shaft Detent

94840774
BALL, 1ST & 2ND SHIFT SHAFT DETENT(9.53MM DIAMETER)
94840774
BALL, 5TH SHIFT SHAFT DETENT(9.53MM DIAMETER)

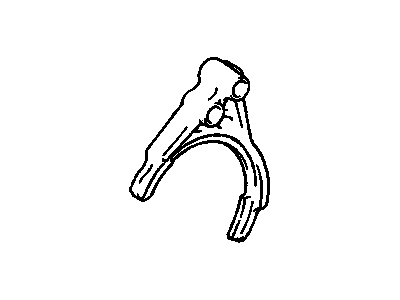

FORK, Transmission Internal Shift

94840785
FORK, REV SHIFT
94850206
FORK, 3RD & 4TH SHIFT
94851593
FORK, 1ST & 2ND SHIFT(USE TOGETHER WITH 94846157 BOLT)

PLUG, Transmission Internal Shift

94840787
PLUG, REV SHIFT SHAFT DETENT(INCLUDES: SPRING & LOCK BALL)
94842685
PLUG, 5TH SHIFT SHAFT DETENT(M12X1.25X8.3)(18MM ROUND HEAD W/6MM HEXAGON)

BOLT, Hex

94842250
BOLT, HEXAGON
94844007
BOLT, HEXAGON

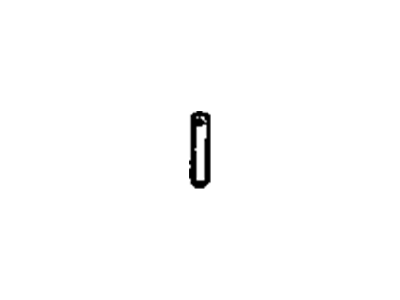

PIN, Transmission Internal Shift

94842645
PIN, CONTROL SELECTOR ARM(M5.3X32)
94842647
PIN, 1ST & 2ND SHIFT FORK(ARM RETAINER)(5.2MM OUTSIDE DIAMETER)(SLOTTED SPRING)(25.5MM LONG)(4.303)

94842645
PIN, Transmission Rail End, PIN,CONTROL SELECTOR ARM(M5.3X32)

94842646
PIN, Transmission Shift Shaft Detent, PIN,REV INHIBITOR(5.2MM OUTSIDE DIAMETER)(CAM RETAINER)(SLOTTED SPRING)(20MM LONG)

PLUG, Transmission Shift Shaft Detent

94842684
PLUG, REV INHIBITOR CAM PINION HOLE(M10X1.25X7.5)(15MM ROUND HEAD, 6MM HEXAGON RECESS)
94842685
PLUG, 3RD & 4TH SHIFT SHAFT DETENT(M12X1.25X8.3)(18MM ROUND HEAD W/6MM HEXAGON)(4.307)
94842685
PLUG, 1ST & 2ND SHIFT SHAFT DETENT(M12X1.25X8.3)(18MM ROUND HEAD W/6MM HEXAGON)(4.307)

94843048
RING, Transmission Synchronizer, RING,3RD & 4TH GEAR SYN SPRING SEAT RETAINER(12MM INSIDE DIAMETER, 23MM OUTSIDE DIAMETER)(1.5MM THICK)

94843053
RING, RING,REV SHIFT FORK SHOE RETAINER

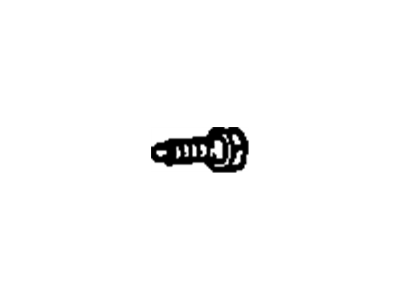

BOLT, Transmission Internal Shift

94843108
BOLT, SHIFT INTERLOCK PLATE
94846157
BOLT, 3RD & 4TH SHIFT BLOCK(M6X0.75X21)
94846157
BOLT, 1ST & 2ND SHIFT FORK(M6X0.75X21)
94846157
BOLT, 5TH SHIFT FORK(M6X0.75X21)
94846157
BOLT, 3RD & 4TH SHIFT FORK(M6X0.75X21)

94843437
RING, Transmission Internal Shift Fork, RING,REV SHIFT FORK RETAINER(12MM INSIDE DIAMETER, 17MM OUTSIDE DIAMETER)(1.5MM THICK)

RING, Transmission Internal Shift Shaft

94843437
RING, 5TH SHIFT SHAFT RETAINER(12MM INSIDE DIAMETER, 17MM OUTSIDE DIAMETER)(1.5MM THICK)(4.312)
94843437
RING, 3RD & 4TH SHIFT SHAFT RETAINER(12MM INSIDE DIAMETER, 17MM OUTSIDE DIAMETER)(1.5MM THICK)(4.312)
94843437
RING, 1ST & 2ND SHIFT SHAFT RETAINER(12MM INSIDE DIAMETER, 17MM OUTSIDE DIAMETER)(1.5MM THICK)(4.312)

94843438
RING, Transmission Internal Shift, RING,1ST & 2ND SELECTOR STOP SPRING SEAT RETAINER(15MM INSIDE DIAMETER, 21MM OUTSIDE DIAMETER)(1.5MM THICK)

94846156
BLOCK, Transmission Internal Shift, BLOCK,3RD & 4TH SHIFT

94849494
CAM, Transmission Shift Shaft Detent, CAM,REV INHIBITOR(INCLUDES SHAFT)(4.307)

SPRING, Transmission Shift Shaft Detent

94851587
SPRING, 1ST & 2ND SHIFT SHAFT DETENT
94851587
SPRING, 5TH SHIFT SHAFT DETENT
94851587
SPRING, 3RD & 4TH SHIFT SHAFT DETENT

94854092
VENT, Transmission Case, VENT,MANUAL TRANSMISSION(10MM DIAMETER, 27MM LONG)

94854326
SPRING, Transmission Internal Shift, SPRING,1ST & 2ND SELECTOR STOP(35MM LONG)(35MM LONG)

94854732
SEAL, Transmission Control Lever, SEAL,SHIFT CONTROL SHAFT COVER(18MM INSIDE DIAMETER, 28MM OUTSIDE DIAMETER)(8MM HIGH)

94855870
BRACKET, Transmission Rail End, BRACKET,REV SHIFT LEVER

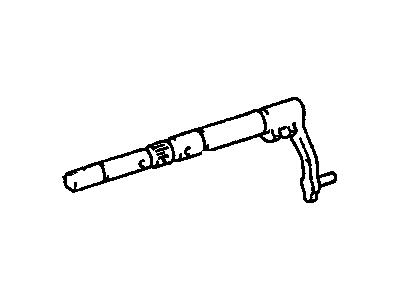

SHAFT, Transmission Internal Shift Shaft

94855945
SHAFT, 1ST & 2ND SHIFT
94855946
SHAFT, 3RD & 4TH SHIFT(USE TOGETHER WITH 94855948 SPRING)
94855947
SHAFT, 5TH & REV SHIFT

Genuine GM Parts, the Right Choice

GMPartsGiant.com offers the wholesale prices for genuine 1987 Chevrolet Nova parts. Parts like Manual Transaxle Gear Shift Fork & Shaft are shipped directly from authorized GM dealers and backed by the manufacturer's warranty. Parts fit for the following vehicle options. Engine: 4 Cyl 1.6L. Model Code: 4 DOOR, 4 DOOR NOTCHBACK.
