How to replace fuel injectors and Fuel Rail in a Toyota Matrix and Pontiac Vibe?

Disconnect the battery and relieve fuel pressure. Remove the PCV hose, engine cover, and fuel injector connectors. Move the wiring harness and disconnect the fuel line. Remove the fuel rail and injectors, replacing the 0-ring and grommet on each. Replace cylinder head insulators. Lubricate 0-rings and install injectors onto the fuel rail. Ensure spacers are in place and install the fuel rail/injector assembly. Tighten mounting bolts. Reverse steps to finish.

Genuine Pontiac Vibe Fuel Rail

Engine Fuel Rail

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

3 Fuel Rails found

View related parts

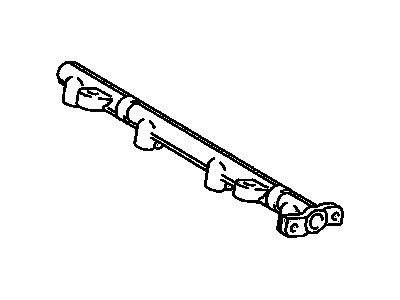

Pontiac Vibe Rail,Multiport Fuel Injection Fuel
Part Number: 19185449
Product Specifications
- Other Name: RAIL, Fuel Injection; Fuel Rail
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2009-2010 Pontiac Vibe | 4 DOOR AWD, ALL PURPOSE 4 DOOR, FWD GT | 4 Cyl 2.4L
View related parts

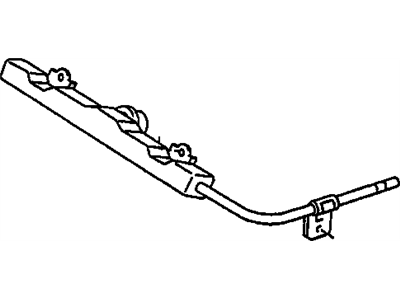

Pontiac Vibe Rail,Multiport Fuel Injection Fuel
Part Number: 88969640
Product Specifications
- Other Name: RAIL, Fuel Injection; Fuel Rail
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2003-2006 Pontiac Vibe | ALL PURPOSE 4 DOOR GT | 4 Cyl 1.8L
View related parts

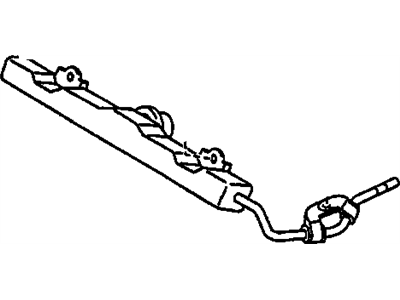

Pontiac Vibe Rail Asm,Multiport Fuel Injection Fuel
Part Number: 19205530
Product Specifications
- Other Name: RAIL, Fuel Injection; Fuel Rail
- Replaces: 88969050
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2003-2008 Pontiac Vibe | ALL PURPOSE 4 DOOR, ALL PURPOSE 4 DOOR AWD | 4 Cyl 1.8L

Pontiac Vibe Fuel Rail Parts Questions & Experts Answers

Rail,Multiport Fuel Injection Fuel
88969640
Q: How to replace fuel injectors and Fuel Rail in a Toyota Matrix and Pontiac Vibe?
A: Disconnect the battery and relieve fuel pressure. Remove the PCV hose, engine cover, and fuel injector connectors. Move the wiring harness and disconnect the fuel line. Remove the fuel rail and injectors, replacing the 0-ring and grommet on each. Replace cylinder head insulators. Lubricate 0-rings and install injectors onto the fuel rail. Ensure spacers are in place and install the fuel rail/injector assembly. Tighten mounting bolts. Reverse steps to finish.
