Is it advisable for the home mechanic to replace a faulty alternator unit on Oldsmobile Cutlass?

Because of the sensitivity of different parts of the alternator it might be more appropriate for the home mechanic to replace the faulty unit with a new one or a rebuilt one. However, if an overhaul is selected, it is essential to check avaiable of substitute components before proceeding. First of all, unlatch the alternator and pulley; thereafter hold the alternator in a vise for instance applying pressure in the mounting flange. To disassemble both the slip-ring, end frame, and stator assembly from the drive-end and the rotor assembly, unbolt the four through-bolts using a screwdriver then lever off H, I, K and L while aligning the drive-end frame G with mark G1 for reassembly. Then, unscrew the nuts connecting the stator lead, to release the stator from the end frame, thereafter, unthread the rectifier bridge, securing screw, and BAT terminal screw to unclip the capacitor lead and remove the rectifier bridge from the end frame. Remove the two security screws to pull out the brush holder and the regulator along with the insulating sleeves and washers and take out the capacitor from the end frame. If the slip ring end-frame bearing is dry or noisy it should be replaced, not greased; remove the old bearing with a hydraulic press, remove the oil seal, insert the new bearing until it conforms with the end frame, refit a new oil seal while adequately supporting the end frame. To the drive pulley end insert a ¼ inch Allen wrench to lock the shaft from rotating; then remove the pulley retaining nut followed by the washer, the pulley, the fan, and lastly the spacer. The rotor and the spacers need to be taken out from the drive end frame and if the bearing of the drive end frame was found either dry or noisy, it will have to be replaced without greasing. Remove the retainer plate bolts and separate the plate / seal assembly, to remove the bearing and replace it with a tube on the inner and outer races, making sure that the slinger is properly in its place and use the recommended grease before putting it back into use. After the alternator is totally disassembled, wash all the components, but do not use solvent on the stator or rotor windings and look for the signs of wear or damage; then replace the worn-out parts with the new ones. Wipe slip rings to free them of filth; when scraping the rotor turn it while holding 400 grain abrasive paper on slip rings to prevent making flat spots; deep scoring or very bad wear in slip rings indicates that the complete rotor needs to be replaced. Look at the brushes - if they look like this, throw them away, and replace the springs only if they look flimsy or misshapen halfway along their length. Reassembly is the process opposite to dismantling which requires certain specific details like tightening of the pulley nut until it gets fully tightened, proper positioning of insulating washers and sleeves on brush clip screws, cleaning brush contact surfaces before fixing the slip ring end frame, holding brushes up in their holders with a thin rod during assembling and rechecking the marks placed on the slip ring and drive end frame before starting dismantling.

Genuine Oldsmobile Cutlass Alternator

Generator

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

32 Alternators found

View related parts

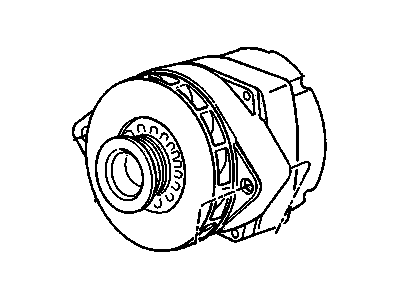

Oldsmobile Cutlass GENERATOR(Remanufacture)
Part Number: 10463176
$148.00 MSRP: $277.38
You Save: $129.38 (47%)
ADD TO CART
Product Specifications
- Other Name: Generator,(Remanufacture); Alternator
- Replaces: 10463116, 19152473
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1988-1993 Oldsmobile Cutlass | 2 DOOR, 4 DOOR, INTERNAL 2 DOOR, INTERNAL 4 DOOR | 6 Cyl 2.8L, 6 Cyl 3.1L
View related parts
Oldsmobile Cutlass GENERATOR Assembly Remanufacture Cs130
Part Number: 10463564
$103.07 MSRP: $193.14
You Save: $90.07 (47%)
ADD TO CART
Product Specifications
- Other Name: Generator Asm,Remanufacture Cs130 ; Generator, Engine Electrical; Alternator
- Replaces: 10463400
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1992-1993 Oldsmobile Cutlass | 2 DOOR, 4 DOOR, INTERNAL 2 DOOR, INTERNAL 4 DOOR | 6 Cyl 3.4L
View related parts
Oldsmobile Cutlass GENERATOR Assembly (Remanufacture)
Part Number: 10464427
$136.12 MSRP: $425.66
You Save: $289.54 (69%)
ADD TO CART
Product Specifications
- Other Name: Generator Asm,(Remanufacture) ; Generator, Engine Electrical; Alternator
- Replaces: 10464414
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1999 Oldsmobile Cutlass | SEDAN LEVEL I, SEDAN LEVEL II | 6 Cyl 3.1L
View related parts
Oldsmobile Cutlass GENERATOR Assembly (Remanufacture)
Part Number: 10464397
$149.43 MSRP: $465.09
You Save: $315.66 (68%)
ADD TO CART
Product Specifications
- Other Name: Generator Asm,(Remanufacture); Alternator
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1982-1985 Oldsmobile Cutlass | 2 DOOR, 4 DOOR, BROUGHAM 2 DOOR, BROUGHAM 4 DOOR, LS 2 DOOR, LS 4 DOOR, LS STATION WAGON | 6 Cyl 3.0L, 6 Cyl 3.8L
View related parts
Oldsmobile Cutlass GENERATOR(Remanufacture)
Part Number: 10463187
$81.36 MSRP: $254.88
You Save: $173.52 (69%)
ADD TO CART
Product Specifications
- Other Name: Generator,(Remanufacture); Alternator
- Replaces: 10463042
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1987-1989 Oldsmobile Cutlass | 2 DOOR, 4 DOOR, BROUGHAM 4 DOOR, BROUGHAM SL 2 DOOR, BROUGHAM STATION WAGON, SL 2 DOOR, SL 4 DOOR, SL STATION WAGON, STATION WAGON | 6 Cyl 2.8L
View related parts
Oldsmobile Cutlass GENERATOR Assembly Cs130D/100 (Remanufacture)
Part Number: 10463640
$153.15 MSRP: $296.98
You Save: $143.83 (49%)
ADD TO CART
Product Specifications
- Other Name: Generator Asm,Cs130D/100 (Remanufacture) ; Generator, Engine Electrical; Alternator, Alternator Assembly
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1997 Oldsmobile Cutlass | 2 DOOR, 4 DOOR | 6 Cyl 3.1L
View related parts
Oldsmobile Cutlass Generator Assembly, Remanufacture Cs130
Part Number: 10463376
$43.07 MSRP: $193.84
You Save: $150.77 (78%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Generator Assembly, Remanufacture Cs130 ; Generator, Engine Electrical; Alternator
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1993 Oldsmobile Cutlass | S 4 DOOR, S STATION WAGON, SL 4 DOOR, SL STATION WAGON | 4 Cyl 2.2L, 6 Cyl 3.1L, 6 Cyl 3.3L
View related parts
Oldsmobile Cutlass GENERATOR Assembly
Part Number: 10464398
$178.33 MSRP: $219.61
You Save: $41.28 (19%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Generator Asm,(Remanufacture) ; Generator, Engine Electrical; Alternator
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1982-1983 Oldsmobile Cutlass | 2 DOOR, 4 DOOR, BROUGHAM 2 DOOR, BROUGHAM 4 DOOR, LS 2 DOOR, LS 4 DOOR | 6 Cyl 4.3L Diesel
View related parts
Oldsmobile Cutlass Generator Assembly (Remanufacture)(Cs130D, 100)
Part Number: 10463884
$71.66 MSRP: $270.44
You Save: $198.78 (74%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Generator Assembly,(Remanufacture)(Cs130D, 100) ; Generator, Engine Electrical; Alternator
- Replaces: 10463653
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1995-1997 Oldsmobile Cutlass | 2 DOOR, 4 DOOR | 6 Cyl 3.1L
View related parts
Oldsmobile Cutlass Reman Alternator (Delco 12Si 78 Amps)
Part Number: 19151861
Product Specifications
- Other Name: Reman Alternator(Delco 12Si 78 Amps) ; Generator, Engine Electrical; Alternator, Alternator Assembly
- Replaces: 10463058
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1986-1988 Oldsmobile Cutlass | 2 DOOR, 4 DOOR, BROUGHAM 2 DOOR NOTCHBACK, BROUGHAM 4 DOOR, BROUGHAM SL 2 DOOR, BROUGHAM STATION WAGON, LS 2 DOOR NOTCHBACK, LS 4 DOOR, LS STATION WAGON, S 2 DOOR, STATION WAGON | 6 Cyl 2.8L
- 1982-1983 Oldsmobile Cutlass | 2 DOOR, 4 DOOR, BROUGHAM 2 DOOR, BROUGHAM 4 DOOR, LS 2 DOOR, LS 4 DOOR | 6 Cyl 4.3L Diesel
View related parts
Oldsmobile Cutlass Generator Assembly (Remanufacture)(Cs130D, 100)
Part Number: 10464067
Product Specifications
- Other Name: Generator Assembly,(Remanufacture)(Cs130D, 100) ; Generator, Engine Electrical; Alternator
- Replaces: 10463654
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1995-1996 Oldsmobile Cutlass | 2 DOOR, 4 DOOR | 6 Cyl 3.4L
View related parts
Oldsmobile Cutlass GENERATOR
Part Number: 1105364
Product Specifications
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1982-1984 Oldsmobile Cutlass | 2 DOOR, 4 DOOR, BROUGHAM 2 DOOR, BROUGHAM 4 DOOR, CUTLASS CALAIS, CUTLASS CRUISER | 6 Cyl 4.3L Diesel
View related parts
Oldsmobile Cutlass GENERATOR Assembly (Remanufacture)
Part Number: 10463177
Product Specifications
- Other Name: Generator Assembly, (Remanufacture) Cs130 ; Generator, Engine Electrical; Alternator
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1989-1992 Oldsmobile Cutlass | 2 DOOR, 4 DOOR, S 2 DOOR, S 4 DOOR, S STATION WAGON, SL 2 DOOR, SL 4 DOOR, SL STATION WAGON, STATION WAGON | 6 Cyl 3.3L
View related parts
Oldsmobile Cutlass GENERATOR Assembly (Remanufacture)(Delco Cs130 100 Amps)
Part Number: 19152475
Product Specifications
- Other Name: Generator Asm,(Remanufacture)(Delco Cs130 105 Amps) ; Generator, Engine Electrical; Alternator, Alternator Assembly
- Replaces: 10463411
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1994-1996 Oldsmobile Cutlass | S 4 DOOR, S STATION WAGON, SL 4 DOOR, SL STATION WAGON | 6 Cyl 3.1L
View related parts
Oldsmobile Cutlass Reman Alternator(Delco 10Si 63 Amps)(Regulator @ 9:00 )
Part Number: 19151858
Product Specifications
- Other Name: Reman Alternator(Delco 10Si 63 Amps)(Regulator @ 9:00 ) ; Generator, Engine Electrical; Alternator, Alternator Assembly
- Replaces: 01979865, 1979865, 1105360, 01105360
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1986 Oldsmobile Cutlass | 2 DOOR, 4 DOOR, BROUGHAM 2 DOOR NOTCHBACK, BROUGHAM 4 DOOR, BROUGHAM SL 2 DOOR, LS 2 DOOR NOTCHBACK, LS 4 DOOR, LS STATION WAGON, S 2 DOOR | 6 Cyl 2.8L
View related parts
Oldsmobile Cutlass GENERATOR Assembly (Remanufacture)
Part Number: 10463010
Product Specifications
- Other Name: Generator Assembly, (Remanufacture)
- Replaces: 10463009
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1987-1989 Oldsmobile Cutlass | 2 DOOR, 4 DOOR, BROUGHAM 4 DOOR, BROUGHAM SL 2 DOOR, BROUGHAM STATION WAGON, SL 2 DOOR, SL 4 DOOR, SL STATION WAGON, STATION WAGON | 6 Cyl 2.8L
View related parts
Oldsmobile Cutlass GENERATOR Assembly Remanufacture Cs130
Part Number: 10463565
Product Specifications
- Other Name: Generator Asm,Remanufacture Cs130 ; Generator, Engine Electrical; Alternator
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1991 Oldsmobile Cutlass | 2 DOOR, 4 DOOR | 6 Cyl 3.4L
View related parts
Oldsmobile Cutlass GENERATOR Assembly
Part Number: 10463024
Product Specifications
- Other Name: Generator Assembly, (Remanufacture) ; Generator, Engine Electrical
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1986-1988 Oldsmobile Cutlass | 2 DOOR, 4 DOOR, BROUGHAM 2 DOOR NOTCHBACK, BROUGHAM 4 DOOR, BROUGHAM SL 2 DOOR, BROUGHAM STATION WAGON, LS 2 DOOR NOTCHBACK, LS 4 DOOR, LS STATION WAGON, S 2 DOOR, STATION WAGON
View related parts
Oldsmobile Cutlass GENERATOR Assembly (Remanufacture)
Part Number: 10463088
Product Specifications
- Other Name: Generator Asm,(Remanufactured) ; Generator, Engine Electrical; Alternator
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1988-1989 Oldsmobile Cutlass | 2 DOOR, 4 DOOR | 6 Cyl 2.8L
View related parts
Oldsmobile Cutlass GENERATOR Assembly (Remanufacture)
Part Number: 10463022
Product Specifications
- Other Name: Generator Assembly, (Remanufacture) ; Generator, Engine Electrical; Alternator, Alternator Assembly
- Replaces: 10463113, 10463023
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1990-1991 Oldsmobile Cutlass | 2 DOOR, 4 DOOR | 4 Cyl 2.3L

| Page 1 of 2 |Next >

1-20 of 32 Results

Oldsmobile Cutlass Alternator

The alternator in Oldsmobile Cutlass vehicles serves as a very important part as it is an on-vehicle battery charger and a moving charge generator for the various electrical systems in the car. It works by transferring mechanical energy from the engine in the form of energy to electricity such as AC power which is then transformed to DC that is used to recharge the battery and power other circuits. The Oldsmobile Cutlass alternators usually have a two part cast aluminum that comprises of a stator and rotor. It consist of a rotating element known as the rotor which is enclosed in a stationary element referred to as the stator and as it rotates it produces a magnetic field that causes voltage to be induced. There are traditionally two wires attached to the alternator, one wire is for charging the battery, the other discharges the battery, depending on the automobiles electrical needs Oldsmobile Cutlass models have used various styles of alternators in the years including high output for cars that handle a demanding electrical load for instance those with superior sound systems and parts. These high-output alternators have the capability of charging in extra amperage to produce optimal performance in vehicles with more intensive electrical demand.

Each OEM Oldsmobile Cutlass Alternator we offer is competitively priced and comes with the assurance of the manufacturer's warranty for the part. Furthermore, we guarantee the speedy delivery of your orders right to your doorstep. Our hassle-free return policy is also in place for your peace of mind.

Oldsmobile Cutlass Alternator Parts Questions & Experts Answers

GENERATOR
1105364
Q: Is it advisable for the home mechanic to replace a faulty alternator unit on Oldsmobile Cutlass?
A: Because of the sensitivity of different parts of the alternator it might be more appropriate for the home mechanic to replace the faulty unit with a new one or a rebuilt one. However, if an overhaul is selected, it is essential to check avaiable of substitute components before proceeding. First of all, unlatch the alternator and pulley; thereafter hold the alternator in a vise for instance applying pressure in the mounting flange. To disassemble both the slip-ring, end frame, and stator assembly from the drive-end and the rotor assembly, unbolt the four through-bolts using a screwdriver then lever off H, I, K and L while aligning the drive-end frame G with mark G1 for reassembly. Then, unscrew the nuts connecting the stator lead, to release the stator from the end frame, thereafter, unthread the rectifier bridge, securing screw, and BAT terminal screw to unclip the capacitor lead and remove the rectifier bridge from the end frame. Remove the two security screws to pull out the brush holder and the regulator along with the insulating sleeves and washers and take out the capacitor from the end frame. If the slip ring end-frame bearing is dry or noisy it should be replaced, not greased; remove the old bearing with a hydraulic press, remove the oil seal, insert the new bearing until it conforms with the end frame, refit a new oil seal while adequately supporting the end frame. To the drive pulley end insert a ¼ inch Allen wrench to lock the shaft from rotating; then remove the pulley retaining nut followed by the washer, the pulley, the fan, and lastly the spacer. The rotor and the spacers need to be taken out from the drive end frame and if the bearing of the drive end frame was found either dry or noisy, it will have to be replaced without greasing. Remove the retainer plate bolts and separate the plate / seal assembly, to remove the bearing and replace it with a tube on the inner and outer races, making sure that the slinger is properly in its place and use the recommended grease before putting it back into use. After the alternator is totally disassembled, wash all the components, but do not use solvent on the stator or rotor windings and look for the signs of wear or damage; then replace the worn-out parts with the new ones. Wipe slip rings to free them of filth; when scraping the rotor turn it while holding 400 grain abrasive paper on slip rings to prevent making flat spots; deep scoring or very bad wear in slip rings indicates that the complete rotor needs to be replaced. Look at the brushes - if they look like this, throw them away, and replace the springs only if they look flimsy or misshapen halfway along their length. Reassembly is the process opposite to dismantling which requires certain specific details like tightening of the pulley nut until it gets fully tightened, proper positioning of insulating washers and sleeves on brush clip screws, cleaning brush contact surfaces before fixing the slip ring end frame, holding brushes up in their holders with a thin rod during assembling and rechecking the marks placed on the slip ring and drive end frame before starting dismantling.
