How do you replace the ignition switch and Ignition Lock Cylinder on Chevrolet Corvette?

To replace the ignition switch on 2002 and earlier models, first disconnect the cable from the negative terminal of the battery, then remove the instrument trim panel and the knee bolster trim panel. Next, detach the lock cylinder connector from the ignition switch, remove the ignition switch bezel, and take out the bolts securing the ignition switch to the dash. For automatic models, remove the park/lock cable before taking out the ignition switch. Installation is the reverse of removal. For 2003-2004 models, start by removing the center console, knee bolster trim panel, and instrument panel trim panel. Disconnect the ignition switch electrical connector by pressing in on the locking tabs, then remove the ignition switch bezel plate carefully to avoid cracking it. Detach the hazard switch wiring harness and the park/lock cable if applicable, then remove the ignition switch retaining bolts and the lock housing, with installation being the reverse of removal. For 2005 and later models, the rolling code security system prevents unauthorized access by sending signals in random order. If a "NO KEY FOB" message appears, it may be due to interference from RF signals in certain areas; try moving the key fob or placing it in the glove box slot for better access to the vehicle's systems. To remove the park/lock cable from the ignition switch housing, access the ignition switch, turn the key to the ON position, and use a small flat screwdriver to depress the retaining clip before pulling the cable out. For ignition Ignition Lock Cylinder removal, follow the ignition switch removal procedures, insert the key and turn it to ON, then depress the tab on the lock housing to pull the key and tumbler out. Insert the correctly cut key into the replacement Ignition Lock Cylinder and push it into the ignition switch lock housing until it clicks. Ensure the ignition switch operates correctly in all positions, and installation is the reverse of removal.

Genuine Chevrolet Corvette Ignition Switch

Starter Ignition Switch

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

6 Ignition Switches found

View related parts

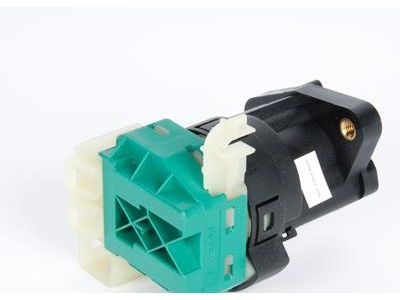

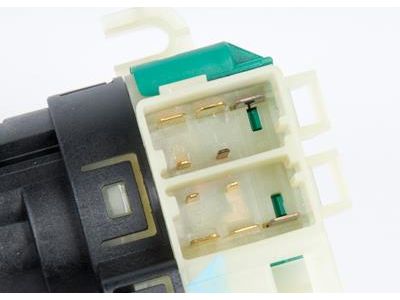

Chevrolet Corvette Switch Assembly, Ignition & Start
Part Number: 10308321
$107.36 MSRP: $225.57
You Save: $118.21 (53%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: SWITCH, Ignition Switch; Ignition Switch
- Replaces: 10246848
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1997-2004 Chevrolet Corvette | 2 DOOR, CONVERTIBLE, NOTCHBACK | 8 Cyl 5.7L
View related parts
Chevrolet Corvette Switch Assembly, Ignition & Start *Ebony
Part Number: 25900944
$58.54 MSRP: $122.98
You Save: $64.44 (53%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: SWITCH, Ignition Switch; Ignition Switch
- Replaces: 15894410
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2005-2013 Chevrolet Corvette | 2 DOOR, 2 DOOR SPECIAL, CONVERTIBLE | 8 Cyl 6.0L, 8 Cyl 6.2L, 8 Cyl 7.0L
View related parts
Chevrolet Corvette Switch Assembly, Ign & Start
Part Number: 84831141
$26.39 MSRP: $47.34
You Save: $20.95 (45%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Power Switch, Start Button
- Replaced by: 85007203
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2020-2024 Chevrolet Corvette | LT2 AWD CONVERTIBLE, LT2 AWD COUPE, LT6 CONVERTIBLE, LT6 COUPE, Stingray Convertible, STINGRAY CONVERTIBLE, Stingray Coupe, STINGRAY COUPE | 8 Cyl 5.5L, 8 Cyl 6.2L
View related parts
Chevrolet Corvette Switch Assembly, On/Off Veh
Part Number: 84593316
$17.72 MSRP: $31.77
You Save: $14.05 (45%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Power Switch, Start Button
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2020 Chevrolet Corvette | Stingray Convertible, Stingray Coupe | 8 Cyl 6.2L
View related parts
Chevrolet Corvette Switch,Ignition & Start
Part Number: 1990116
Product Specifications
- Other Name: SWITCH, Ignition Switch; Ignition Switch
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1984-1996 Chevrolet Corvette | 2 DOOR, CONVERTIBLE | 8 Cyl 5.7L
View related parts
Chevrolet Corvette Switch,Ignition Key Alarm
Part Number: 26022717
Product Specifications
- Other Name: SWITCH, Ignition Switch Warning, Lock, Headlamp,Theft Deterrent or Frt/Rear/Side Object
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1984-1996 Chevrolet Corvette | 2 DOOR, CONVERTIBLE | 8 Cyl 5.7L

Chevrolet Corvette Ignition Switch

Chevrolet Corvette vehicle has an Ignition Switch which plays a primary role in the ignition as well as charging process of the vehicle and functions as a switch to turn on various electrical facilities like radio or power window and many other more. Conventional Chevrolet Corvette cars had a mechanical key as the means to actuate the Ignition Switch also known as the key-only system. In some Chevrolet Corvette models, addition in the years has made it possible to have keyless ignition systems where the use of a push button is used while it needs transponder signal to start. This evolution is from the period of the past to the current with all the facilities one can note with the accommodation having certain security aspects well preserved. However, the failure of Ignition Switch has become critical for Chevrolet Corvette automobiles, but the company tends to replace and fix basic products, it works under general plug-in models appropriate for differently supplied cars and Corvette.

Each OEM Chevrolet Corvette Ignition Switch we offer is competitively priced and comes with the assurance of the manufacturer's warranty for the part. Furthermore, we guarantee the speedy delivery of your orders right to your doorstep. Our hassle-free return policy is also in place for your peace of mind.

Chevrolet Corvette Ignition Switch Parts Questions & Experts Answers

Switch Assembly, Ignition & Start
10308321
Q: How do you replace the ignition switch and Ignition Lock Cylinder on Chevrolet Corvette?
A: To replace the ignition switch on 2002 and earlier models, first disconnect the cable from the negative terminal of the battery, then remove the instrument trim panel and the knee bolster trim panel. Next, detach the lock cylinder connector from the ignition switch, remove the ignition switch bezel, and take out the bolts securing the ignition switch to the dash. For automatic models, remove the park/lock cable before taking out the ignition switch. Installation is the reverse of removal. For 2003-2004 models, start by removing the center console, knee bolster trim panel, and instrument panel trim panel. Disconnect the ignition switch electrical connector by pressing in on the locking tabs, then remove the ignition switch bezel plate carefully to avoid cracking it. Detach the hazard switch wiring harness and the park/lock cable if applicable, then remove the ignition switch retaining bolts and the lock housing, with installation being the reverse of removal. For 2005 and later models, the rolling code security system prevents unauthorized access by sending signals in random order. If a "NO KEY FOB" message appears, it may be due to interference from RF signals in certain areas; try moving the key fob or placing it in the glove box slot for better access to the vehicle's systems. To remove the park/lock cable from the ignition switch housing, access the ignition switch, turn the key to the ON position, and use a small flat screwdriver to depress the retaining clip before pulling the cable out. For ignition Ignition Lock Cylinder removal, follow the ignition switch removal procedures, insert the key and turn it to ON, then depress the tab on the lock housing to pull the key and tumbler out. Insert the correctly cut key into the replacement Ignition Lock Cylinder and push it into the ignition switch lock housing until it clicks. Ensure the ignition switch operates correctly in all positions, and installation is the reverse of removal.
