How do you remove the Sway Bar Bushing,Sway Bar Kit and Sway Bar Link?

To remove the bushings and links, start by loosening the front wheel lug nuts and raising the front of the vehicle. Support it securely on jackstands and remove the front wheels. Then, detach the sway bar links by removing the nuts that attach them to the strut coil spring assembly and the sway bar. Next, remove the bolts and nuts from the sway bar bushing retainers and pry them off if necessary. Inspect the retainer bushings for any cracks or tears and replace them if needed. If the ball studs on the links are loose or worn, replace the links. To install the links, tighten the link nuts to the proper torque specifications. Install the retainer bushings by cleaning the areas on the sway bar where they are located and lubricating the inside and outside of the new bushings with vegetable oil. Finally, install the retainers and bolts, tightening them to the specified torque. For the removal of the sway bar kit, start by removing the bushings after the clamps are unbolted. Support the transaxle with a floor jack and remove the rear transaxle mount. On certain models, the steering gear does not need to be removed. Twist the sway bar kit up and remove it through the right wheel opening. The installation process is the reverse of the removal procedure.

Genuine Chevrolet Cobalt Sway Bar Bushing

Stabilizer Sway Bar Bushing

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

4 Sway Bar Bushings found

View related parts

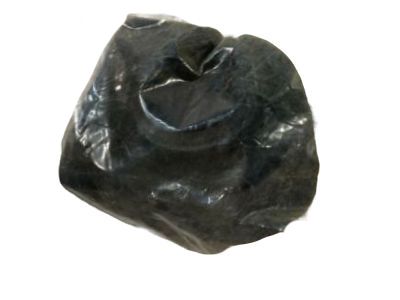

Chevrolet Cobalt Insulator, Front Stabilizer Shaft
Part Number: 20902786
Product Specifications
- Other Name: INSULATOR, Stabilizer Shaft; Bushing, Stabilizer Bar Bushing
- Position: Front
- Replaces: 15821022, 10392767
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2005-2010 Chevrolet Cobalt | 2 DOOR, 4 DOOR, LEVEL ONE (LS) 2 DOOR, LEVEL ONE (LS) 4 DOOR, LEVEL THREE (SS) 2 DOOR, LEVEL THREE (SS) 4 DOOR, LEVEL TWO (LT) 2 DOOR, LEVEL TWO (LT) 4 DOOR | 4 Cyl 2.0L, 4 Cyl 2.2L, 4 Cyl 2.4L
View related parts

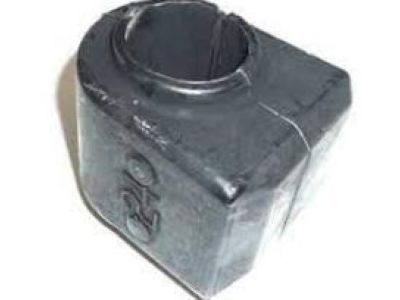

Chevrolet Cobalt Insulator, Front Stabilizer Shaft
Part Number: 20902787
Product Specifications
- Other Name: INSULATOR, Stabilizer Shaft; Bushing, Stabilizer Bar Bushing
- Position: Front
- Replaces: 10370616, 15820163
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2006-2010 Chevrolet Cobalt | 2 DOOR, 4 DOOR, LEVEL ONE (LS) 2 DOOR, LEVEL ONE (LS) 4 DOOR, LEVEL THREE (SS) 2 DOOR, LEVEL THREE (SS) 4 DOOR, LEVEL TWO (LT) 2 DOOR, LEVEL TWO (LT) 4 DOOR | 4 Cyl 2.0L, 4 Cyl 2.2L, 4 Cyl 2.4L
View related parts
Chevrolet Cobalt Insulator, Front Stabilizer Shaft
Part Number: 20902785
Product Specifications
- Other Name: INSULATOR, Stabilizer Shaft; Bushing, Stabilizer Bar Bushing
- Position: Front
- Replaces: 15822993, 10389618
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2008-2010 Chevrolet Cobalt | LEVEL 4 PERFORMANCE/SC (SS) 2 DOOR, LEVEL 4 PERFORMANCE/SC (SS) 4 DOOR | 4 Cyl 2.0L, 4 Cyl 2.2L, 4 Cyl 2.4L
View related parts
Chevrolet Cobalt Insulator, Front Stabilizer Shaft
Part Number: 22700091
Product Specifications
- Other Name: INSULATOR, Stabilizer Shaft
- Position: Front
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2005-2007 Chevrolet Cobalt | LEVEL 4 PERFORMANCE (SS) 2 DOOR, LEVEL 4 PERFORMANCE/SC (SS) 2 DOOR | 4 Cyl 2.0L, 4 Cyl 2.2L, 4 Cyl 2.4L

Chevrolet Cobalt Sway Bar Bushing

The Sway Bar Bushing in Chevrolet Cobalt automobiles is extremely vital in stabilizing the ride and also the manner in which it handles. They stabilize the sway bar to make it operational in case of any occurrence on the road. If the Sway Bar Bushings are worn out then the sway bar is necessarily loose and therefore the handling and safety of the vehicle is affected adversely. It may be that other kinds or types of Sway Bar Bushings were used in the different models of Cobalt at different times but do not specify the variations. The primary function remains consistent: to ensure that there is an added support and strength to the sway bar as this is Centre to the proper performance of the car. Sway Bar Bushings should be checked and if possible replaced often to prevent wearing out and causing negative impacts while on the road.

Each OEM Chevrolet Cobalt Sway Bar Bushing we offer is competitively priced and comes with the assurance of the manufacturer's warranty for the part. Furthermore, we guarantee the speedy delivery of your orders right to your doorstep. Our hassle-free return policy is also in place for your peace of mind.

Chevrolet Cobalt Sway Bar Bushing Parts Questions & Experts Answers

Insulator, Front Stabilizer Shaft
20902786
Q: How do you remove the Sway Bar Bushing,Sway Bar Kit and Sway Bar Link?
A: To remove the bushings and links, start by loosening the front wheel lug nuts and raising the front of the vehicle. Support it securely on jackstands and remove the front wheels. Then, detach the sway bar links by removing the nuts that attach them to the strut coil spring assembly and the sway bar. Next, remove the bolts and nuts from the sway bar bushing retainers and pry them off if necessary. Inspect the retainer bushings for any cracks or tears and replace them if needed. If the ball studs on the links are loose or worn, replace the links. To install the links, tighten the link nuts to the proper torque specifications. Install the retainer bushings by cleaning the areas on the sway bar where they are located and lubricating the inside and outside of the new bushings with vegetable oil. Finally, install the retainers and bolts, tightening them to the specified torque. For the removal of the sway bar kit, start by removing the bushings after the clamps are unbolted. Support the transaxle with a floor jack and remove the rear transaxle mount. On certain models, the steering gear does not need to be removed. Twist the sway bar kit up and remove it through the right wheel opening. The installation process is the reverse of the removal procedure.
