How to replace a water pump in a Chevrolet Camaro?

Disconnect the cable from the negative battery terminal. Raise the vehicle and support it securely on jackstands. Remove the under-vehicle splash shield. Drain the cooling system. If the coolant is relatively new and in good condition, save it and reuse it. Once the coolant has drained, lower the vehicle. Remove the drivebelt. Remove the air filter housing and air intake duct/resonator. For V6 engines, use a pin spanner or strap wrench to hold the water pump pulley from turning, and remove the pulley mounting bolts and pulley. Remove the bolts attaching the water pump to the timing chain cover and remove the pump from the engine. If the water pump is stuck, gently tap it with a soft-faced hammer to break the seal. Clean the bolt threads and the threaded holes in the engine and remove all corrosion and sealant. Remove all traces of old gasket material from the sealing surfaces. For V8 engines, remove the engine cover. On non-supercharged models, remove the drivebelt tensioner and the idler pulley mounting bolt and pulley. On supercharged models, remove the supercharger drivebelt and tensioner, then remove the tensioner bracket bolts and bracket. Disconnect and remove the hoses to the water pump. Unbolt and remove the water pump from the front of the engine. It may be necessary to tap the pump with a soft-face hammer to break the gasket seal. To install, remove the gaskets from the engine, then compare the new pump and replacement gaskets to the old ones to make sure that they're identical. Apply a thin film of RTV sealant to hold the new gasket in place during installation. O-rings should be coated with clean coolant. Make sure the gasket is correctly positioned on the water pump and the mating surfaces are clean and free of old gasket material. Carefully mate the pump to the water pump housing. On V6 models, install the bolts and, following the recommended sequence, tighten the bolts to the torque. On V8 models, install the water pump bolts and tighten them, a little at a time, to the torque. The remainder of installation is the reverse of removal. Refill the cooling system. Operate the engine to check for leaks.

Genuine Chevrolet Camaro Water Pump

H2O Pump

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

19 Water Pumps found

View related parts
Chevrolet Camaro Engine Coolant Pump Kit
Part Number: 19209288
$121.23 MSRP: $240.52
You Save: $119.29 (50%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Pump Kit,Water; Fan Blade, Water Pump, Water Pump Assembly
- Replaces: 89017813, 89060462, 12482903, 12537829, 89018214
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1995-2002 Chevrolet Camaro | 2 DOOR, CONVERTIBLE | 6 Cyl 3.8L
View related parts
Chevrolet Camaro Engine Coolant Pump Kit
Part Number: 19207665
$216.00 MSRP: $428.56
You Save: $212.56 (50%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Pump Kit,Water ; Pump Kit, Engine Coolant; Water Pump
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2010-2015 Chevrolet Camaro | SS 2 DOOR CONVERTIBLE, SS 2 DOOR COUPE | 8 Cyl 6.2L
View related parts
Chevrolet Camaro Water Pump Kit
Part Number: 19417097
$127.28 MSRP: $252.53
You Save: $125.25 (50%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Pump Kit,Wat; Water Pump, Water Pump Assembly
- Replaces: 19201601, 88894005, 12532531, 12532529, 12369487
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1985-1992 Chevrolet Camaro | 2 DOOR, RS 2 DOOR, RS CONVERTIBLE | 8 Cyl 5.0L, 8 Cyl 5.7L
View related parts
Chevrolet Camaro Water Pump Assembly (W/ Manif)
Part Number: 12700555
$276.95 MSRP: $549.49
You Save: $272.54 (50%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Pump Assembly, Wat (W/ Manif); Manifold, Water Pump, Water Pump Assembly
- Replaces: 12685733, 12670051, 12681260, 12674637
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2016-2021 Chevrolet Camaro | 2 DOOR CONVERTIBLE 1SS, 2 DOOR CONVERTIBLE 2SS, 2 DOOR CONVERTIBLE HIGH PERFORMANCE, 2 DOOR COUPE 1SS, 2 DOOR COUPE 2SS, 2 DOOR COUPE HIGH PERFORMANCE | 8 Cyl 6.2L
View related parts
Chevrolet Camaro Water Pump Kit
Part Number: 12681185
$282.25 MSRP: $560.02
You Save: $277.77 (50%)
ADD TO CART
Product Specifications
- Other Name: Pump Kit, Wat
- Replaces: 19256263
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1998-2002 Chevrolet Camaro | 2 DOOR, CONVERTIBLE | 8 Cyl 5.7L
View related parts
Chevrolet Camaro Engine Coolant Pump Kit
Part Number: 19180610
$226.36 MSRP: $449.16
You Save: $222.80 (50%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Pump Kit,Water; Water Pump, Water Pump Assembly
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2012-2015 Chevrolet Camaro | SS 2 DOOR CONVERTIBLE, SS 2 DOOR COUPE | 8 Cyl 6.2L
View related parts
Chevrolet Camaro Pump Assembly, Wat
Part Number: 25201450
$220.44 MSRP: $437.39
You Save: $216.95 (50%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Water Pump, Water Pump Assembly
- Replaces: 12657198, 12663910, 12653661, 12690252
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2016-2023 Chevrolet Camaro | 2 DOOR CONVERTIBLE 1LS/1LT, 2 DOOR CONVERTIBLE 1LT, 2 DOOR CONVERTIBLE 2LT, 2 DOOR COUPE 1LS/1LT, 2 DOOR COUPE 1LT, 2 DOOR COUPE 2LT | 4 Cyl 2.0L
View related parts
Chevrolet Camaro Pump Kit, Wat
Part Number: 12707180
$109.12 MSRP: $216.53
You Save: $107.41 (50%)
ADD TO CART
Product Specifications
- Other Name: Water Pump, Water Pump Assembly
- Replaces: 12672035
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2016-2020 Chevrolet Camaro | 2 DOOR CONVERTIBLE 1LS/1LT, 2 DOOR CONVERTIBLE 1LT, 2 DOOR CONVERTIBLE 2LT, 2 DOOR COUPE 1LS/1LT, 2 DOOR COUPE 1LT, 2 DOOR COUPE 2LT | 6 Cyl 3.6L
View related parts
Chevrolet Camaro Water Pump Kit
Part Number: 12687615
$105.24 MSRP: $219.14
You Save: $113.90 (52%)
ADD TO CART
Product Specifications
- Other Name: Pump Kit, Water; Water Pump
- Replaced by: 19431949
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2016-2024 Chevrolet Camaro | 2 DOOR CONVERTIBLE 1SS, 2 DOOR CONVERTIBLE 2SS, 2 DOOR COUPE 1SS, 2 DOOR COUPE 2SS | 8 Cyl 6.2L
View related parts
Chevrolet Camaro Pump Kit, Wat
Part Number: 12710208
$275.62 MSRP: $546.87
You Save: $271.25 (50%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Water Pump, Water Pump Assembly
- Replaces: 12681186, 19303456, 89017457, 12686762, 89018052, 89017592, 19434778
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2014-2015 Chevrolet Camaro | SS 2 DOOR COUPE | 8 Cyl 7.0L
View related parts
Chevrolet Camaro Water Pump Kit
Part Number: 12685965
$130.78 MSRP: $259.47
You Save: $128.69 (50%)
ADD TO CART
Product Specifications
- Other Name: Pump Kit, Wat; Pump Assembly, Water Pump, Water Pump Assembly
- Replaces: 12522033, 12529305, 88894341
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1982-1991 Chevrolet Camaro | 2 DOOR, 4 DOOR, RS 2 DOOR, RS CONVERTIBLE | 8 Cyl 5.0L, 8 Cyl 5.7L
View related parts

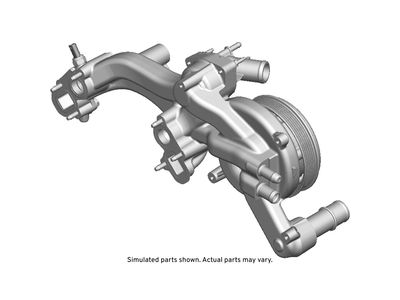

Chevrolet Camaro PUMP ASM-WAT (W/ MANIF)
Part Number: 12720527
$254.48 MSRP: $458.52
You Save: $204.04 (45%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Water Pump Assembly
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2022-2024 Chevrolet Camaro | 2 DOOR CONVERTIBLE 1SS, 2 DOOR CONVERTIBLE 2SS, 2 DOOR CONVERTIBLE HI PERFORMANCE, 2 DOOR CONVERTIBLE HIGH PERFORMANCE, 2 DOOR COUPE 1SS, 2 DOOR COUPE 2SS, 2 DOOR COUPE HI PERFORMANCE, 2 DOOR COUPE HIGH PERFORMANCE | 8 Cyl 6.2L
View related parts
Chevrolet Camaro Engine Coolant Pump Kit
Part Number: 12527741
Product Specifications
- Other Name: Pump Kit,Water ; Pump Kit, Engine Coolant; Water Pump, Water Pump Assembly
- Replaces: 12518277
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1993-1997 Chevrolet Camaro | 2 DOOR, CONVERTIBLE | 8 Cyl 5.7L
View related parts
Chevrolet Camaro Pump Kit, Wat
Part Number: 12709178
$196.97 MSRP: $354.90
You Save: $157.93 (45%)
Ships in 1-3 Business Days
Product Specifications
- Other Name: Water Pump, Water Pump Assembly
- Replaces: 12645176, 12637479, 12618472, 12657499
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2010-2015 Chevrolet Camaro | 2 DOOR CONVERTIBLE, 2 DOOR COUPE, LS 2 DOOR COUPE, LT 2 DOOR CONVERTIBLE, LT 2 DOOR COUPE | 6 Cyl 3.6L
View related parts
Chevrolet Camaro Engine Coolant Pump Kit
Part Number: 12507784
Product Specifications
- Other Name: Pump Kit,Water ; Pump Kit, Engine Coolant; Water Pump, Water Pump Assembly
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1985-1986 Chevrolet Camaro | 2 DOOR | 4 Cyl 2.5L
View related parts
Chevrolet Camaro Water Pump Assembly
Part Number: 10089659
Product Specifications
- Other Name: Pump Asm,Water; Water Pump
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1982-1984 Chevrolet Camaro | 2 DOOR, 4 DOOR | 6 Cyl 2.8L
View related parts
Chevrolet Camaro Water Pump Kit
Part Number: 12482696
Product Specifications
- Other Name: Pump Kit,Water
- Replaces: 10174860
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1985-1989 Chevrolet Camaro | 2 DOOR, RS 2 DOOR, RS CONVERTIBLE | 6 Cyl 2.8L
View related parts
Chevrolet Camaro Engine Coolant Pump
Part Number: 12482694
Product Specifications
- Other Name: Pump Kit,Water ; Pump, Engine Coolant; Water Pump, Water Pump Assembly
- Replaces: 10132880
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1985-1992 Chevrolet Camaro | 2 DOOR, RS 2 DOOR, RS CONVERTIBLE | 6 Cyl 2.8L, 6 Cyl 3.1L
View related parts
Chevrolet Camaro Engine Coolant Pump Kit
Part Number: 12482692
Product Specifications
- Other Name: Pump Kit,Water; Water Pump, Water Pump Assembly
- Replaces: 12520914
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1993-1995 Chevrolet Camaro | 2 DOOR, CONVERTIBLE | 6 Cyl 3.4L

Chevrolet Camaro Water Pump

The Water Pump in Chevrolet Camaro vehicles is a vital component that is responsible for ensuring adequate cooling of the engine through circulation of water anti-freeze from the radiator to the engine block. In this process, it is also enabled the fluid to take and master the heat produced by the engine when running. The Water Pump is still another component that has a working relationship with the radiator and the cooling fan to help cool the engine. Over the years that have passed with the Camaro model, the type of Water Pumps has also recurrently changed to suit the type of engines which have been used in the car model.

Each OEM Chevrolet Camaro Water Pump we offer is competitively priced and comes with the assurance of the manufacturer's warranty for the part. Furthermore, we guarantee the speedy delivery of your orders right to your doorstep. Our hassle-free return policy is also in place for your peace of mind.

Chevrolet Camaro Water Pump Parts Questions & Experts Answers

Engine Coolant Pump Kit
12657499
Q: How to replace a water pump in a Chevrolet Camaro?
A: Disconnect the cable from the negative battery terminal. Raise the vehicle and support it securely on jackstands. Remove the under-vehicle splash shield. Drain the cooling system. If the coolant is relatively new and in good condition, save it and reuse it. Once the coolant has drained, lower the vehicle. Remove the drivebelt. Remove the air filter housing and air intake duct/resonator. For V6 engines, use a pin spanner or strap wrench to hold the water pump pulley from turning, and remove the pulley mounting bolts and pulley. Remove the bolts attaching the water pump to the timing chain cover and remove the pump from the engine. If the water pump is stuck, gently tap it with a soft-faced hammer to break the seal. Clean the bolt threads and the threaded holes in the engine and remove all corrosion and sealant. Remove all traces of old gasket material from the sealing surfaces. For V8 engines, remove the engine cover. On non-supercharged models, remove the drivebelt tensioner and the idler pulley mounting bolt and pulley. On supercharged models, remove the supercharger drivebelt and tensioner, then remove the tensioner bracket bolts and bracket. Disconnect and remove the hoses to the water pump. Unbolt and remove the water pump from the front of the engine. It may be necessary to tap the pump with a soft-face hammer to break the gasket seal. To install, remove the gaskets from the engine, then compare the new pump and replacement gaskets to the old ones to make sure that they're identical. Apply a thin film of RTV sealant to hold the new gasket in place during installation. O-rings should be coated with clean coolant. Make sure the gasket is correctly positioned on the water pump and the mating surfaces are clean and free of old gasket material. Carefully mate the pump to the water pump housing. On V6 models, install the bolts and, following the recommended sequence, tighten the bolts to the torque. On V8 models, install the water pump bolts and tighten them, a little at a time, to the torque. The remainder of installation is the reverse of removal. Refill the cooling system. Operate the engine to check for leaks.
