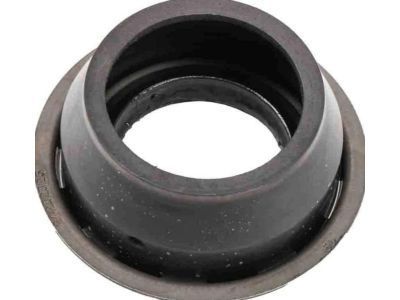

GMC 24232325 Seal,Propeller Shaft Front Slip Yoke Oil(Booted)

You can Select Your Vehicle to check if 24232325 fits your vehicle.

Oil leaks frequently occur due to wear of the extension housing oil seal and bushing (if equipped), or the speedometer drive gear oil seal and o-ring. Replacement of these seals is relatively easy since the repairs can usually be performed without removing the transmission from the vehicle. The extension housing oil seal is located at the extreme rear of the transmission, where the driveshaft is attached. If leakage at the seal is suspected, raise the vehicle and support it securely on jack stands. If the seal is leaking, transmission lubricant will be built up on the front of the driveshaft and may be dripping from the rear of the transmission. To remove the oil seal and bushing, remove the driveshaft and carefully tap the dust shield (if equipped) to the rear and remove it from the transmission. On cast iron case (heavy duty) five-speed manual transmissions, remove the nut and U-joint flange. Using a screwdriver or seal removal tool, carefully pry the oil seal and bushing (if equipped) out of the rear of the transmission, being careful not to damage the splines on the transmission output shaft. If the oil seal and bushing cannot be removed with a screwdriver or pry bar, a special oil seal removal tool will be required. To install the new oil seal and bushing, use a large section of pipe or a very large deep socket as a drift and drive it into the bore squarely, making sure it's completely seated. Install a new bushing using the same method. Reinstall the U-joint flange and nut (if equipped) and tighten the nut to the torque specifications. Reinstall the dust shield (if equipped) by carefully tapping it into place. Finally, lubricate the splines of the transmission output shaft and the outside of the driveshaft sleeve yoke with lightweight grease, then install the driveshaft, being careful not to damage the lip of the new seal.

The seal can be removed by prying it out with a screwdriver or seal removal tool, being careful not to damage the seal bore.

The vehicle must be raised and supported securely on jackstands.

The extension housing oil seal is located at the rear of the transmission where the driveshaft is attached.

It is important not to damage the splines on the transmission output shaft.

Oil leaks in a transmission frequently occur due to wear of the extension housing oil seal and bushing (if equipped), or the speedometer drive gear oil seal and o-ring.

The driveshaft must be removed.

The old oil seal should be carefully pried out of the rear of the transmission using a seal removal tool or a large screwdriver, taking care not to damage the splines on the transmission output shaft.

Before installing the new seal, the lips should be lubricated with petroleum jelly.

Before installing the new seal, the lips should be lubricated with petroleum jelly.

Reinstall the U-joint flange and nut (if equipped) and tighten the nut to the torque specifications. Reinstall the dust shield (if equipped) by carefully tapping it into place.

Before installing the new seal, the lips should be lubricated with petroleum jelly.

The new seal should be driven into place with a seal driver or large socket, making sure that the outside diameter of the socket is slightly smaller than the outside diameter of the seal.

The oil seal can be carefully pried out of the rear of the transmission using a seal removal tool or large screwdriver.

The splines of the transmission output shaft and the outside of the driveshaft yoke should be lubricated with lightweight grease.

After raising the vehicle, the skid plate should be removed.

Yes, replacement of these seals is relatively easy since the repairs can usually be performed without removing the transmission from the vehicle.

The oil seal can be carefully pried out of the rear of the transmission using a seal removal tool or large screwdriver.

This is for the rear of the transmission
