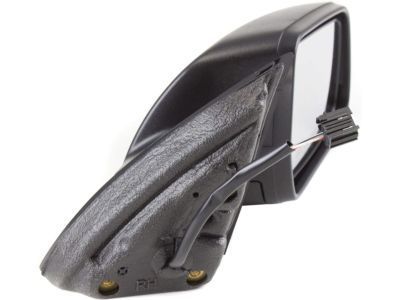

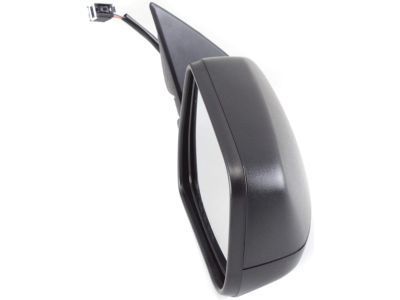

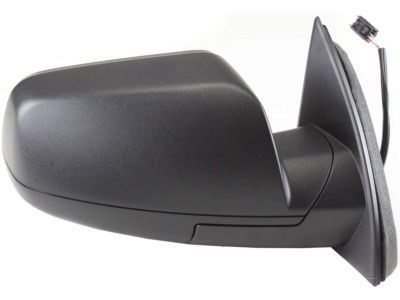

GMC 23467283 Mirror Assembly, Outside Rear View *Black

You can Select Your Vehicle to check if 23467283 fits your vehicle.

These models are equipped with a Body Control Module (BCM). Several systems are linked to a centralized control module that allows simple and accurate troubleshooting, but only with a professional-grade scan tool. The Body Control Module governs the door locks, the power windows, the ignition lock and security system, the Interior lights, the Daytime Running Lights system, the hom, the windshield wipers, the heating/air conditioning system and the power mirrors. In the event of malfunction with this system, have the vehicle diagnosed by a dealership service department or other qualified automotive repair facility. The electric rear view mirrors use two motors to move the glass; one for up and down adjustments and one for left-right adjustments. The control switch has a selector portion which sends voltage to the left or right side mirror. With the Ignition in the ACC position and the engine OFF, roll down the windows and operate the mirror control switch through all functions (left-right and up-down) for both the left and right side mirrors. Listen carefully for the sound of the electric motors running In the mirrors. If the motors can be heard but the mirror glass doesn't move, there's probably a problem with the drive mechanism inside the mirror. Power mirrors have no user-serviceable parts Inside a defective mirror must be replaced as a unit. If the mirrors don't operate and no sound comes from the mirrors, check the fuses. If the fuses are OK, remove the mirror control switch. Have the switch continuity checked by a dealer service department or other qualified shop. Check the ground connections. If the mirror still doesn't work, remove the mirror and check the wires at the mirror for voltage. If there's not voltage in each switch position, check the circuit between the mirror and control switch for opens and shorts. If there's voltage, remove the mirror and test it off the vehicle with jumper wires. Replace the mirror if it falls this test.

To lift the mirror upwards towards the top of the glass, you need to remove the mirror set screw and carefully lift the mirror upwards.

If the mirrors don't operate as expected, you can perform several checks:With the ignition in the ACC position and the engine off, operate the mirror control switch through all functions for both left and right side mirrors. Listen for the sound of the electric motors inside the mirrors.If you hear the motors but the mirror glass doesn't move, there might be a problem with the drive mechanism inside the mirror. In such cases, the defective mirror must be replaced as a unit.If there is no sound coming from the mirrors and they don't operate, first check the fuses. If the fuses are okay, proceed with further diagnosis.Remove the mirror control switch and have its continuity checked by a dealer service department or qualified shop.Check the ground connections.If the mirror still doesn't work, remove the mirror and check the wires at the mirror for voltage. If there's no voltage in each switch position, check the circuit between the mirror and control switch for opens and shorts.If there is voltage, remove the mirror and test it off the vehicle with jumper wires. Replace the mirror if it fails this test.

To remove the inside mirror from its mount, you need to remove the setscrew located at the base of the mirror stalk and then slide the mirror upwards.
