How do you remove and install mirrors on a Chevrolet Equinox and GMC Terrain?

For outside mirrors,Remove the small interior trim panel that covers the mirror's mounting nuts. On 2010 and later Equinox models, the door panel and door window frame panel must be removed to access the electrical connectors for the mirrors. Remove the small insulator, then disconnect the electrical connector from the back of the mirror. Remove the mirror mounting nuts, then detach it from the vehicle. Installation is the reverse of removal. Inside mirror: Disconnect the electrical connector from the mirror, if equipped. Remove the setscrew located at the base of the mirror stalk. Slide the mirror upwards to remove it from its mount. Remove the mirror set screw, then carefully lift the mirror upwards towards the top of the glass. If the mount plate itself has come off the windshield, adhesive kits are available at auto parts stores to resecure it. Follow the instructions included with the kit. Be sure to position the flanged part of the mount away from the glass and the narrower part pointing up.

What are the troubleshooting steps for a malfunctioning Body Control Module and power mirrors on Chevrolet Equinox and GMC Terrain?

These models are equipped with a Body Control Module (BCM). Several systems are linked to a centralized control module that allows simple and accurate troubleshooting, but only with a professional-grade scan tool. The Body Control Module governs the door locks, the power windows, the ignition lock and security system, the Interior lights, the Daytime Running Lights system, the hom, the windshield wipers, the heating/air conditioning system and the power mirrors. In the event of malfunction with this system, have the vehicle diagnosed by a dealership service department or other qualified automotive repair facility. The electric rear view mirrors use two motors to move the glass; one for up and down adjustments and one for left-right adjustments. The control switch has a selector portion which sends voltage to the left or right side mirror. With the Ignition in the ACC position and the engine OFF, roll down the windows and operate the mirror control switch through all functions (left-right and up-down) for both the left and right side mirrors. Listen carefully for the sound of the electric motors running In the mirrors. If the motors can be heard but the mirror glass doesn't move, there's probably a problem with the drive mechanism inside the mirror. Power mirrors have no user-serviceable parts Inside a defective mirror must be replaced as a unit. If the mirrors don't operate and no sound comes from the mirrors, check the fuses. If the fuses are OK, remove the mirror control switch. Have the switch continuity checked by a dealer service department or other qualified shop. Check the ground connections. If the mirror still doesn't work, remove the mirror and check the wires at the mirror for voltage. If there's not voltage in each switch position, check the circuit between the mirror and control switch for opens and shorts. If there's voltage, remove the mirror and test it off the vehicle with jumper wires. Replace the mirror if it falls this test.

Genuine Chevrolet Equinox Side View Mirrors

Outside Rear View Mirror

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

61 Side View Mirrors found

View related parts
Chevrolet Equinox Mirror Assembly, Outside Rear View *Service Primer
Part Number: 23467297
$122.15 MSRP: $175.54
You Save: $53.39 (31%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: MIRROR, Inside/Outside Rear View; Mirror Assembly
- Position: Rear
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2015-2017 Chevrolet Equinox | LS SUV, LT SUV, LTZ SUV | 4 Cyl 2.4L, 6 Cyl 3.6L
View related parts
Chevrolet Equinox Mirror Assembly, Inside Rear View
Part Number: 13585948
$53.26 MSRP: $79.63
You Save: $26.37 (34%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Mirror, Rear View Mirror, Inside & Outside; Mirror, Mirror Inside
- Position: Rear
- Replaced by: 13524917
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2010-2017 Chevrolet Equinox | LS SUV, LT SUV, LTZ SUV | 4 Cyl 2.4L, 6 Cyl 3.0L, 6 Cyl 3.6L
View related parts
Chevrolet Equinox Mirror Assembly, O/S Rr View (W/O Cvr)
Part Number: 84604245
$212.05 MSRP: $318.46
You Save: $106.41 (34%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Mirror, Mirror Assembly
- Position: Rear
- Replaces: 84404690, 84225383
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2018-2021 Chevrolet Equinox | 4 DOOR BASE (GMNA), 4 DOOR LT (GMNA) | 4 Cyl 1.5L, 4 Cyl 1.6L Diesel, 4 Cyl 2.0L
View related parts
Chevrolet Equinox Mirror Assembly, Inside Rear View
Part Number: 25603373
$53.26 MSRP: $79.63
You Save: $26.37 (34%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: MIRROR, Inside/Outside Rear View; Mirror, Mirror Inside
- Position: Rear
- Replaced by: 13524917
- Replaces: 10207143, 10383112, 10235224, 10240815, 10340721
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2005-2009 Chevrolet Equinox | SS SUV AWD, SS SUV FWD, SUV AWD, SUV FWD, SUV LT AWD, SUV LT FWD | 6 Cyl 3.4L, 6 Cyl 3.6L
View related parts
Chevrolet Equinox Mirror, Outside Rear View (Reflector Glass Only)
Part Number: 22629357
$58.85 MSRP: $84.57
You Save: $25.72 (31%)
ADD TO CART
Product Specifications
- Other Name: GLASS, Inside/Outside Rear View; Mirror Glass
- Position: Rear
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2005-2009 Chevrolet Equinox | SS SUV AWD, SS SUV FWD, SUV AWD, SUV FWD, SUV LT AWD, SUV LT FWD | 6 Cyl 3.4L, 6 Cyl 3.6L
View related parts
Chevrolet Equinox Mirror Assembly, Outside Rear View *Service Primer
Part Number: 23467296
$140.21 MSRP: $220.49
You Save: $80.28 (37%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: MIRROR, Inside/Outside Rear View; Mirror Assembly
- Position: Rear
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2015-2017 Chevrolet Equinox | LT SUV | 4 Cyl 2.4L, 6 Cyl 3.6L
View related parts
Chevrolet Equinox Mirror Assembly, O/S Rr View (W/O Cvr)
Part Number: 84690968
$314.83 MSRP: $472.81
You Save: $157.98 (34%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Mirror, Mirror Assembly
- Position: Rear
- Replaces: 84404674, 84258390, 84225391
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2018 Chevrolet Equinox | 4 DOOR LTZ (GMNA) | 4 Cyl 1.5L, 4 Cyl 2.0L
View related parts

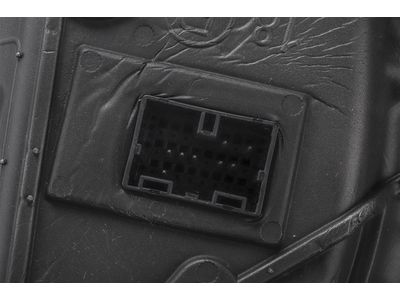

Chevrolet Equinox Mirror Assembly, O/S Rr View (W/O Cvr)
Part Number: 84604247
$267.44 MSRP: $401.65
You Save: $134.21 (34%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Mirror, Mirror Assembly
- Position: Rear
- Replaces: 84404686, 84545950, 84225387
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2018-2019 Chevrolet Equinox | 4 DOOR LT (GMNA) | 4 Cyl 1.5L, 4 Cyl 1.6L Diesel, 4 Cyl 2.0L
View related parts
Chevrolet Equinox Mirror Assembly, O/S Rr View (W/O Cvr)
Part Number: 84604243
$198.23 MSRP: $300.41
You Save: $102.18 (35%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Mirror, Mirror Assembly
- Position: Rear
- Replaces: 84404689, 84225382, 84322527
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2018-2021 Chevrolet Equinox | 4 DOOR BASE (GMNA), 4 DOOR LT (GMNA) | 4 Cyl 1.5L, 4 Cyl 1.6L Diesel, 4 Cyl 2.0L
View related parts
Chevrolet Equinox Mirror Assembly, O/S Rr View (W/O Cvr)
Part Number: 84604246
$246.03 MSRP: $369.49
You Save: $123.46 (34%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Position: Rear
- Replaces: 84545949, 84225386, 84404685
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2018-2019 Chevrolet Equinox | 4 DOOR LT (GMNA) | 4 Cyl 1.5L, 4 Cyl 1.6L Diesel, 4 Cyl 2.0L
View related parts
Chevrolet Equinox Mirror Assembly, O/S Rr View (W/O Cvr)
Part Number: 84604250
$262.20 MSRP: $393.78
You Save: $131.58 (34%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Mirror Assembly
- Position: Rear
- Replaces: 84545953, 84225389
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2018-2021 Chevrolet Equinox | 4 DOOR LT (GMNA), 4 DOOR LTZ (GMNA) | 4 Cyl 1.5L, 4 Cyl 1.6L Diesel, 4 Cyl 2.0L
View related parts
Chevrolet Equinox Mirror, Outside Rear View (Reflector Glass & Backing Plate)
Part Number: 23406427
$93.82 MSRP: $140.26
You Save: $46.44 (34%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Mirror, O/S Rr View (Refl Glass & Bkg Plt); Mirror Glass
- Position: Rear
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2018-2021 Chevrolet Equinox | 4 DOOR BASE (GMNA), 4 DOOR LT (GMNA) | 4 Cyl 1.5L, 4 Cyl 1.6L Diesel, 4 Cyl 2.0L
View related parts
Chevrolet Equinox Mirror Assembly, Outside Rear View *Ex Brt Chrom
Part Number: 22818267
$192.98 MSRP: $303.49
You Save: $110.51 (37%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: MIRROR, Inside/Outside Rear View; Mirror Assembly
- Position: Rear
- Replaces: 20835836, 20858712
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2010-2014 Chevrolet Equinox | LT SUV, LTZ SUV | 4 Cyl 2.4L, 6 Cyl 3.0L, 6 Cyl 3.6L
View related parts
Chevrolet Equinox Mirror Assembly, Outside Rear View *Service Primer
Part Number: 22818288
$218.32 MSRP: $343.34
You Save: $125.02 (37%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: MIRROR, Inside/Outside Rear View; Mirror Assembly
- Position: Rear
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2011-2014 Chevrolet Equinox | LT SUV | 4 Cyl 2.4L, 6 Cyl 3.0L, 6 Cyl 3.6L
View related parts
Chevrolet Equinox Mirror, Outside Rear View (Reflector Glass & Backing Plate)
Part Number: 23121712
$58.66 MSRP: $87.70
You Save: $29.04 (34%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Mirror, O/S Rr View (Refl Glass & Bkg Plt); Mirror Glass
- Position: Rear
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2018-2021 Chevrolet Equinox | 4 DOOR LT (GMNA), 4 DOOR LTZ (GMNA) | 4 Cyl 1.5L, 4 Cyl 1.6L Diesel, 4 Cyl 2.0L
View related parts
Chevrolet Equinox Mirror Assembly, Outside Rear View *Ex Brt Chrom
Part Number: 22818268
$260.13 MSRP: $409.10
You Save: $148.97 (37%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: MIRROR, Inside/Outside Rear View; Mirror Assembly
- Position: Rear
- Replaces: 20835837, 20858713
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2010-2014 Chevrolet Equinox | LT SUV, LTZ SUV | 4 Cyl 2.4L, 6 Cyl 3.0L, 6 Cyl 3.6L
View related parts
Chevrolet Equinox Mirror Assembly, O/S Rr View (W/O Cvr)
Part Number: 84626243
$268.49 MSRP: $403.21
You Save: $134.72 (34%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Mirror, Mirror Assembly
- Position: Rear
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2020-2021 Chevrolet Equinox | 4 DOOR BASE (GMNA), 4 DOOR LT (GMNA) | 4 Cyl 1.5L, 4 Cyl 2.0L
View related parts
Chevrolet Equinox Mirror Assembly, O/S Rr View (W/O Cvr)
Part Number: 84690966
$319.67 MSRP: $480.08
You Save: $160.41 (34%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Mirror, Mirror Assembly
- Position: Rear
- Replaces: 84322535, 84404673
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2018 Chevrolet Equinox | 4 DOOR LTZ (GMNA) | 4 Cyl 1.5L, 4 Cyl 2.0L
View related parts
Chevrolet Equinox Mirror, Outside Rear View (Reflector Glass & Backing Plate)
Part Number: 23406428
$93.82 MSRP: $140.26
You Save: $46.44 (34%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Mirror, O/S Rr View (Refl Glass & Bkg Plt); Mirror Glass
- Position: Rear
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2018-2021 Chevrolet Equinox | 4 DOOR BASE (GMNA), 4 DOOR LT (GMNA) | 4 Cyl 1.5L, 4 Cyl 1.6L Diesel, 4 Cyl 2.0L
View related parts
Chevrolet Equinox Outside Rearview Mirror Covers in Black
Part Number: 84235862
$78.38 MSRP: $95.00
You Save: $16.62 (18%)
Product Specifications
- Other Name: Mirror Kit, O/S Rr View *Black)(Instat
- Replaces: 23505713
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2018-2021 Chevrolet Equinox | 4 DOOR BASE (GMNA), 4 DOOR LT (GMNA), 4 DOOR LTZ (GMNA) | 4 Cyl 1.5L, 4 Cyl 1.6L Diesel, 4 Cyl 2.0L

| Page 1 of 4 |Next >

1-20 of 61 Results

Chevrolet Equinox Side View Mirrors Parts Questions & Experts Answers

Mirror Assembly, Outside Rear View *Chrome M
23219862
Q: How do you remove and install mirrors on a Chevrolet Equinox and GMC Terrain?
A: For outside mirrors,Remove the small interior trim panel that covers the mirror's mounting nuts. On 2010 and later Equinox models, the door panel and door window frame panel must be removed to access the electrical connectors for the mirrors. Remove the small insulator, then disconnect the electrical connector from the back of the mirror. Remove the mirror mounting nuts, then detach it from the vehicle. Installation is the reverse of removal. Inside mirror: Disconnect the electrical connector from the mirror, if equipped. Remove the setscrew located at the base of the mirror stalk. Slide the mirror upwards to remove it from its mount. Remove the mirror set screw, then carefully lift the mirror upwards towards the top of the glass. If the mount plate itself has come off the windshield, adhesive kits are available at auto parts stores to resecure it. Follow the instructions included with the kit. Be sure to position the flanged part of the mount away from the glass and the narrower part pointing up.
Mirror Assembly, Outside Rear View *Black
23467283
Q: What are the troubleshooting steps for a malfunctioning Body Control Module and power mirrors on Chevrolet Equinox and GMC Terrain?
A: These models are equipped with a Body Control Module (BCM). Several systems are linked to a centralized control module that allows simple and accurate troubleshooting, but only with a professional-grade scan tool. The Body Control Module governs the Door Locks, the power windows, the ignition lock and security system, the Interior lights, the Daytime Running Lights system, the hom, the windshield wipers, the heating/air conditioning system and the power mirrors. In the event of malfunction with this system, have the vehicle diagnosed by a dealership service department or other qualified automotive repair facility. The electric rear view mirrors use two motors to move the glass; one for up and down adjustments and one for left-right adjustments. The control switch has a selector portion which sends voltage to the left or right side mirror. With the Ignition in the ACC position and the engine OFF, roll down the windows and operate the mirror control switch through all functions (left-right and up-down) for both the left and right side mirrors. Listen carefully for the sound of the electric motors running In the mirrors. If the motors can be heard but the mirror glass doesn't move, there's probably a problem with the drive mechanism inside the mirror. Power mirrors have no user-serviceable parts Inside a defective mirror must be replaced as a unit. If the mirrors don't operate and no sound comes from the mirrors, check the Fuses. If the fuses are OK, remove the mirror control switch. Have the switch continuity checked by a dealer service department or other qualified shop. Check the ground connections. If the mirror still doesn't work, remove the mirror and check the wires at the mirror for voltage. If there's not voltage in each switch position, check the circuit between the mirror and control switch for opens and shorts. If there's voltage, remove the mirror and test it off the vehicle with jumper wires. Replace the mirror if it falls this test.
