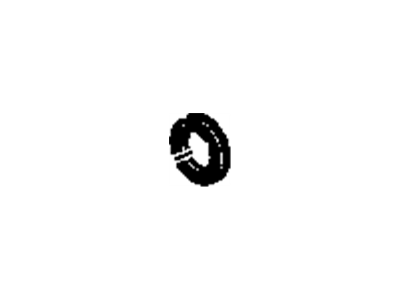

GM 12608750 Seal,Crankshaft Front Oil

You can Select Your Vehicle to check if 12608750 fits your vehicle.

Further, time belt and crankshaft drive gear must be dismantled. With a screwdriver or hook tool remove the seal being gentle so as not to harm the oil pump cover bore or the nose and sealing surface on the crankshaft. There is also another method in which make a hole on each side of the seal and then put the self-tapping screw and this will pull the seal out without the pry bar. Clean and lightly oil the sealing surfaces of the centre portion of the oil pump cover and at the crankshaft accordingly. Rub some clean engine oil on the lip of the new seal, which comes in contact with the crankshaft. The new seal is to be installed into the oil pump cover beginning in the center of the seal; once in place, the use of a seal driver or a socket of the appropriate size can be used to push the seal into the engine cover, while being careful to ensure that it is as square with the cover as possible when it is in place. Last but not the least, fit the crank shaft drive gear and the timing belt.

Remove the crankshaft pulley. Note how the seal is installed-the new one must be installed to the same depth and facing the same way. Carefully pry the seal out of the cover. If you don't have a seal removal tool, thread a self tapping screw partially into the seal, then use pliers as a lever to pull it from the engine. If the seal is being replaced with the timing chain cover removed, support the cover on top of two blocks of wood and drive the seal out from the rear with a hammer and punch. Caution: Be careful not to scratch, gouge or distort the area that the seal fits into or a leak will develop. Installation: Apply clean engine oil or multi-purpose grease to the outer edge of the new seal, then install it in the cover with the lip (spring side) facing IN. Drive the seal into place with a seal driver or a large socket and a hammer. Make sure the seal enters the bore squarely and stop when the front face is at the proper depth. Note: Don't let oil get on the rubber part of the seal or on the part of the crankshaft pulley that touches the seal. The seal must be installed dry. Check the surface on the pulley hub that the seal rides on. If the surface has been grooved from long-time contact with the seal, the pulley should be replaced with a new one. Lubricate only the inside of the pulley hub with clean engine oil and install the crankshaft pulley. The remainder of installation is the reverse of removal.

To remove the crankshaft pulley, first disconnect the cable from the negative battery terminal and remove the drivebelt. Raise the vehicle and support it securely on jackstands, then take off the splash shield from below the engine compartment by removing its mounting fasteners. Use a breaker bar and socket to remove the crankshaft pulley center bolt, employing a large pin spanner to prevent the pulley from rotating while loosening the bolt; discard the old bolt and obtain a new one for installation. It may be necessary to lock the pulley in position using a strap wrench or a large pin spanner, and wrapping an old drivebelt around the pulley can provide a better grip if using a strap wrench. Slide the puller off the nose of the crankshaft, and if the pulley is stuck, use a puller that bolts to the three threaded holes in the pulley hub, along with a spacer like a deep socket to avoid damaging the crankshaft. Next, use a seal puller to remove the crankshaft front oil seal, taking care not to damage the crankshaft or the seal bore; a screwdriver wrapped with tape can be used as an alternative. Clean the seal bore and check for nicks or gouges, and examine the hub area for signs of abnormal wear or scoring. For installation, coat the lip of the new seal with clean engine oil and drive it into the bore with a seal driver or a socket slightly smaller in diameter than the seal, ensuring the open side of the seal faces into the engine. Lubricate the sealing surface of the hub with clean engine oil, then install the crankshaft pulley/damper using a special installation tool, avoiding the use of a hammer. Install a new center bolt and tighten it to the specified torque, ensuring a new pulley bolt is used. The remainder of the installation follows the reverse order of removal, and finally, reconnect the battery.

To remove the crankshaft pulley, first disconnect the cable from the negative battery terminal and remove the drivebelt. Raise the vehicle and support it securely on jackstands, then take off the splash shield from below the engine compartment by removing its mounting fasteners. Use a breaker bar and socket to remove the crankshaft pulley center bolt, employing a large pin spanner to prevent the pulley from rotating while loosening the bolt; discard the old bolt and obtain a new one for installation. It may be necessary to lock the pulley in position using a strap wrench or a large pin spanner, and wrapping an old drivebelt around the pulley can provide a better grip if using a strap wrench. Slide the puller off the nose of the crankshaft, and if the pulley is stuck, use a puller that bolts to the three threaded holes in the pulley hub, along with a spacer like a deep socket to avoid damaging the crankshaft. Next, use a seal puller to remove the crankshaft front oil seal, taking care not to damage the crankshaft or the seal bore; a screwdriver wrapped with tape can be used as an alternative. Clean the seal bore and check for nicks or gouges, and examine the hub area for signs of abnormal wear or scoring. For installation, coat the lip of the new seal with clean engine oil and drive it into the bore with a seal driver or a socket slightly smaller in diameter than the seal, ensuring the open side of the seal faces into the engine. Lubricate the sealing surface of the hub with clean engine oil, then install the crankshaft pulley/damper using a special installation tool, avoiding the use of a hammer. Install a new center bolt and tighten it to the specified torque, ensuring a new pulley bolt is used. The remainder of the installation follows the reverse order of removal, and finally, reconnect the battery.

Install the special alignment tool (EN47839) on the rear of the crankshaft, attaching it with the two supplied screws. Install the new oil seal housing over the alignment tool and studs onto the rear of the engine block. Remove the guide studs but leave the alignment tool in place.

Apply clean engine oil or multi-purpose grease to the outer edge of the new seal.

Ideally, a seal installation tool should be used to press the new seal into place.

Tighten the upper bolts finger-tight. Most new rear main oil seals and housing assemblies come with a seal protector on the inside running face of the oil seal, which should remain in place until the housing is positioned.

Support the cover on two blocks of wood and drive the seal out from the backside using a hammer and punch, being cautious not to scratch or distort the area where the seal fits to avoid leaks.

Use a screwdriver or hook tool to carefully pry out the seal, taking care not to damage the cylinder block and main bearing bore or the nose and sealing surface of the crankshaft. Alternatively, you can drill a small hole on each side of the seal and insert self-tapping screws to pull the seal out without prying.

Ideally, a seal installation tool should be used.

Carefully pry the oil seal out of the cover with a seal puller or a large screwdriver, ensuring not to damage the crankshaft in the process.

Next, remove the transmission, followed by the flywheel/driveplate and the oil pan.

Drive the seal into place with a large socket and a hammer, or a piece of pipe if a large socket isn't available, ensuring the seal enters the bore squarely.

Remove the transaxle and the driveplate.

Install the two dowels into the oil seal housing bolt holes, then apply a 1/8-inch wide bead of RTV sealant around the sealing area of the oil seal housing, passing on the inside of the bolt holes.

If marked, ensure that the words "THIS SIDE OUT" on the seal face out, toward the rear of the engine.

Carefully pry the old oil seal out of the timing chain cover using a seal puller or a large screwdriver, taking care not to damage the crankshaft or distort the cover.

Lubricate only the inside of the pulley hub with clean engine oil before installing the crankshaft pulley.

The driveplate and oil pan need to be removed.

Apply clean engine oil or multi-purpose grease to the outer edge of the new seal and install it in the cover with the lip facing inward. Use a seal driver or a large socket and hammer to drive it into place, ensuring it enters squarely and is at the correct depth.

If you don't have a seal removal tool, thread a self-tapping screw partially into the seal, then use pliers as a lever to pull it from the engine.

The remainder of the installation follows the reverse order of removal.

Do not remove the protector sleeve or use any lubricant on the new seal.

Check the pulley hub surface for grooves caused by long-term contact with the seal; if damaged, replace the pulley.

Remove the alignment tool.

The crankshaft and seal bore should be cleaned thoroughly and degreased by wiping them with a rag soaked in lacquer thinner or acetone.

The manufacturer recommends removing the oil pan and using special studs EN 46109, seal alignment tool EN 47839, and handle J 42183 to ensure correct alignment of the seal.

Install the new seal over the end of the crankshaft, ensuring the lips point toward the engine, and carefully tap it into place.

Install the crankshaft pulley retaining bolt and tighten it to the specified torque, completing the installation in reverse order of removal.

Support the cover on top of two blocks of wood and drive the seal out from the rear with a hammer and punch.

Remove the cranks aft pulley and note how the seal is installed; the new one must be installed to the same depth and facing the same way.

After disconnecting the battery, raise the vehicle and support it securely on jackstands, then remove the splash shield from below the engine compartment.

The manufacturer recommends using special studs EN 46109, seal alignment tool EN 47839, and handle J 42183 to ensure correct alignment of the seal.
