Part No. & Part Description
Price
Part No. &
Part Description
FITTING, Transmission Oil Cooler
15226661FITTING, TRANS FLUID COOLER PIPE(INCLUDES 6)(PART OF 4)(9/16-18)(3/8 BODY QUICK CONNECT)(AT RADIATOR)(W/BEVELED WASHER)
- Require Quantity:
02
- Package Quantity:
1
15226661FITTING, TRANS FLUID COOLER PIPE(INCLUDES 3)(PART OF 1)(9/16-18)(3/8 BODY QUICK CONNECT)(AT RADIATOR)(W/BEVELED WASHER)
- Require Quantity:
02
- Package Quantity:
1
19210848FITTING, TRANS FLUID COOLER PIPE(PART OF 1,23)(INCLUDES 2)(W/O BEVEL WASHER)(ALUMINUM)(W/RETAINER)
- Require Quantity:
02
- Package Quantity:
1
BOLT, Transmission Oil Cooler
11588717BOLT, TRANS FLUID COOLER THERMAL BYPASS VALVE(M6X1X45, 14.2 OUTSIDE DIAMETER)(17.7 THREAD, 8.8 STEEL, M-POINT)(2.383)
- Fitting Vehicle Options:
NF,NH26(LSY)
- Require Quantity:
02
- Package Quantity:
1
11519383BOLT, TRANS FLUID AUXILIARY COOLER(M6X1X23MM 14 THREAD)(HEXAGON HEAD W/CONICAL SPRING WASHER, 17 OUTSIDE DIAMETER, 8.8, M-THROTTLE POSITIONER)(8.900)
- Fitting Vehicle Options:
NH,NJ26
- Require Quantity:
02
- Package Quantity:
1
11588713BOLT, TRANS FLUID COOLER PIPE BRACKET(M8X1X25)(8.900)
- Fitting Vehicle Options:
NH,NJ26
11588713BOLT, TRANS FLUID COOLER PIPE(M8X1X25)(8.900)
- Fitting Vehicle Options:
NF,NH26
11519970BOLT, TRANS FLUID COOLER THERMAL BYPASS VALVE(M6X1X40)(18 THREAD, 14.2 OUTSIDE DIAMETER)(8.900)
- Fitting Vehicle Options:
NH,NJ26(LGX,V08)
- Require Quantity:
02
- Package Quantity:
1
11588716BOLT, TRANS FLUID COOLER THERMAL BYPASS VALVE(M6X1X40)(8.900)
- Fitting Vehicle Options:
NH,NJ26(LGX,V08)
NUT, Transmission Oil Cooler
11507067NUT, TRANS FLUID COOLER PIPE(M6X1)(J-TYPE)(8.921)
- Fitting Vehicle Options:
NF,NH26
- Replaced By:
11548581
11546377NUT, TRANS FLUID COOLER PIPE(M8X1.25)(13MM SOCKET)(9.242)
- Fitting Vehicle Options:
NF,NH,NJ26
11546389NUT, TRANS FLUID AUXILIARY COOLER BRACKET(M6X1)(3.373)
- Fitting Vehicle Options:
NF,NH,NJ26
CAP, Transmission Oil Cooler
15052228CAP, TRANS FLUID COOLER PIPE CONNECT(PART OF 8,10,21,23)(APPROX .18MM DIAMETER)(PLASTIC RETAINER)
15052228CAP, TRANS FLUID COOLER PIPE CONNECT(PART OF 6,15,17,19)(APPROX .18MM DIAMETER)(PLASTIC RETAINER)
15052228CAP, TRANS FLUID COOLER PIPE CONNECT(PART OF 4)(APPROX .18MM DIAMETER)(PLASTIC RETAINER)
SEAL, Transmission Oil Cooler
25874797SEAL, TRANS FLUID COOLER PIPE(PART OF 10)(AT DIFFERENTIAL COOLER)
- Fitting Vehicle Options:
NH,NJ26(LGX)
25874797SEAL, TRANS FLUID COOLER PIPE(PART OF 15)(AT DIFFERENTIAL COOLER)
- Fitting Vehicle Options:
NH,NJ26(LGX)
25874797SEAL, TRANS FLUID COOLER PIPE(PART OF 4)(AT DIFFERENTIAL COOLER)
- Fitting Vehicle Options:
NF,NH26(LSY,M3G)
25874797SEAL, TRANS FLUID COOLER PIPE FITTING(PART OF 11)(AT DIFFERENTIAL COOLER)
- Fitting Vehicle Options:
NF,NH26(LSY)
- Require Quantity:
02
- Package Quantity:
1
24284737SEAL, TRANS FLUID COOLER PIPE FITTING(O RING)(PART OF 19)
- Fitting Vehicle Options:
NH26(LGX,M3W,FWD,FXC)
24284737SEAL, TRANS FLUID COOLER PIPE FITTING(O RING)(PART OF 14)
- Fitting Vehicle Options:
NH26(LGX,M3W,FWD,FXC)
CLIP, Transmission Oil Cooler
11610677CLIP, TRANS FLUID AUXILIARY COOLER PIPE(W/INSERT,HOLDS TWO 9.5 DIAMETER TUBES,FITS 8.0 DIAMETER HOLE)
- Fitting Vehicle Options:
NF,NH26(LSY)
- Replaced By:
11546932
11610677CLIP, TRANS FLUID AUXILIARY COOLER PIPE(W/INSERT,HOLDS TWO 9.5 DIAMETER TUBES,FITS 8.0 DIAMETER HOLE)
- Fitting Vehicle Options:
NH,NJ26(LGX)
- Replaced By:
11546932
25938657CLIP, TRANS FLUID COOLER PIPE(CLIP,HOLDS TWO 9.5MM DIAMETER TUBES,M6 STUD MOUNT)(3.162)
- Fitting Vehicle Options:
NH,NJ26

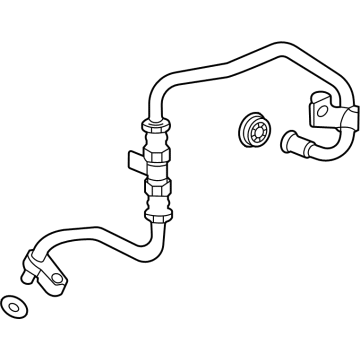

PIPE, Transmission Oil Cooler
23100571PIPE, TRANS FLUID COOLER(INCLUDES 7)
- Fitting Vehicle Options:
NH,NJ26(LGX,V08)
24295491PIPE, AUTOMATIC TRANSMISSION FLUID COOLING HEAT EXCHANGER INLET(INCLUDES 6,9)
- Fitting Vehicle Options:
NF,NH26(LSY,M3G)
- Replaced By:
86584619
84132342PIPE, TRANS FLUID AUXILIARY COOLER OUTLET(INCLUDES 4)
- Fitting Vehicle Options:
NH,NJ26(LGX)(EXC V08)
84132343PIPE, TRANS FLUID AUXILIARY COOLER INLET(INCLUDES 4)
- Fitting Vehicle Options:
NH,NJ26(LGX)(EXC V08)
84211763PIPE, TRANS FLUID COOLER INLET(INCLUDES 7)
- Fitting Vehicle Options:
NH,NJ26(LGX)(EXC V08)
84211763PIPE, TRANS FLUID COOLER INLET(INCLUDES 4)
- Fitting Vehicle Options:
NH,NJ26(LGX)(EXC V08)
84211765PIPE, TRANS FLUID COOLER OUTLET(INCLUDES 7,15)
- Fitting Vehicle Options:
NH,NJ26(LGX)(EXC V08)
- Replaced By:
86584620
84211765PIPE, TRANS FLUID COOLER OUTLET(INCLUDES 4,10)
- Fitting Vehicle Options:
NH,NJ26(LGX)(EXC V08)
- Replaced By:
86584620
84389087PIPE, TRANS FLUID COOLER INLET(INCLUDES 7)
- Fitting Vehicle Options:
NH,NJ26(LGX,V08)
84389088PIPE, TRANS FLUID COOLER OUTLET(INCLUDES 7,15)
- Fitting Vehicle Options:
NH,NJ26(LGX,V08)
- Replaced By:
86584621
84663281PIPE, TRANS FLUID COOLER INLET & OUTLET(INCLUDES 10)
- Fitting Vehicle Options:
NF,NH26(LSY)
- Replaced By:
84964982
84964982PIPE, TRANS FLUID COOLER INLET & OUTLET(INCLUDES 10)
- Fitting Vehicle Options:
NF,NH26(LSY)
STUD, Transmission Oil Cooler
24238097STUD, TRANS FLUID COOLER PIPE(M8X1.25X17,M8X1.25X28,57 OAL,9.8,E-7 EXTERNAL TORX)
- Fitting Vehicle Options:
NH26(LGX,M3W,FWD,FXC)
24238097STUD, TRANS FLUID COOLER PIPE(PART OF 16)(M8X1.25X17,M8X1.25X28,57 OAL,9.8,E-7 EXTERNAL TORX)
- Fitting Vehicle Options:
NF,NH26(LSY,M3G,FHB,FWD)
CONNECTOR, Transmission Oil Cooler
24284114CONNECTOR, TRANS FLUID COOLER PIPE(INCLUDES 17,18)(CONNECT ON TRANSAXLE)(W/O RETAINER)
- Fitting Vehicle Options:
NH26(LGX,M3W,FWD,FXC)
24284114CONNECTOR, TRANS FLUID COOLER PIPE(INCLUDES 12,13)(CONNECT ON TRANSAXLE)(W/O RETAINER)
- Fitting Vehicle Options:
NH26(LGX,M3W,FWD,FXC)
24284114CONNECTOR, TRANS FLUID COOLER PIPE(INCLUDES 3)(CONNECT ON TRANSAXLE)(W/O RETAINER)
- Fitting Vehicle Options:
NF,NH26(LSY,M3G,FHB,FWD)
RETAINER, Transmission Oil Cooler
24288159RETAINER, TRANS FLUID COOLER PIPE(PART OF 19)(OUTSIDE DIAMETER 17.4MM)(EXPANDING SPRING WIRE)(5.535)
24288159RETAINER, TRANS FLUID COOLER PIPE(PART OF 1,3,23)(OUTSIDE DIAMETER 17.4MM)(EXPANDING SPRING WIRE)(5.535)
24288159RETAINER, TRANS FLUID COOLER PIPE(PART OF 4,5)(OUTSIDE DIAMETER 17.4MM)(EXPANDING SPRING WIRE)(5.535)
24288159RETAINER, TRANS FLUID COOLER PIPE(PART OF 1,2)(OUTSIDE DIAMETER 17.4MM)(EXPANDING SPRING WIRE)(5.535)
24288159RETAINER, TRANS FLUID COOLER PIPE(PART OF 14)(OUTSIDE DIAMETER 17.4MM)(EXPANDING SPRING WIRE)(5.535)
84664114RADIATOR, (CODE AC7W)(INCLUDES 2,3)(SEE GROUP 01 "RADIATOR ASM" FOR DETAILED ILLUSTRATED VIEW)(HAS LOCATING PINION THAT IS 26.6MM)(FOR 1ST DESIGN SEE 84168786)
- Fitting Vehicle Options:
NH,NJ26(LGX)(2ND DES)
- Replaced By:
85557760
84672581RADIATOR, (INCLUDES 2,3)(SEE GROUP 01 "RADIATOR ASM" FOR DETAILED ILLUSTRATED VIEW)(CODE ABLN, AC8N)
- Fitting Vehicle Options:
NF,NH26(LSY)
- Replaced By:
85557761
Genuine GM Parts, the Right Choice
GMPartsGiant.com offers the wholesale prices for genuine 2020
Cadillac XT5 2WD parts. Parts like Automatic Transmission Oil Cooler Pipes are shipped directly from authorized GM dealers and backed by the manufacturer's warranty. Parts fit for the following vehicle options. Engine: 4 Cyl 2.0L, 6 Cyl 3.6L. Model Code: CROSSOVER 4 DOOR, LUXURY CROSSOVER 4 DOOR, SPORT CROSSOVER 4DOOR (GMNA).
