21021808
NUT, Battery Cable, NUT,BATTERY POSITIVE CABLE(TO STARTER)(M8X1.25X6,BRASS)
$2.38 $1.51
1
Add To Cart

10351884

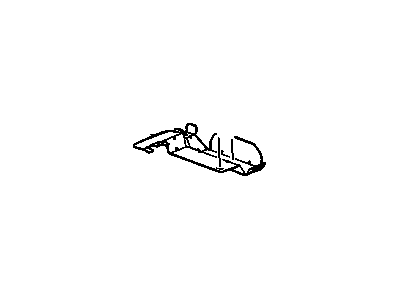

SHIELD, Chassis/Engine Wiring Harness, SHIELD,ENGINE WIRING HARNESS HEAT

15785378

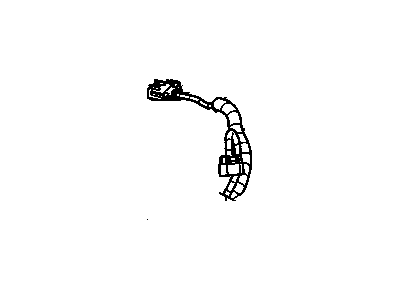

HARNESS, Chassis Wiring, HARNESS,CRANKSHAFT POSITION SENSOR & KNOCK SENSOR WIRING

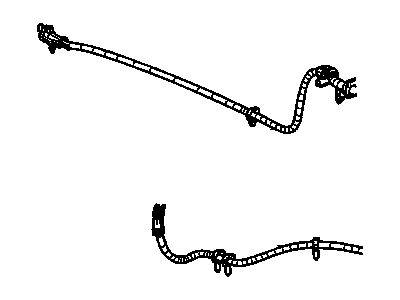

HARNESS, Engine Wiring
20785199
HARNESS, ENGINE WIRING(INCLUDES 3,8)
Fitting Vehicle Options: W(LS4)
20785200
HARNESS, ENGINE WIRING(INCLUDES 13)
- Fitting Vehicle Options: WC(19)(LGD)
20785201
HARNESS, ENGINE WIRING(INCLUDES 13)
- Fitting Vehicle Options: WB(19)(LGD,9C1,9C3)
20785202
HARNESS, ENGINE WIRING(INCLUDES 13)
- Fitting Vehicle Options: W(LZE,JL9), W(LZ4,JL9,NT7,NU1)
20785203
HARNESS, ENGINE WIRING(INCLUDES 13)
- Fitting Vehicle Options: W(LZ4,JL9,NU6)

11517996
NUT, HEX FLANGED HEAD,M10X1.5,11.2 THICK,21.5 OUTSIDE DIAMETER,10,7111M,ALL METAL PREVENT TORQUE(ENGINE WIRING HARNESS GROUND)
$7.38 $4.46
1
Add To Cart

11517996
NUT, HEX FLANGED HEAD,M10X1.5,11.2 THICK,21.5 OUTSIDE DIAMETER,10,7111M,ALL METAL PREVENT TORQUE(ENGINE MOUNT STRUT)
- Require Quantity: 02
- Package Quantity: 1
$7.38 $4.46
1
Add To Cart

11514596
NUT, HEX FLANGED HEAD,M8X1.25,17.9 OUTSIDE DIAMETER,738 THICK,13MM HEXAGON,10, PHOSPHATE ZINC ORGANIC - FLAKE(ENGINE WIRING HARNESS GENERATOR LEAD)(8.915)
$12.60
1
Add To Cart

11515755
BOLT, HEXAGON,M8X1.25X16,15 THREAD,18 O.D.,10.9,7114M(ENGINE WIRING HARNESS GROUND)(TOGETHER WITH 12345493 REPLCS 25534835)
$9.22 $6.81
1
Add To Cart

3530297
NUT, HEX FLANGED HEAD,M6X1,5.85THK,14.2 O.D.,10,ZINC ORGANIC(VEHICLE SPEED SENSOR HEAT SHIELD)
$7.26 $4.05
1
Add To Cart

11519840
BOLT, HEX FLANGED HEAD,M6X1X12.3,6.3 THREAD,14.2 OUTSIDE DIAMETER,10.9,GMW3359,MACHINE,MAT-POINT(VEHICLE SPEED SENSOR BRACKET)
$7.10 $4.28
5
Add To Cart

11609847
NUT, HEX FLANGED HEAD LOCK,M10X1.5, 11 THICK, 21.5 OUTSIDE DIAMETER, 10 STEEL, GMW3200, PREVENT TORQUE(ENGINE WIRING HARNESS GROUND)
- Require Quantity: 02
- Package Quantity: 1
$5.59 $3.56
1
Add To Cart

11562157
BOLT, HEXAGON HEAD W/CONICAL WASHER,M10X1.5X71.75,60 THREAD,24 OUTSIDE DIAMETER,10.9 STEEL,GMW3359,MAT POINT(ENGINE MOUNT STRUT BODY SIDE BRACKET)
- Require Quantity: 02
- Package Quantity: 1
$78.93 $39.20
1
Add To Cart

11500914
BOLT, M8X1.25.12(PART OF 4)
$16.80 $10.65
1
Add To Cart

11518149
NUT, HEX FLANGED HEAD,M5X1.6,8 THICK,17.5 OUTSIDE DIAMETER,9.8,6173M,11MM HEXAGON.(ENGINE & INSTRUMENT PANEL WIRING HARNESS CONNECT BRACKET)
- Replaced By: 11570664
$5.91 $3.76
1
Add To Cart

11561734
RIVET, POP,.187"SHANK DIAMETER,.51"LONG,.625"OUTSIDE DIAMETER,.062-.25GRIP,ALUMINUM,PURPLE,DOME HEAD.(OXYGEN SENSOR WIRING HARNESS SHIELD)
$7.39 $4.69
1
Add To Cart

11609619
BOLT, HEXAGON W/ FLAT WASHER-M10X1.5X16,20 OUTSIDE DIAMETER,10.9 STEEL, GMW3200 FINISH(ENGINE WIRING HARNESS GROUND)
$7.38 $4.69
1
Add To Cart

11508202
BOLT, HEX FLANGED HEAD M10X1.5X20 9.8 PHOSPHATE ZINC ORGANIC(ENGINE WIRING HARNESS)

Genuine GM Parts, the Right Choice

GMPartsGiant.com offers the wholesale prices for genuine 2009 Chevrolet Impala parts. Parts like Wiring Harness/Engine are shipped directly from authorized GM dealers and backed by the manufacturer's warranty. Parts fit for the following vehicle options. Engine: 6 Cyl 3.5L, 6 Cyl 3.5L Flex, 6 Cyl 3.9L Flex, 8 Cyl 5.3L. Model Code: LS, LT, LT 3.5, LTZ, SS.
