Sort by:

Recommended

Part No. & Part Description

Price & Qty.

Part No. &
Part Description

WASHER, Hydraulic Brake Hose
21012386
WASHER, FRONT BRAKE HOSE(SINGLE USE)(10.3X14.5X1.61)(SINGLE USE)
Require Quantity: 04
Package Quantity: 20
$0.98 $0.52
20
Add To Cart
21012386
WASHER, REAR BRAKE HOSE(SINGLE USE)(10.3X14.5X1.61)(SINGLE USE)
- Require Quantity: 04
- Package Quantity: 20
$0.98 $0.52
20
Add To Cart

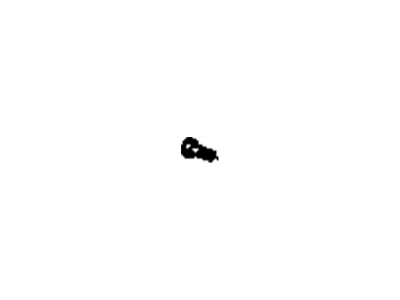

BOLT, Brake Hose
11609782
BOLT, REAR BRAKE HOSE(M10X1.5X23.4)
Require Quantity: 02
Package Quantity: 1
$8.42 $4.69
1
Add To Cart
11609782
BOLT, FRONT BRAKE HOSE(M10X1.5X23.4)
- Require Quantity: 02
- Package Quantity: 1
$8.42 $4.69
1
Add To Cart

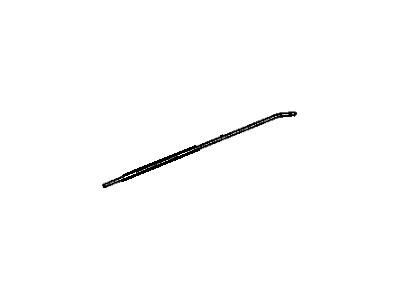

PIPE, Hydraulic Brake
88983905
PIPE, BRAKE(3/16" X 16')(BULK TUBING)(NYLON COATING)
Fitting Vehicle Options: W
$114.42 $57.67
1
Add To Cart

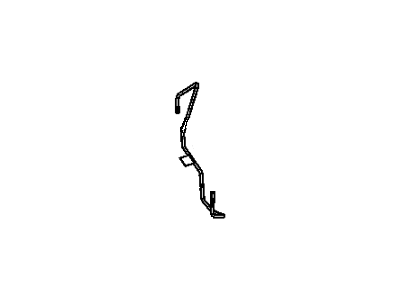

20933014
PIPE, REAR BRAKE(INCLUDES 6)
- Location: Passenger Side
- Fitting Vehicle Options: W19(LS4), W19(LGD,LZE,LZ4,JL9)
20933015
PIPE, REAR BRAKE(INCLUDES 6,11,35)
- Location: Driver Side
- Fitting Vehicle Options: W19(LGD,LZE,LZ4,JL9)
25789064
PIPE, FRONT BRAKE(INCLUDES 6,32)
- Location: Driver Side
- Fitting Vehicle Options: W(JL9)
25880358
PIPE, BRAKE PRESSURE MOD VALVE(INBOARD)(INCLUDES 36)
- Fitting Vehicle Options: W19(JL9)
25880359
PIPE, BRAKE PRESSURE MOD VALVE(OUTBOARD)(INCLUDES 36,38)
- Fitting Vehicle Options: W19(JL9)
25920271
PIPE, REAR BRAKE(INCLUDES 6,11,35)
- Location: Driver Side
- Fitting Vehicle Options: W19(LS4)

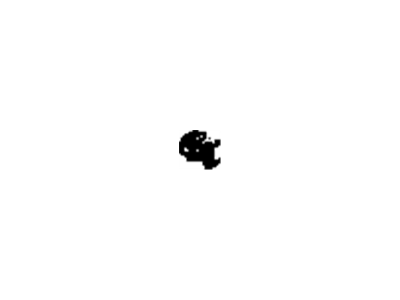

RETAINER, Fuel Line

15781155
RETAINER, BRAKE & FUEL PIPE(5-POSITION CLIP W/FASTENER)
$7.16
1
Add To Cart
15781156
RETAINER, BRAKE & FUEL PIPE(4 POSITION CLIP)
- Require Quantity: 04
- Package Quantity: 1
$6.79
1
Add To Cart
10284876
RETAINER, FUEL FEED & EVAP EMISSION & RETURN PIPE RETAINER(PUSH IN)(BLACK)(25.0 MM)(SC TYPE)
25883835
RETAINER, BRAKE & FUEL PIPE(GRAY)(72.3 X 24.5 X 16)(HOLDS (2)9.52 FUEL & (2)5.1 BRAKE LNS GATED &(1)5.1 BRAKE LN SLOT)
- Require Quantity: 02
- Package Quantity: 1
25883836
RETAINER, BRAKE & FUEL PIPE(GATED 4-POSITION CLIP)

10284876
RETAINER, Early Fuel Evaporation, RETAINER,FUEL FEED & EVAP EMISSION & RETURN PIPE RETAINER(PUSH IN)(BLACK)(25.0 MM)(SC TYPE)(3.162)

HOSE, Hydraulic Brake
15242629
HOSE, REAR BRAKE(INCLUDES 3,5)
Location: Passenger Side
19366667
HOSE, REAR BRAKE(INCLUDES 3,5)
- Location: Driver Side
84393884
HOSE, FRONT BRAKE(INCLUDES 29,30)
- Location: Passenger Side
84393885
HOSE, FRONT BRAKE(INCLUDES 29,30)
- Location: Driver Side

RETAINER, Hydraulic Brake Pipe
10062903
RETAINER, FRONT BRAKE PIPE(CLIP TO MOUNT RFBP TO FOD)(HOLDS (1) HOSE)
Replaced By: 15138725
$5.15 $3.27
1
Add To Cart
22696640
RETAINER, BRAKE PIPE(HOLDS (1) LINE, W/TREE)
- Require Quantity: 02
- Package Quantity: 1
$14.80 $8.25
1
Add To Cart
10319436
RETAINER, BRAKE & FUEL PIPE
25883836
RETAINER, BRAKE & FUEL PIPE(GATED 4-POSITION CLIP)(3.162)

11518565
FITTING, Hydraulic Brake Pipe, FITTING,REAR BRAKE PIPE(PART OF 17)(M10X1X25.75)(INVERTED FLARE)(8.963)
- Require Quantity: 02
- Package Quantity: 1
$7.38 $4.69
1
Add To Cart

CLIP, Hydraulic Brake Pipe
15707312
CLIP, REAR BRAKE PIPE(PART OF 17)(HOLDS (2) 6.35 & 4.75 PIPES)
Fitting Vehicle Options: W
$4.72 $0.21
1
Add To Cart
15803915
CLIP, FRONT BRAKE PIPE(HOLDS (1) 5.1 TUBE)(PUSHES OVER M5 WELD STUD)
- Fitting Vehicle Options: W(LS4,JL9)
$4.46 $2.83
1
Add To Cart

SUPPORT, Hydraulic Brake Pipe
10319433
SUPPORT, BRAKE & FUEL PIPE(FLAT METAL BRACKET W/3 HOLES;TWO SQUARE & ONE ELONGATED ROUND)
Require Quantity: 02
Package Quantity: 1
10351542
SUPPORT, BRAKE & FUEL PIPE RETAINER
15943697
SUPPORT, BRAKE & FUEL PIPE("L"SHAPED CLIP HOLDS 4 LINES 2 BRAKE,TWO FUEL/VAPOR)

11515755
BOLT, HEXAGON,M8X1.25X16,15 THREAD,18 O.D.,10.9,7114M(REAR BRAKE & EVAP EMISSION PIPE CLIP)(TOGETHER WITH 12345493 REPLCS 25534835)
$13.05
1
Add To Cart

11609989
BOLT, HEXAGON W/FLAT WASHER,M6X1X25,15 THREAD,17 OUTSIDE DIAMETER,6202M STEEL,GMW3200,TAPTITE(REAR BRAKE HOSE BRACKET)
- Require Quantity: 02
- Package Quantity: 4
$6.68 $4.24
4
Add To Cart

11609989
BOLT, HEXAGON W/FLAT WASHER,M6X1X25,15 THREAD,17 OUTSIDE DIAMETER,6202M STEEL,GMW3200,TAPTITE(FRONT BRAKE HOSE BRACKET)
- Require Quantity: 02
- Package Quantity: 4
$6.68 $4.24
4
Add To Cart

11561740
NUT, U-SHAPED, M8X1.25, 14.2 WIDE, 38.5 OVERALL LENGTH, 28 C-C, SAE 1050 STEEL, GM7111M(REAR BRAKE PIPE CLIP)
$7.39 $4.69
1
Add To Cart

12547207
TUBING, BULK, 3/16" X 20 FT ROLL,STEEL(REAR BRAKE)(8.964)
$48.46 $25.68
1
Add To Cart

11569751
NUT, HX TUBE INVERTED FLARE, M10X1X16, SAE1010, GMW4707M(PART OF 16,17,31)
- Require Quantity: 10
- Package Quantity: 1
$7.39 $4.69
1
Add To Cart

11569750
NUT, HX FLARED TUBE,M12X1.0X17, 5.3 TUBE, SAE1010, GMW4707M(PART OF 31)
$7.36 $4.10
5
Add To Cart

11518883
SCREW, HEX WASHER HEAD,M6.3X1.81X35,25.9 THREAD,17 O.D.,ALUMINUM BASECOAT-POINT, STEEL,GMW3359(BRAKE & FUEL PIPE RETAINER)
$6.69 $4.25
1
Add To Cart

11609560
NUT, TUBE, M13X1.5X15.75, FOR 5/16" TUBE, 1010 STEEL, GMW4707(PART OF 37,39)(8.915)
- Replaced By: 11610619
$10.73 $6.82
1
Add To Cart

11609630
BOLT, HEXAGON HEAD M6X1X20(BRAKE & FUEL FEED & RETURN & EVAP EMISSION PIPE BRACKET GROUND)
- Require Quantity: 02
- Package Quantity: 1
$5.47 $3.48
1
Add To Cart

11509051
SCREW, HEXAGON HEAD W/FLAT WASHER,M6.3X1.81X20,17 O.D.,STEEL,PO(FRONT BRAKE PIPE RETAINER)
- Replaced By: 19369733

Genuine GM Parts, the Right Choice

GMPartsGiant.com offers the wholesale prices for genuine 2009 Chevrolet Impala parts. Parts like Brake Lines are shipped directly from authorized GM dealers and backed by the manufacturer's warranty. Parts fit for the following vehicle options. Engine: 6 Cyl 3.5L, 6 Cyl 3.5L Flex, 6 Cyl 3.9L Flex, 8 Cyl 5.3L. Model Code: LS, LT, LT 3.5, LTZ, SS.
