Fuel Injection System fit your 2005 Pontiac Vibe

Currently shopping for

2005 Pontiac Vibe

Change Vehicle

Categories Close X

Currently selected

Fuel System, Exhaust, Emission System

Other Categories

Body Moldings, Sheet Metal, Rear Compartment Hardware, Roof Hardware

Body Mounting, Air Conditioning, Audio/Entertainment

Body Wiring, Roof Trim

Brakes

Brakes, Rear Axle, Propeller Shaft, Wheels, Tires

Cooling System, Grille, Oil System

Engine

Frames, Springs, Shocks, Bumpers, Fascias

Front End Sheet Metal, Heater

Front Suspension, Steering

Interior Trim, Front Seat Trim, Seat Belts

Rear Glass, Seat Parts, Adjuster

Rear Seat Trim, Carpet

Starter, Generator, Ignition, Electrical, Lamps

Transfer Case

Transmission - Automatic

Transmission - Manual

Windshield, Wiper, Mirrors, Instrument Panel, Console, Doors

Parts Questions

Sort by:

Recommended

Part No. & Part Description

Price & Qty.

Part No. &
Part Description

BODY, Fuel Injection Air Meter
88969009
BODY, THROTTLE(INCLUDES 13-17,22)(INCLUDES: IAC VALVE & T/POSITION SENSOR)(2ND DESIGN 88974564)
Fitting Vehicle Options: SM(26)(LV6)(1ST DES)
$1606.40 $1038.70
1
Add To Cart
88974564
BODY, THROTTLE(INCLUDES 13-17,22)(INCLUDES: IAC VALVE & T/POSITION SENSOR)(FOR 1ST DESIGN SEE 88969009)
- Fitting Vehicle Options: SM(26)(LV6)(2ND DES)
$1354.89 $347.82
1
Add To Cart
88970218
BODY, THROTTLE(INCLUDES 6-11)(INCLUDES: IAC VALVE & T/POSITION SENSOR)
- Fitting Vehicle Options: SN(26)(LNK)
88974439
BODY, THROTTLE(W/THROTTLE ACTUATOR)(INCLUDES TPS)
- Fitting Vehicle Options: SL(26)(LV6)

HOSE, Throttle Body Coolant Supply
88973763
HOSE, THROTTLE BODY HEATER INLET
Fitting Vehicle Options: SL(26)(LV6)
$66.32 $49.14
1
Add To Cart
88969021
HOSE, THROTTLE BODY HEATER OUTLET
- Fitting Vehicle Options: SM(26)(LV6)
88969598
HOSE, THROTTLE BODY HEATER INLET(CYL HEAD TO THROTTLE BODY)
- Fitting Vehicle Options: SN(26)(LNK)
88969599
HOSE, THROTTLE BODY HEATER OUTLET(THROTTLE BODY TO BY-PASS PIPE)
- Fitting Vehicle Options: SN(26)(LNK)
88972993
HOSE, THROTTLE BODY HEATER INLET
- Fitting Vehicle Options: SM(26)(LV6)
88974440
HOSE, THROTTLE BODY HEATER OUTLET(USED FROM PRODUCTION DATE 04/05)(1ST DESIGN 88973764)
- Fitting Vehicle Options: SL(26)(LV6)(2ND DES)

NUT, Multi PORTION Fuel Injection Throttle Body
88974031
NUT, THROTTLE BODY
Fitting Vehicle Options: SL(26)(LV6)
Require Quantity: 02
Package Quantity: 1
$1.55 $1.27
1
Add To Cart
88969046
NUT, THROTTLE BODY(M8X1.25, 17.5MM O.D.)(8MM HIGH)
- Fitting Vehicle Options: SM(26)(LV6)
- Require Quantity: 02
- Package Quantity: 1
94842498
NUT, THROTTLE BODY
- Fitting Vehicle Options: SN(26)(LNK)
- Require Quantity: 02
- Package Quantity: 1

CLAMP, Fuel Line
88970234
CLAMP, FUEL INJECTION FUEL FEED PIPE(LOWER)
Fitting Vehicle Options: SM,SN(26)(LNK,LV6), SL(26)(LV6)
$7.16
1
Add To Cart
88969645
CLAMP, FUEL INJECTION FUEL FEED PIPE
- Fitting Vehicle Options: SN(26)(LNK)
88973525
CLAMP, FUEL INJECTION FUEL FEED PIPE(BLACK)(UPPER)(CODE: NO REUSE)
- Fitting Vehicle Options: SM(26)(LV6), SL(26)(LV6)

TERMINAL, Chassis Electrical
88974227
TERMINAL, WIRING
Require Quantity: 03
Package Quantity: 1
$10.72 $8.73
1
Add To Cart
88974227
TERMINAL, WIRING(PINION LOCATING 3-6)
- Require Quantity: 04
- Package Quantity: 1
$10.72 $8.73
1
Add To Cart
88974227
TERMINAL, WIRING
- Require Quantity: 06
- Package Quantity: 1
$10.72 $8.73
1
Add To Cart
88973784
TERMINAL, WIRING
- Require Quantity: 08
- Package Quantity: 1
88973784
TERMINAL, WIRING
- Require Quantity: 03
- Package Quantity: 1
88973784
TERMINAL, WIRING
88973784
TERMINAL, WIRING(PINION LOCATING 1,2)
- Require Quantity: 02
- Package Quantity: 1

CONNECTOR, Fuel Injection
88974043
CONNECTOR, SEQUENTIAL MULTIPORT FUEL INJECTOR(2-WAY FEMALE)(W/O LEADS)(GRAY)(USE TOGETHER WITH 2-88973784 SERVICE REPAIR TERMINAL)
Fitting Vehicle Options: SM,SN(26)(LNK,LV6)
Require Quantity: 04
Package Quantity: 1
$22.83 $14.52
1
Add To Cart
88974043
CONNECTOR, SEQUENTIAL MULTIPORT FUEL INJECTOR(2-WAY FEMALE)(W/O LEADS)(PART OF ENGINE WIRING HARNESS, SEE CATALOG GROUP 2.525)(GRAY)(USE TOGETHER WITH 2-88973784 SERVICE REPAIR TERMINAL)
- Fitting Vehicle Options: SL(26)(LV6)
- Require Quantity: 04
- Package Quantity: 1
$22.83 $14.52
1
Add To Cart

88974734
CONNECTOR, Computer Control Sensors, CONNECTOR,SENSOR-ACCELERATOR PEDAL POSITION(6-WAY FEMALE)(W/O LEADS)(BLACK)(USE TOGETHER WITH 6-88974227 SERVICE REPAIR TERMINAL)
$13.12 $11.02
1
Add To Cart

RAIL, Fuel Injection
19205530
RAIL, MULTIPORT FUEL INJECTION FUEL
Fitting Vehicle Options: SM(26)(LV6), SL(26)(LV6)
88969640
RAIL, MULTIPORT FUEL INJECTION FUEL(INCLUDES: DAMPENER & SEAL)
- Fitting Vehicle Options: SN(26)(LNK)

88969011

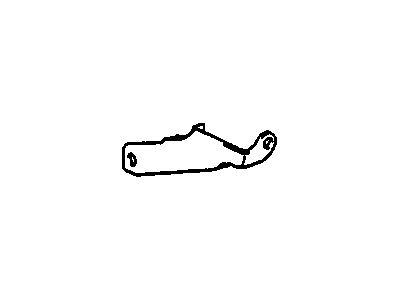

BRACKET, Fuel Injection Air Meter, BRACKET,THROTTLE BODY

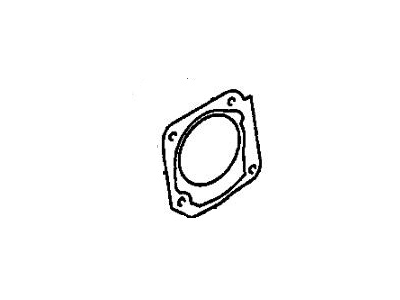

GASKET, Multi PORTION Fuel Injection Throttle Body
88969026
GASKET, THROTTLE BODY(*01)
Fitting Vehicle Options: SM(26)(LV6)
88969638
GASKET, THROTTLE BODY(*01)
- Fitting Vehicle Options: SN(26)(LNK)
88974205
GASKET, THROTTLE BODY(*01)
- Fitting Vehicle Options: SL(26)(LV6)

VALVE, Throttle Body/Carburetor
88969043
VALVE, IDLE AIR CONTROL(PART OF 18)
Fitting Vehicle Options: SM(26)(LV6)
88973239
VALVE, IDLE AIR CONTROL(PART OF 16)
- Fitting Vehicle Options: SN(26)(LNK)

88969044
BOLT, Fuel Injection Air Meter, BOLT,THROTTLE BODY BRACKET(M8X1.25X49)(INCLUDES WASHER-17MM O.D.)
- Require Quantity: 02
- Package Quantity: 1

STUD, Multi PORTION Fuel Injection Throttle Body
88969045
STUD, THROTTLE BODY(M8X1.25X54)
Fitting Vehicle Options: SM(26)(LV6)
Require Quantity: 02
Package Quantity: 1
88969622
STUD, THROTTLE BODY(M8X1.25X56)
- Fitting Vehicle Options: SN(26)(LNK)
- Require Quantity: 02
- Package Quantity: 1
88974030
STUD, THROTTLE BODY(M6X1.0X60)
- Fitting Vehicle Options: SL(26)(LV6)
- Require Quantity: 02
- Package Quantity: 1

SPACER, Fuel Injection
88969641
SPACER, FUEL INJECTION FUEL RAIL(8.5MM INSIDE DIAMETER, 20MM OUTSIDE DIAMETER)(36MM LONG)
Fitting Vehicle Options: SN(26)(LNK)
Require Quantity: 02
Package Quantity: 1
94856839
SPACER, FUEL INJECTION FUEL RAIL(8.5MM INSIDE DIAMETER, 20MM OUTSIDE DIAMETER)(27.6MM LONG)
- Fitting Vehicle Options: SM(26)(LV6), SL(26)(LV6)
- Require Quantity: 02
- Package Quantity: 1

88969642
BOLT, Fuel Line, BOLT,FUEL INJECTION FUEL FEED PIPE CLA(BOLT,HEXAGON(M6X1.0X14), W/WASHER(16MM OUTSIDE DIAMETER), HEADER POINT)

BOLT, Fuel Injection
88969643
BOLT, FUEL INJECTION FUEL RAIL(BOLT,HEXAGON(M8X1.25X55), W/WASHER(18MM OUTSIDE DIAMETER), HEADER POINT)(8.900)
Fitting Vehicle Options: SN(26)(LNK)
Require Quantity: 02
Package Quantity: 1
94856838
BOLT, FUEL INJECTION FUEL RAIL(M8X1.25X40)
- Fitting Vehicle Options: SM(26)(LV6), SL(26)(LV6)
- Require Quantity: 02
- Package Quantity: 1
- Replaced By: 94859968

HOSE, Fuel Line
88969644
HOSE, FUEL INJECTION FUEL FEED(INCLUDES CONNECT)
Fitting Vehicle Options: SN(26)(LNK,Z49)
88973649
HOSE, FUEL INJECTION FUEL FEED(INCLUDES CONNECT)
- Fitting Vehicle Options: SN(26)(LNK)(EXC Z49)

SENSOR, Multi PORTION Fuel Injection Throttle Position
88970220
SENSOR, THROTTLE POSITION(PART OF 16)
Fitting Vehicle Options: SN(26)(LNK)
94859012
SENSOR, THROTTLE POSITION(PART OF 18)
- Fitting Vehicle Options: SM(26)(LV6)

PIPE, Fuel Line
88971581
PIPE, FUEL INJECTION FUEL FEED
Fitting Vehicle Options: SM(26)(LV6)
88973526
PIPE, FUEL INJECTION FUEL FEED
- Fitting Vehicle Options: SL(26)(LV6)

BOLT, Throttle Body Throttle Position
88972792
BOLT, THROTTLE POSITION SENSOR(PART OF 16)
Require Quantity: 02
Package Quantity: 1
88972792
BOLT, THROTTLE POSITION SENSOR(PART OF 18)
- Require Quantity: 02
- Package Quantity: 1

GASKET, Throttle Body/Carburetor

88972794
GASKET, IDLE AIR CONTROL VALVE(PART OF 16)(*01)
88972794
GASKET, IDLE AIR CONTROL VALVE(PART OF 18)(*01)

BOLT, Multi PORTION Fuel Injection Throttle Body
88972795
BOLT, IDLE AIR CONTROL VALVE(PART OF 18)(M10X1.25, 11MM LONG)(14MM HEXAGON)
Fitting Vehicle Options: SM,SN(26)(LV6)
Require Quantity: 02
Package Quantity: 1
88972796
BOLT, THROTTLE BODY(BOLT, HEXAGON(M8X1.25X65), HEADER POINT)
- Fitting Vehicle Options: SN(26)(LNK)
- Require Quantity: 02
- Package Quantity: 1
94858410
BOLT, THROTTLE BODY(M6X1.0X60)
- Fitting Vehicle Options: SL(26)(LV6)
- Require Quantity: 02
- Package Quantity: 1

INJECTOR, Fuel Injection
88973523
INJECTOR, MULTIPORT FUEL(INCLUDES 2)(INCLUDES SEAL)
Fitting Vehicle Options: SL(26)(LV6)
Require Quantity: 04
Package Quantity: 1
88974567
INJECTOR, MULTIPORT FUEL(INCLUDES 23,25(UPPER ONLY)
- Fitting Vehicle Options: SN(26)(LNK)
- Require Quantity: 04
- Package Quantity: 1
94859505
INJECTOR, MULTIPORT FUEL(INCLUDES 2)(INCLUDES SEAL)
- Fitting Vehicle Options: SM(26)(LV6)
- Require Quantity: 04
- Package Quantity: 1

88974047
CONNECTOR, Carburetor Accelerator Pump, CONNECTOR,VALVE-IDLE AIR CONTROL(3-WAY FEMALE)(W/O LEADS)(GRAY)(USE TOGETHER WITH 3-88973784 SERVICE REPAIR TERMINAL)

88974048
CONNECTOR, Multi PORTION Fuel Injection Throttle Position, CONNECTOR,SENSOR-THROTTLE POSITION(3-WAY FEMALE)(W/O LEADS)(BLACK)(USE TOGETHER WITH 3-88974227 SERVICE REPAIR TERMINAL)

INSULATOR, Fuel Injector
88974209
INSULATOR, FUEL INJECTOR(9.2MM INSIDE DIAMETER, 16MM OUTSIDE DIAMETER)(LOWER)(5.5MM HIGH)(*01)
Fitting Vehicle Options: SN(26)(LNK)
Require Quantity: 04
Package Quantity: 1
94860014
INSULATOR, FUEL INJECTOR(9MM INSIDE DIAMETER, 16MM OUTSIDE DIAMETER)(5.5MM HIGH)(*01)
- Fitting Vehicle Options: SM(26)(LV6), SL(26)(LV6)
- Require Quantity: 04
- Package Quantity: 1

88974322
CONNECTOR, Throttle Control, CONNECTOR,MOTOR-THROTTLE ACTUATOR(6-WAY FEMALE)(W/O LEADS)(PART OF ENGINE WIRING HARNESS, SEE CATALOG GROUP 2.525)(USE TOGETHER WITH 2-88973784 (TIN-PINION LOCATING 1,2) & 4-88974227 (GOLD-PINION LOCATING 3-6) SERVICE REPAIR TERMINAL)

SEAL, Fuel Injector
94858779
SEAL, FUEL INJECTOR(O RING)(PART OF 24)(1.9MM THICK)(7.8MM INSIDE DIAMETER, 11.6MM O.D.)(*01)
Fitting Vehicle Options: SM,SN(26)(LNK,LV6)
Require Quantity: 04
Package Quantity: 1
94858779
SEAL, FUEL INJECTOR(O RING)(PART OF 1)(1.9MM THICK)(7.8MM INSIDE DIAMETER, 11.6MM O.D.)(*01)
- Fitting Vehicle Options: SM,SN(26)(LNK,LV6), SL(26)(LV6)
- Require Quantity: 04
- Package Quantity: 1

Genuine GM Parts, the Right Choice

GMPartsGiant.com offers the wholesale prices for genuine 2005 Pontiac Vibe parts. Parts like Fuel Injection System are shipped directly from authorized GM dealers and backed by the manufacturer's warranty. Parts fit for the following vehicle options. Engine: 4 Cyl 1.8L. Model Code: ALL PURPOSE 4 DOOR, ALL PURPOSE 4 DOOR AWD, ALL PURPOSE 4 DOOR GT.
