Sort by:

Recommended

Part No. & Part Description

Price & Qty.

Part No. &
Part Description

25121293
FILTER, Engine Fuel Filter, FILTER,FUEL(GF578 & GF627)

PIPE, Fuel Line
15279855
PIPE, FUEL RETURN
Fitting Vehicle Options: W19-27(L36,JL9,J65)
$175.70 $76.43
1
Add To Cart
10330347
PIPE, FUEL RETURN(W/SLEEVE)(INCLUDES 17)(TO FUEL TANK)
- Fitting Vehicle Options: W19-27(LA1,JL9)
$178.92 $99.75
1
Add To Cart
10330347
PIPE, FUEL RETURN(INCLUDES 17)(TO FUEL TANK)
- Fitting Vehicle Options: WW27(LA1,J65), WF19(LA1,J65)
$178.92 $99.75
1
Add To Cart
15279854
PIPE, FUEL FEED(INCLUDES 11)
- Fitting Vehicle Options: W19-27(L36,JL9,J65)
$209.91 $132.81
10330348
PIPE, FUEL FEED(INCLUDES 18)(INCLUDES PIPE, FITTING & SEAL)
- Fitting Vehicle Options: WW27(LA1,J65), W19(LA1,J65)
$180.26 $100.49
10330348
PIPE, FUEL FEED(W/SLEEVE)(INCLUDES 18)(INCLUDES PIPE, FITTING & SEAL)
- Fitting Vehicle Options: W19-27(LA1,JL9)
$180.26 $100.49
10330355
PIPE, FUEL RETURN(INCLUDES 11)
- Fitting Vehicle Options: W(L67)
10330356
PIPE, FUEL FEED(INCLUDES 11,12)
- Fitting Vehicle Options: W(L67)

SEAL, Fuel Line

22514722
SEAL, FUEL FEED PIPE(O RING)(PART OF PIPE,FEED & RETURN ASM BUNDLE)(7.35MM INSIDE DIAMETER X 1.66MM THICK)(PART OF 12)
$3.08 $1.69
10
Add To Cart
22514722
SEAL, FUEL FEED PIPE(O RING)(PART OF PIPE,FEED & RETURN ASM BUNDLE)(7.35MM INSIDE DIAMETER X 1.66MM THICK)(PART OF 1)
$3.08 $1.69
10
Add To Cart

PIPE, Early Fuel Evaporation
10346523
PIPE, EVAP EMISSION(INCLUDES CONNECT,RETAINER,CAP,VALVE & LABEL)
Fitting Vehicle Options: W19-27(L36,JL9,J65)
Replaced By: 19435279
$170.11 $93.40
1
Add To Cart
10346522
PIPE, EVAP EMISSION(W/SLEEVE)(INCLUDES 2,19)
- Fitting Vehicle Options: W(LA1)
- Replaced By: 19435278
$157.36 $95.08
1
Add To Cart
15892006
PIPE, EVAP EMISSION(W/SLEEVE)(INCLUDES 2,19)(5/16 VAPOR VENT LINE TO FILL NECK)
- Fitting Vehicle Options: W
$91.56 $51.04
1
Add To Cart
10346521
PIPE, EVAP EMISSION(INCLUDES 4)(PART OF FUEL PIPE ASM)
- Fitting Vehicle Options: W(L67)

RETAINER, Fuel Line

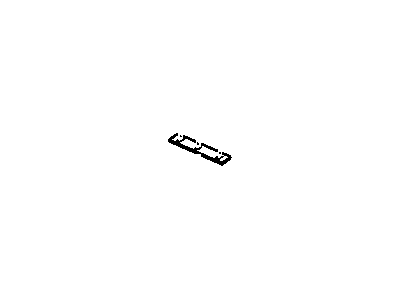

10273535
RETAINER, BRAKE & FUEL PIPE(BLACK)(66.3MM LENGTH)(6 HOLES W/2 PUSH PINS)
Fitting Vehicle Options: W(LA1,L36), W19-27, W(L67), W19-27(L67)
Require Quantity: 05
Package Quantity: 1
$9.80 $3.19
1
Add To Cart

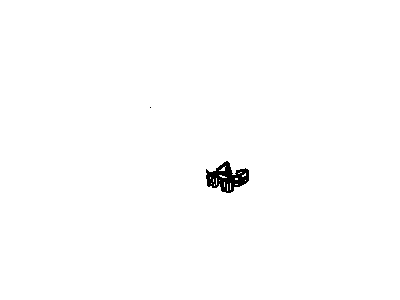

10284876
RETAINER, FUEL FEED & RETURN PIPE(BLACK)(25.0 MM)(SC TYPE)
- Fitting Vehicle Options: W19-27(LA1,L36,JL9), WF19(LA1,J65), WW27(LA1,J65), W19-27(L67)

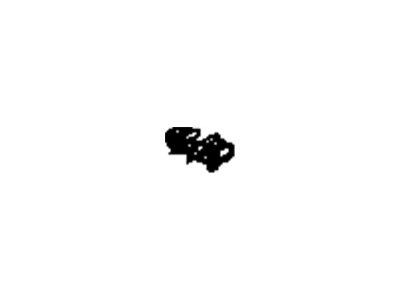

10338901
RETAINER, FUEL FEED & RETURN PIPE(BLACK)(36.7X35.8X12)(HOLDS (2)7.94-9.52 TUBES & (2)4.76 BRAKE LINES)
- Fitting Vehicle Options: W19-27(L36,JL9), W19-27(L36,J65)
10338901
RETAINER, BRAKE & FUEL PIPE
- Fitting Vehicle Options: W19-27
- Require Quantity: 02
- Package Quantity: 1

RETAINER, Hydraulic Brake Pipe
10273535
RETAINER, BRAKE & FUEL PIPE(BLACK)(66.3MM LENGTH)(6 HOLES W/2 PUSH PINS)(3.162)
Fitting Vehicle Options: W19-27(L67)
Require Quantity: 05
Package Quantity: 1
$9.80 $3.19
1
Add To Cart
10278642
RETAINER, BRAKE PIPE
- Fitting Vehicle Options: W
10338901
RETAINER, BRAKE PIPE(BLACK)(36.7X35.8X12)(HOLDS (2)7.94-9.52 TUBES & (2)4.76 BRAKE LINES)(3.162)
- Fitting Vehicle Options: W(L67)
- Require Quantity: 02
- Package Quantity: 1
10408474
RETAINER, BRAKE & FUEL PIPE(GRAY)(5 TUBE, DIFFERENTIAL SIZES)
- Fitting Vehicle Options: W19-27

12048089
RETAINER, Early Fuel Evaporation, RETAINER,FUEL FEED & EVAP EMISSION & RETURN PIPE(30MM CONDUIT)
$13.05
1
Add To Cart

SUPPORT
10257627
SUPPORT, BRAKE & FUEL PIPE(104.0 MM LENGTH)(STEEL)
Fitting Vehicle Options: W19-27(L36)
10257627
SUPPORT, BRAKE & FUEL PIPE
- Fitting Vehicle Options: W19-27, W(L67)
- Require Quantity: 02
- Package Quantity: 1

10400617
BRACKET, Engine Fuel Filter, BRACKET,FUEL FILTER

RETAINER

10408474
RETAINER, BRAKE & FUEL PIPE(GRAY)(5 TUBE, DIFFERENTIAL SIZES)
10408474
RETAINER, BRAKE & FUEL PIPE

10408475
SUPPORT, Hydraulic Brake Pipe, SUPPORT,BRAKE & FUEL PIPE

12580161
CAP, Early Fuel Evaporation, CAP,EVAP EMISSION CANISTER PURGE HOSE SERVICE VALVE(PART OF 3)

11515755
BOLT, HEXAGON,M8X1.25X16,15 THREAD,18 O.D.,10.9,7114M(FUEL FILTER BRACKET)(TOGETHER WITH 12345493 REPLCS 25534835)
$13.05
1
Add To Cart

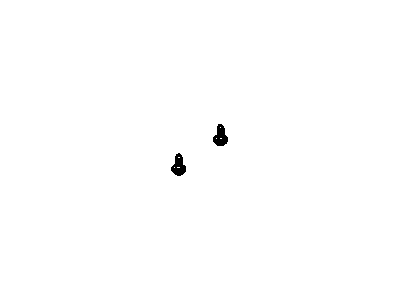

11609989
BOLT, HEXAGON W/FLAT WASHER,M6X1X25,15 THREAD,17 OUTSIDE DIAMETER,6202M STEEL,GMW3200,TAPTITE(REAR BRAKE HOSE BRACKET)
- Require Quantity: 02
- Package Quantity: 4
$6.68 $4.24
4
Add To Cart

11609540
BOLT, HEX WASHER HEAD,M6X1X20,16.15 THREAD, 17 OUTSIDE DIAMETER, 8.8, GMW4205, HEADER POINT.(BRAKE & FUEL FEED & FUEL RETURN & EVAP EMISSION PIPE)(8.977)
- Require Quantity: 02
- Package Quantity: 1
$9.41 $5.98
1
Add To Cart

11518883
SCREW, HEX WASHER HEAD,M6.3X1.81X35,25.9 THREAD,17 O.D.,ALUMINUM BASECOAT-POINT, STEEL,GMW3359(BRAKE & FUEL PIPE RETAINER)
$6.69 $4.25
1
Add To Cart

Genuine GM Parts, the Right Choice

GMPartsGiant.com offers the wholesale prices for genuine 2005 Chevrolet Impala parts. Parts like Fuel Supply System-Fuel Lines are shipped directly from authorized GM dealers and backed by the manufacturer's warranty. Parts fit for the following vehicle options. Engine: 6 Cyl 3.4L, 6 Cyl 3.8L. Model Code: IMPALA, LS, LT.
