Fuel Tank Mounting & Filler Pipes fit your 2005 Chevrolet Blazer 4WD

Currently shopping for

2005 Chevrolet Blazer 4WD

Change Vehicle

Vehicle Options

6 Cyl 4.3L MFI, 90 DEG

Vehicle Options

6 Cyl 4.3L MFI, 90 DEG

Categories Close X

Currently selected

Fuel System, Exhaust, Emission System

Other Categories

Body Mounting, Air Conditioning, Audio/Entertainment

Brakes

Brakes, Rear Axle, Propeller Shaft, Wheels, Tires

Cab And Body Structure, Mirrors, Doors, Trim, Seat Belts, Wipers

Cooling System, Grille, Oil System

Engine

Frames, Springs, Shocks, Bumpers

Front Axle, Front Suspension, Steering

Front End Sheet Metal, Heater

Rear Body Structure, Moldings & Trim, Cargo Stowage

Starter, Generator, Ignition, Electrical, Lamps

Transfer Case

Transmission - Automatic

Transmission - Manual

Parts Questions

Sort by:

Recommended

Part No. & Part Description

Price & Qty.

Part No. &
Part Description

11561878
RETAINER, Fuel Tank Filler, RETAINER,FUEL TANK FILLER PIPE HOUSING(FITS 8.0-8.25 DIAMETER HOLE IN 3-7MM THICK PANEL)(8.940)
$7.10 $4.28
10
Add To Cart

11514597
NUT, Hexagon, NUT,HEX FLANGED HEAD,10X1.5 THREAD, 9.8 THICK, 21.8 OUTSIDE DIAMETER, 510M (10) PHOSPHATE ZINC ORGANIC - FLAKE 7111M(FUEL TANK STRAP)(2.383)
- Require Quantity: 02
- Package Quantity: 1
$8.42 $4.69
1
Add To Cart

16238399
SENSOR, Fuel Tank Meter/Pump, SENSOR,FUEL TANK PRESSURE(AT MODULE)
$98.40 $48.12
1
Add To Cart

BOLT, Hex

11515755
BOLT, HEXAGON,M8X1.25X16,15 THREAD,18 O.D.,10.9,7114M(FUEL TANK FILLER PIPE BRACKET)(TOGETHER WITH 12345493 REPLCS 25534835)
$13.05
1
Add To Cart
11516327
BOLT, HEX FLANGED HEAD,M10X1.5X25,22.30 O.D.,HEADER POINT,10.9,7112M(FUEL TANK STRAP)
- Require Quantity: 02
- Package Quantity: 10
$4.42 $2.81
10
Add To Cart
11517720
BOLT, METRIC HEXAGON FLANGE HEAD, M10X1.5X50(FUEL TANK STRAP)
$10.89 $6.92
1
Add To Cart
11609544
BOLT, HEXAGON W/FLAT WASHER, M10X1.5X28, 19.4 THREAD, 24 OUTSIDE DIAMETER, 8.8, GMW4205(FUEL TANK SHIELD)
- Require Quantity: 03
- Package Quantity: 1
$6.91 $4.38
1
Add To Cart
11516329
BOLT, HEX FLANGED HEAD,M12X1.75X25,18.85 THREAD,26.6 OUTSIDE DIAMETER,10.9,7114M.(FUEL TANK SUPPORT)
- Require Quantity: 04
- Package Quantity: 1
$7.10 $4.44
1
Add To Cart

15283098
BUMPER, Fuel Door & Body Side, BUMPER,FUEL TANK FILLER DOOR
- Require Quantity: 02
- Package Quantity: 10
$5.93 $3.97
10
Add To Cart

15034832
SEAL, Fuel Gage to Tank, SEAL,FUEL SENDER(O RING)(FLANGE STYLE)(93.8 MM INSIDE DIAMETER X 111.2 MM OUTSIDE DIAMETER X 25.9 MM TALL)
- Require Quantity: 02
- Package Quantity: 1
$24.34 $13.40
1
Add To Cart

10372865
CAP, Fuel Tank Filler, CAP,FUEL TANK FILLER(TETHER LENGTH 155MM)
- Replaced By: 19432733
$48.12 $25.50
1
Add To Cart

15734494
RING, Fuel Tank Meter/Pump, RING,FUEL SENDER(144 MM OUTSIDE DIAMETER- TWIST / CAM RING)
$50.40 $26.71
1
Add To Cart

15657364
NUT, Fuel Tank Mounting Strap, NUT,FUEL TANK STRAP(M10X1.5,30.5 LG)(U NUT)(3.616)
- Require Quantity: 02
- Package Quantity: 5
$1.88 $1.25

15149668
HOUSING, Fuel Tank Filler, HOUSING,FUEL TANK FILLER PIPE(2 NUTS USE 15022652)
$16.39 $11.57
1
Add To Cart

15684333
SUPPORT, Fuel Tank, SUPPORT,FUEL TANK
- Require Quantity: 02
- Package Quantity: 1
$31.00 $20.74
1
Add To Cart

12337820
STRAP, Fuse, STRAP,15" TIE STRAP(PART OF 1)
- Require Quantity: 03
- Package Quantity: 10
$0.12 $0.07
10
Add To Cart

DOOR, Fuel Door & Body Side

15238067
DOOR, FUEL TANK FILLER(INCLUDES 10,11)
$130.08 $87.00
1
Add To Cart
15238067
DOOR, FUEL TANK FILLER(INCLUDES 25,26)
$130.08 $87.00
1
Add To Cart

SPRING, Fuel Door & Body Side

15521575
SPRING, FUEL TANK FILLER DOOR(PART OF 9)
$9.07 $6.07
1
Add To Cart
15521575
SPRING, FUEL TANK FILLER DOOR(PART OF 27)
$9.07 $6.07
1
Add To Cart

15685550
BOLT, Fuel Tank Filler, BOLT,FUEL TANK FILLER PIPE HOUSING(M6X1X20)(16.330)
- Require Quantity: 02
- Package Quantity: 10
$3.83 $2.56
10
Add To Cart

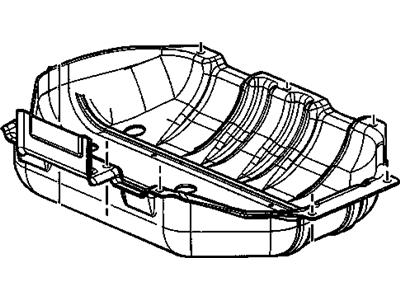

TANK, Fuel
15162039
TANK, FUEL(INCLUDES VALVE,HANDLE,CAM,COVER)
Fitting Vehicle Options: ST1(16)(LU3)(EXC K53)
15184726
TANK, FUEL(INCLUDES 20,22,26,30,33,34)
- Fitting Vehicle Options: ST1(06)

PIPE, Fuel Tank Filler
15191596
PIPE, FUEL TANK FILLER(INCLUDES 13,14,17)
Fitting Vehicle Options: ST1(06)
$239.61 $159.58
1
Add To Cart
10366906
PIPE, FUEL TANK FILLER(INCLUDES 11)
- Fitting Vehicle Options: ST1(16)

11516215
INCLS CLAMP, Early Fuel Evaporation, INCLS CLAMP,SPRINGBAND,HOSE DIAMETER 17MM,WIDTH 15MM,6298M(PART OF 37)(8.948)
- Require Quantity: 02
- Package Quantity: 1
$6.75
1
Add To Cart

11548298
NUT, Fuel Tank Filler, NUT,FUEL TANK FILLER PIPE HOUSING(M6X1.0)(U-TYPE)(2.726)
$13.05
1
Add To Cart

STRAP, Fuel Tank
15032209
STRAP, FUEL TANK(FRONT LOWER)
Fitting Vehicle Options: ST1(06)
$19.46 $10.88
1
Add To Cart
15015589
STRAP, FUEL TANK(W/STUD)(FRONT)
- Fitting Vehicle Options: ST1(06)(EXC W99)
15032208
STRAP, FUEL TANK
- Fitting Vehicle Options: ST1(06)(EXC W99)
15177449
STRAP, FUEL TANK(INCLUDES 7)(FRONT)
- Fitting Vehicle Options: ST1(16)
- Require Quantity: 02
- Package Quantity: 1

PIN, Fuel Door & Body Side
15521574
PIN, FUEL TANK FILLER DOOR HINGE(PART OF 9)(12.945)
Require Quantity: 02
Package Quantity: 1
$7.13 $4.77
1
Add To Cart
15521574
PIN, FUEL TANK FILLER DOOR HINGE(PART OF 27)(12.945)
- Require Quantity: 02
- Package Quantity: 1
$7.13 $4.77
1
Add To Cart

SHIELD, Fuel Tank
15003513
SHIELD, FUEL TANK(SHIELD MOUNTED ON SIDE OF TANK)
Fitting Vehicle Options: ST1(06)(LU3)(EXC K53)
15051086
SHIELD, FUEL TANK
- Fitting Vehicle Options: T1(06)(ZM5)
15771638
SHIELD, FUEL TANK
- Fitting Vehicle Options: ST1(16)

HOSE, Evaporation Emission System(Fuel Tank End)
15024369
HOSE, EVAP EMISSION(PART OF 37)(6MM FORMED CURVE)(LOCATED AT TANK)
Fitting Vehicle Options: ST1(06)
15983085
HOSE, EVAP EMISSION(PART OF 37)(6X250MM)(REAR)(STRAIGHT HOSE)(3.145)
- Fitting Vehicle Options: ST1(06)(EXC W99)

2056550
BOLT, BOLT,HEXAGON,W/CONICAL WASHER,10X1.5X25,AC POINT,9.5,PC(TRANSFER CASE SHIELD)
- Require Quantity: 03
- Package Quantity: 1

11517996
NUT, HEX FLANGED HEAD,M10X1.5,11.2 THICK,21.5 OUTSIDE DIAMETER,10,7111M,ALL METAL PREVENT TORQUE(FUEL TANK STRAP)
- Require Quantity: 02
- Package Quantity: 1
$7.38 $4.46
1
Add To Cart

11589015
BOLT, HEX WASHER HEAD W/FLAT WASHER M4.2X1.41X20,12.5 O.D.,DOG POINT,6010M,7253M(FUEL TANK FILLER PIPE)
- Require Quantity: 03
- Package Quantity: 11
$3.21 $2.04
11
Add To Cart

11612177
NUT, M8-1.25 PUSHON-ZINC COATED(FUEL TANK SHIELD)(12.177)
- Require Quantity: 04
- Package Quantity: 10
$4.32 $2.74
10
Add To Cart

11516073
NUT, M12X1.75(FUEL TANK SUPPORT)
- Require Quantity: 04
- Package Quantity: 10
$5.75 $3.66
10
Add To Cart

1470030
CLAMP, WORM TYPE(11/16" TO 1 5/16")(PART OF 1)
- Require Quantity: 03
- Package Quantity: 1
- Replaced By: 11610236
$7.38 $4.69
1
Add To Cart

15953840
SCREW, PAN HEAD TORX W/CONICAL WASHER M6X1X25 AC POINT 9.8 PC 12.5-OUTSIDE DIAMETER(FUEL TANK FILLER PIPE HOUSING)(3.003)
- Require Quantity: 02
- Package Quantity: 5
$9.93 $6.31
5
Add To Cart

15656027
SCREW, HEX WASHER HEAD,W/SEALER,M4.2X1.41X16,8.9 O.D.,6172M,BO(FUEL TANK FILLER PIPE)(8.900)
- Require Quantity: 03
- Package Quantity: 10
$3.55 $2.25
10
Add To Cart

11609754
CLAMP, WORM GEAR,SIZE 36, 64.26 MIN DIAMETER 51.56 MAX DIAMETER, STAINLESS STEEL.(FUEL TANK FILLER HOSE)
- Require Quantity: 02
- Package Quantity: 5
- Replaced By: 12338017
$8.41 $5.62
5
Add To Cart

11501869
WASHER, EXTERNAL TOOTHED LOCK,M8,15 O.D.,.85THK,STEEL,ZINC(FUEL TANK FILLER PIPE GROUND)
$6.24 $3.31
1
Add To Cart

11501869
WASHER, EXTERNAL TOOTHED LOCK,M8,15 O.D.,.85THK,STEEL,ZINC(FUEL SENDER GROUND WIRE)
$6.24 $3.31
1
Add To Cart

11504585
SCREW-HEXAGON, 8X1.25X16,TYPE T,WASHER HEAD TAPPING(FUEL TANK FILLER PIPE GROUND)
$6.57 $4.17
1
Add To Cart

11513894
BOLT, HEXAGON W/FLAT WASHER,TAP,M8X1.25X20,14.2THD,24 O.D.,TRIM POINT,6202M,PHOSPHATE ORGANIC(FUEL TANK FILLER PIPE BRACKET)
$7.39 $4.69
1
Add To Cart

11513894
BOLT, HEXAGON W/FLAT WASHER,TAP,M8X1.25X20,14.2THD,24 O.D.,TRIM POINT,6202M,PHOSPHATE ORGANIC(FUEL TANK SHIELD)
- Require Quantity: 09
- Package Quantity: 1
$7.39 $4.69
1
Add To Cart

15614758
WASHER, SPECIAL FLAT,M10X22X3.1 11ID,21.8OD,2.9THK,W/4 FLAT SAE 1060HRC 42,DO(FUEL TANK STRAP)
- Require Quantity: 02
- Package Quantity: 1
$3.55 $2.14
1
Add To Cart

15650963
WASHER, M10 X 22 X 3.1(FUEL TANK STRAP)(8.846)
- Replaced By: 11610233
$7.37 $4.69
1
Add To Cart

14033569
HOSE, BULK,7/64"X25',GM6148(CUT .236" LENGTH FROM HOSE)

Genuine GM Parts, the Right Choice

GMPartsGiant.com offers the wholesale prices for genuine 2005 Chevrolet Blazer 4WD parts. Parts like Fuel Tank Mounting & Filler Pipes are shipped directly from authorized GM dealers and backed by the manufacturer's warranty. Parts fit for the following vehicle options. Engine: 6 Cyl 4.3L. Model Code: 2 DOOR, 4 DOOR.
