Steering Column fit your 2005 Cadillac XLR

Currently shopping for

2005 Cadillac XLR

Change Vehicle

Vehicle Options

8 Cyl 4.6L; 5-Speed Automatic Transmission, HMD, 5L50-E, Electronic, Overdrive; XLR Convertible

Vehicle Options

8 Cyl 4.6L; 5-Speed Automatic Transmission, HMD, 5L50-E, Electronic, Overdrive; XLR Convertible

Categories Close X

Currently selected

Front Suspension, Steering

Other Categories

Body Moldings, Sheet Metal, Rear Compartment Hardware, Roof Hardware

Body Mounting, Air Conditioning, Audio/Entertainment

Brakes

Brakes, Rear Axle, Propeller Shaft, Wheels, Tires

Cooling System, Grille, Oil System

Engine

Folding Top, Interior Trim, Front Seat Trim, Seat Belts

Frames, Springs, Shocks, Bumpers, Fascias

Front End Sheet Metal, Heater

Fuel System, Exhaust, Emission System

Maintenance Parts, Fluids, Capacities, Electrical Connectors

Rear Seat Trim, Carpet

Starter, Generator, Ignition, Electrical, Lamps

Transmission - Automatic

Windshield, Wiper, Mirrors, Instrument Panel, Console, Doors

Parts Questions

Sort by:

Recommended

Part No. & Part Description

Price & Qty.

Part No. &
Part Description

11514597
NUT, Steering Gear Shaft, NUT,STEERING GEAR COUPLING(PART OF 39)(M10X1.5 6H,21.8OD)(2.383)
$8.42 $4.69
1
Add To Cart

26001827
BEARING KIT, Steering Column, BEARING KIT,STEERING SHAFT UPPER(INCLUDES 14,16)
$78.79 $50.07
1
Add To Cart

11609658
NUT, Steering Wheel, NUT,STEERING WHEEL(PART OF 39)(M14X1.5)(10 THICK)(NON-FLANGED NYLON INSERT HEXAGON)(6.518)
$7.20 $4.35
1
Add To Cart

SPRING, Steering Column
26055299
SPRING, STEERING SHAFT UPPER BEARING(PART OF 39,56)
Require Quantity: 02
Package Quantity: 1
$7.39 $4.69
1
Add To Cart
26100228
SPRING, STEERING COLUMN TILT(PART OF 39)
$19.14 $13.05
1
Add To Cart
26081434
SPRING, STEERING COLUMN TELESCOPE ACTUATOR CABLE(PART OF 39)(17.97MM LONG,5.40MM INSIDE DIAMETER)
- Require Quantity: 02
- Package Quantity: 1

26058124
BOLT, Steering Gear Shaft, BOLT,STEERING GEAR COUPLING(PART OF 39)(M10X1.5X35,33.5THD)(W/RETAINER)(UPPER TO STEERING COLUMN)
- Replaced By: 26046722
$7.38 $4.69
1
Add To Cart

15231641
SEAT, Steering Column, SEAT,STEERING SHAFT UPPER BEARING RACE(PART OF 39,56)
- Require Quantity: 02
- Package Quantity: 1
$18.77 $11.93
1
Add To Cart

19179794
CLIP, Steering Gear Hydraulic Valve, CLIP,STEERING ANGLE SENSOR LEAD(PART OF 39)
$7.51 $4.77
1
Add To Cart

5694191
RING, Steering Column Housing, RING,STEERING SHAFT LOCK PLATE RETAINER(PART OF 39,56)(6.524)
- Require Quantity: 02
- Package Quantity: 1
$10.14 $6.46
1
Add To Cart

COLUMN, Steering
10374167
COLUMN, STEERING(INCLUDES 1-38,40-52,54-57)(SHALE)
Fitting Vehicle Options: YV(15I)(EXC NP7)
$1145.02 $882.49
1
Add To Cart
26101906
COLUMN, STEERING(INCLUDES 1-38,40-52,54-57)
- Fitting Vehicle Options: Y(NP7)(EXPORT)
10374166
COLUMN, STEERING(INCLUDES 1-38,40-52,54-57)(EBONY)
- Fitting Vehicle Options: YV(EXC NP7)

20808029

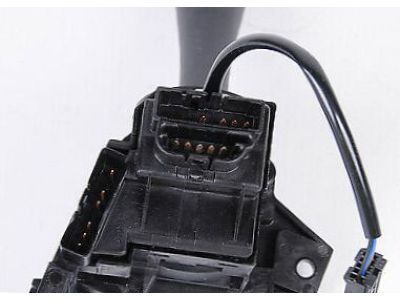

SWITCH, Turn Signal Lamp, SWITCH,TURN SIGNAL & HEADLAMP & WINDSHIELD WIPER & HAZARD WARNING & CRUISE CONTROL(PART OF 39)(2.485)
$109.03 $69.51
1
Add To Cart

15231656
SENSOR, Steering Column, SENSOR,STEERING WHEEL POSITION(PART OF 39)(PANCAKE STYLE W/SERRATIONS AT SHAFT INTERFACE)
$186.40 $107.09
1
Add To Cart

26049186
PLATE, Turn Signal Switch Canceling, PLATE,TURN SIGNAL SWITCH CANCEL CAM POSITION(PART OF 39,56)(W/SHIELD)(6.521)
$9.58 $6.09
1
Add To Cart

BOLT, Steering Column
26064459
BOLT, STEERING COLUMN TILT WHEEL ACTUATOR(PART OF 30,39)(M4.2X1.59X11.5)(W/WSHR-TORX HEAD)
Require Quantity: 02
Package Quantity: 1
$19.77 $12.40
1
Add To Cart
26064459
BOLT, STEERING COLUMN TELESCOPE ACTUATOR(PART OF 39,47)(M4.2X1.59X11.5)(W/WSHR-TORX HEAD)
- Require Quantity: 02
- Package Quantity: 1
$19.77 $12.40
1
Add To Cart
26075085
BOLT, STEERING COLUMN TELESCOPE ACTUATOR(PART OF 39)(M8X18X25)
- Require Quantity: 02
- Package Quantity: 1
$18.66 $11.86
1
Add To Cart
26075531
BOLT, STEERING COLUMN TELESCOPE ACTUATOR(PART OF 39)(M5X0.8X24)
- Require Quantity: 02
- Package Quantity: 1
$24.10 $15.32
1
Add To Cart
26098504
BOLT, STEERING COLUMN TELESCOPE ACTUATOR(PART OF 39)(M6X1.0X18)(T-30 TORX RECESS)
- Require Quantity: 02
- Package Quantity: 1
$12.33 $7.72
1
Add To Cart
26064458
BOLT, STEERING COLUMN HOUSING SUPPORT(PART OF 39)(M6X1.0X34)(EXTERNAL TORX)
- Require Quantity: 04
- Package Quantity: 1
$9.35 $5.94

SHAFT, Steering Column
26074286
SHAFT, UPPER STEERING(PART OF 39,56)
Fitting Vehicle Options: YV(15I,19I)(EXC NP7)
$314.49 $190.01
1
Add To Cart
26075655
SHAFT, UPPER STEERING(PART OF 39,56)
- Fitting Vehicle Options: YV(NP7,15I,19I)(EXPORT), Y(NP7,N33,02I,19I,31I,36I)(EXPORT)
$94.39 $71.28
1
Add To Cart

MOTOR, Steering Column
26098445
MOTOR, STEERING COLUMN TILT WHEEL ACTUATOR(INCLUDES 28,31-33)(PART OF 39)(INCLUDE CABLE,SENSOR,BRACKET & BOLT)
Fitting Vehicle Options: YV
$62.37 $48.98
1
Add To Cart
26098444
MOTOR, STEERING COLUMN TELESCOPE ACTUATOR(PART OF 39)(INCLUDES 44-46)(INCLUDES MOTOR,SENSOR,BRACKET,BOLT)
- Fitting Vehicle Options: Y
$147.46 $93.72

26011609
WASHER, Inflatable Restraint System, WASHER,STEERING WHEEL AIRBAG COIL(PART OF 39)
$17.97 $12.02
1
Add To Cart

26036521
PIN, Steering Column, PIN,STEERING COLUMN PIVOT(PART OF 39)
- Require Quantity: 02
- Package Quantity: 1
$11.74 $7.10
1
Add To Cart

BOLT, Steering Column Housing
26071469
BOLT, STEERING COLUMN HOUSING LOCK(PART OF 39)(FLAT SCREW, 9MM LONG)(4.012)
Require Quantity: 02
Package Quantity: 1
$2.20 $1.39
1
Add To Cart
26069932
BOLT, STEERING COLUMN HOUSING LOCK(PART OF 39)(M5.28X1.81X15.12)(PLASTITE THREAD TWIN HELIX,T-25 TORX RECESS-INTERNAL,PAN,15MM LONG)(2.188)
- Require Quantity: 02
- Package Quantity: 1
$9.92 $6.30

26070027
RETAINER, Steering Gear Hydraulic Valve, RETAINER,STEERING ANGLE SENSOR(PART OF 39)(27.82 INSIDE DIAMETER,1.27MM THICK)(EXTERNAL SNAP)
$15.46 $9.69
1
Add To Cart

26075084
RETAINER, Steering Column, RETAINER,STEERING SHAFT LOWER BEARING SEAL(PART OF 39)
$116.86 $70.62
1
Add To Cart

26078023
SUPPORT, Steering, SUPPORT,STEERING COLUMN HOUSING(PART OF 39)(INCLUDES TILT ACTUATOR)(FLOOR SHIFT APPLICATIONS)
$65.37 $48.76
1
Add To Cart

HOUSING, Steering
26089795
HOUSING, STEERING COLUMN(W/UPPER STEERING SHAFT)(INCLUDES 6-11,15-17,20)(PART OF 39)
Fitting Vehicle Options: Y(EXC NP7)
$374.14 $211.91
1
Add To Cart
26078063
HOUSING, STEERING COLUMN(PART OF 39,56)(W/BEARING)
- Fitting Vehicle Options: YV
26095949
HOUSING, STEERING COLUMN(W/UPPER STEERING SHAFT)(INCLUDES 6-11,15-17,20)(PART OF 39)
- Fitting Vehicle Options: Y(NP7)

COVER KIT, Steering
26090264
COVER KIT, STEERING COLUMN TRIM(PART OF 39)(SHALE)
Fitting Vehicle Options: Y(15I,18I)
$52.95 $41.59
1
Add To Cart
26089791
COVER KIT, STEERING COLUMN TRIM(PART OF 39)(EBONY)
- Fitting Vehicle Options: Y(19I)

COVER, Steering
26089793
COVER, STEERING COLUMN HOUSING TRIM EXTENSION(PART OF 39)(EBONY)
Fitting Vehicle Options: YV(19I)
$75.71 $47.48
1
Add To Cart
26090265
COVER, STEERING COLUMN HOUSING TRIM EXTENSION(PART OF 39)(SHALE)
- Fitting Vehicle Options: Y(15I,18I)
$57.73 $25.95
1
Add To Cart
26094175
COVER, STEERING COLUMN JACKET LOWER(PART OF 39)(SHIELD)
- Fitting Vehicle Options: Y
$62.16 $48.82
1
Add To Cart

26089806
HARNESS, Steering Column, HARNESS,STEERING COLUMN WIRING(PART OF 39)
$208.15 $70.74
1
Add To Cart

CABLE, Steering Column

26089895
CABLE, STEERING COLUMN TILT WHEEL ACTUATOR(PART OF 30,39)
$65.51 $51.45
1
Add To Cart
26089896
CABLE, STEERING COLUMN TELESCOPE ACTUATOR(PART OF 39)

26094026
ACTUATOR, Steering Column, ACTUATOR,STEERING COLUMN TELESCOPE(PART OF 39)
$28.42 $23.18
1
Add To Cart

15907888
SHAFT, Steering Column Intermediate, SHAFT,INTERMEDIATE STEERING

1999365

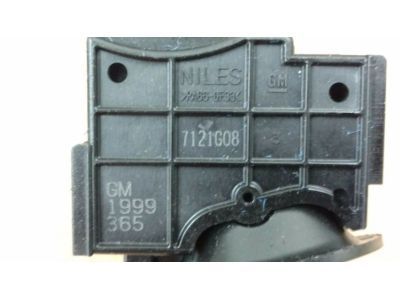

SWITCH, Windshield Wiper Control, SWITCH,WINDSHIELD WIPER & WINDSHIELD WASHER(PART OF 39)

26044739
CAM, Turn Signal Switch Canceling, CAM,TURN SIGNAL SWITCH CANCEL(PART OF 39,56)(GRAY)(W/HORN CONTACT)

26056695
SEAL, Steering Gear Shaft, SEAL,STEERING SHAFT(PART OF 39)
- Require Quantity: 02
- Package Quantity: 1

26066321
SPHERE KIT, Steering Gear Shaft, SPHERE KIT,STEERING SHAFT(INCLUDES 22)(PART OF 39)(USES ALUMINUM TUBULAR LOWER SHAFT W/ALUMINUM YOKE)
- Require Quantity: 02
- Package Quantity: 1

BOLT, Turn Signal Lamp
26069932
BOLT, TURN SIGNAL SWITCH BRACKET(PART OF 39,56)(M5.28X1.81X15.12)(PLASTITE THREAD TWIN HELIX,T-25 TORX RECESS-INTERNAL,PAN,15MM LONG)(2.188)
Require Quantity: 04
Package Quantity: 1
$9.92 $6.30
26069932
BOLT, TURN SIGNAL SWITCH BRACKET(PART OF 39)(M5.28X1.81X15.12)(PLASTITE THREAD TWIN HELIX,T-25 TORX RECESS-INTERNAL,PAN,15MM LONG)(2.188)
- Require Quantity: 04
- Package Quantity: 1
$9.92 $6.30

26078225
BEARING, Steering Column, BEARING,STEERING COLUMN TILT WHEEL ACTUATOR(PART OF 39)(*KIT1)
- Require Quantity: 02
- Package Quantity: 1

26090711
SWITCH, Steering Column, SWITCH,STEERING COLUMN TILT WHEEL & TELESCOPE(PART OF 39)

26094187
PLATE, Steering Column Housing, PLATE,STEERING SHAFT LOCK(PART OF 39,56)(W/SHIELD)

26094275
BRACKET, Turn Signal Lamp, BRACKET,TURN SIGNAL SWITCH(PART OF 39,56)

26095806
LOCK, Steering Column, LOCK,STEERING COLUMN ELECTRONIC(PART OF 39,56)

89060610
COIL KIT, Inflatable Restraint System, COIL KIT,STEERING WHEEL AIRBAG(PART OF 39)

12355066
STRAP, WIRING HARNESS(PART OF 39)
- Require Quantity: 04
- Package Quantity: 25
$0.42 $0.25
25
Add To Cart

274414
RING, EXTERNAL,SNAP,FITS M19 OR.75" SHAFT,STEEL,PLAIN(PART OF 39)
$0.12 $0.08
10
Add To Cart
