Engine Assembly-Oil Pump,Pan & Related Parts fit your 2002 GMC Envoy 2WD

Currently shopping for

2002 GMC Envoy 2WD

Change Vehicle

Vehicle Options

6 Cyl 4.2L; Envoy 4 Door

Vehicle Options

6 Cyl 4.2L; Envoy 4 Door

Categories Close X

Currently selected

Engine

Other Categories

Body Mounting, Air Conditioning, Audio/Entertainment

Brakes

Brakes, Rear Axle, Propeller Shaft, Wheels, Tires

Cab And Body Structure, Mirrors, Doors, Trim, Seat Belts, Wipers

Cooling System, Grille, Oil System

Frames, Springs, Shocks, Bumpers

Front Axle, Front Suspension, Steering

Front End Sheet Metal, Heater

Fuel System, Exhaust, Emission System

Maintenance Parts, Fluids, Capacities, Electrical Connectors

Rear Body Structure, Moldings & Trim, Cargo Stowage

Starter, Generator, Ignition, Electrical, Lamps

Transmission - Automatic

Transmission - Manual

Parts Questions

Sort by:

Recommended

Part No. & Part Description

Price & Qty.

Part No. &
Part Description

12616850
SEAL, Engine Oil Pan Drain Plug, SEAL,OIL PAN DRAIN PLUG(O RING)(PART OF 5)(DIAMETER 19.39)
$7.35 $4.46
1
Add To Cart

19210285
FILTER, Engine Oil Filter, FILTER,OIL
- Replaced By: 12731179
$10.60 $5.91
1
Add To Cart

SEAL, Engine Oil Level

24504031
SEAL, OIL LEVEL INDICATOR(O RING)(6.07 INSIDE DIAMETER; 1.78 DIAMETER)
$17.88 $10.80
1
Add To Cart
24504031
SEAL, OIL LEVEL INDICATOR TUBE(O RING)(6.07 INSIDE DIAMETER; 1.78 DIAMETER)
$17.88 $10.80
1
Add To Cart

12378521
SEALANT, Maintenance Products, SEALANT,ROOM TEMPERATURE VULCANIZING ENGINE SILICONE 5.3OZ CART

11562588

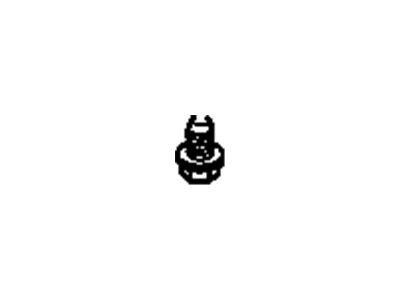

PLUG, Engine Oil Pan Drain, PLUG,OIL PAN DRAIN(PART OF 5)(M12X1.75X25)(W/SEAL)(EXCEPT MAGNET)(W/HEXAGON HEAD)
$12.40 $7.48
10
Add To Cart

24100119
SPRING, Engine Oil Pressure, SPRING,OIL PRESSURE RELIEF VALVE(PART OF 21)
$10.78 $6.85
1
Add To Cart

25014612
VALVE, Engine Oil Filter, VALVE,OIL FILTER BYPASS(W/O VAPOR SEPARATOR)(OPENING PRESSURE 21 PSI NOMINAL)(PART HAS A 16.10MM MAX OUTSIDE DIAMETER & FITS A 15.84 HOLE IN BLOCK)
$9.58 $5.34
1
Add To Cart

11517903
STUD, Engine Oil Pan, STUD,OIL PAN(LH-POSITION #5, RH-POSITION #1)(8.981)
$5.42 $3.45
1
Add To Cart

24576940
SEAL, Engine Front Cover, SEAL,ENGINE FRONT COVER(PART OF 21)(PLUG)

24575062
FITTING, Engine Oil Filter, FITTING,OIL FILTER
$12.59 $7.99
1
Add To Cart

12628565

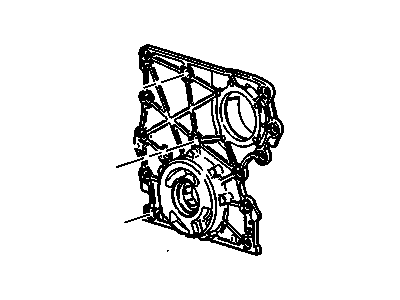

COVER, Engine Front Cover, COVER,ENGINE FRONT(W/OIL PMP)(INCLUDES SEAL(FRONT COVER),GEARS, PLUG AND RELIEF VALVE)(INCLUDES 11-15,19,20)(2ND DESIGN COVER FOR USE WITH FLAT SEAL AT OIL PUMP PICK-UP TUBE/SCREEN.MUST USE WITH 2ND DESIGN SCREEN P/N 12589061,HAVING FLAT SEAL.")

12590589
TUBE, Engine Oil Level, TUBE,OIL LEVEL INDICATOR(INCLUDE SEAL)
$99.73 $49.45
1
Add To Cart

24577504
BOLT, Engine Front Cover, BOLT,ENGINE FRONT COVER(M5X0.8-6G)
$5.40 $3.41
1
Add To Cart

12557752
SEAL, Engine Oil Pump, SEAL,OIL PUMP SUCTION PIPE(BLUE)(1.724)
$8.57 $5.17
1
Add To Cart

12580810
INDICATOR, Engine Oil Level, INDICATOR,OIL LEVEL(INCLUDES SEAL)
$44.32 $28.16
1
Add To Cart

12603780
SENSOR, Engine Oil Level, SENSOR,ENGINE OIL LEVEL & TEMPERATURE
$41.73 $25.21
1
Add To Cart

12565092
PLUG, Engine Oil Pan, PLUG,OIL PAN HOLE(PART OF 5)(MOUNTS IN OIL PAN)
$5.83 $3.70

12570894
SCREEN, Engine Oil Pump, SCREEN,OIL PUMP(W/SUCTION PIPE)

24577281
BOLT, Engine Oil Pump, BOLT,OIL PUMP(M6X1.0X23 THREAD..MATERIAL:GM500M(9.8)STEEL..FINISH:PER GM4435M,CODE G.)(PART OF 21)(M6X1.0X22)
- Require Quantity: 07
- Package Quantity: 1

24577551

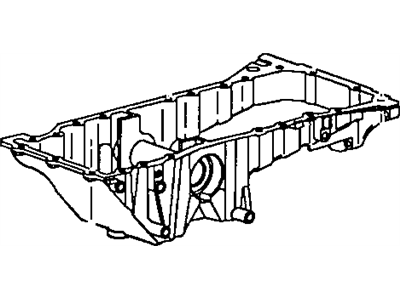

PAN, Engine Oil, PAN,OIL(INCLUDES 9,28,31)(INCLUDES BAFFLES,SENSOR,PLUG,BOLT)

11514596
NUT, HEX FLANGED HEAD,M8X1.25,17.9 OUTSIDE DIAMETER,738 THICK,13MM HEXAGON,10, PHOSPHATE ZINC ORGANIC - FLAKE(8.915)
- Require Quantity: 02
- Package Quantity: 1
$12.60
1
Add To Cart

11588714
BOLT, HEX FLANGED HEAD,M6X1X30,22.7 THREAD,14.2 OUTSIDE DIAMETER,8.8,GMW3359, M-POINT.
$9.71 $6.18
1
Add To Cart

11561026
BOLT, HEX FLANGED HEAD,THREAD,14.2 OUTSIDE DIAMETER,9.8,GMW3200,MACHINE,HEADER POINT
$36.02 $22.89
1
Add To Cart

11516424
BOLT, HEX FLANGED HEAD,M6X1X25,14.2 O.D.,HEADER POINT,9.8,PHOSPHATE ZINC ORGANIC
$13.05
1
Add To Cart

11517523
BOLT, HEX FLANGED HEAD,M6X1X45,17THD,14.2 O.D.,HEADER POINT,9.8,6280M
- Require Quantity: 02
- Package Quantity: 1
$18.54 $11.79
1
Add To Cart

11517692
BOLT-HEX FLANGED HEAD, M6X1X25,21.5 THREAD,14.2 OUTSIDE DIAMETER,9.8,6280M,MACHINE,6124M,HEADER POINT
$4.81 $3.06
1
Add To Cart

11519869
BOLT-HEX FLANGED HEAD, M8X1.25X34,29.65 THREAD,18 OUTSIDE DIAMETER,9.8,7114M,MACHINE,HEADER POINT
- Require Quantity: 19
- Package Quantity: 1
$4.91 $3.10
1
Add To Cart

11519886
BOLT, HEX FLANGED HEAD,M6X1X28,24.5 THREAD,14.2 OUTSIDE DIAMETER,9.8,6280M,MACHINE,HEADER-PTPT
- Require Quantity: 03
- Package Quantity: 1
- Replaced By: 11900244
$9.84 $6.28
1
Add To Cart

11588719
BOLT, HEX FLANGED HEAD,M6X1X60,18MM THREAD,14.2 O.D.,8.8,3359GMW
- Require Quantity: 02
- Package Quantity: 1
$13.05
1
Add To Cart

11609473
STUD, HEX FLANGED HEAD,6X1X25,6X1X16,14.2 OUTSIDE DIAMETER,47.6 TL,9.8,6280M,HEADER-PTS(OIL LEVEL INDICATOR TUBE)
$10.89 $6.92

Genuine GM Parts, the Right Choice

GMPartsGiant.com offers the wholesale prices for genuine 2002 GMC Envoy 2WD parts. Parts like Engine Assembly-Oil Pump,Pan & Related Parts are shipped directly from authorized GM dealers and backed by the manufacturer's warranty. Parts fit for the following vehicle options. Engine: 6 Cyl 4.2L. Model Code: 4 DOOR.
