Vapor Canister Lines fit your 2002 Chevrolet S10 2WD

Currently shopping for

2002 Chevrolet S10 2WD

Change Vehicle

Categories Close X

Currently selected

Fuel System, Exhaust, Emission System

Other Categories

Body Mounting, Air Conditioning, Audio/Entertainment

Brakes

Brakes, Rear Axle, Propeller Shaft, Wheels, Tires

Cab And Body Structure, Mirrors, Doors, Trim, Seat Belts, Wipers

Cooling System, Grille, Oil System

Engine

Frames, Springs, Shocks, Bumpers

Front Axle, Front Suspension, Steering

Front End Sheet Metal, Heater

Maintenance Parts, Fluids, Capacities, Electrical Connectors

Rear Body Structure, Moldings & Trim, Cargo Stowage

Starter, Generator, Ignition, Electrical, Lamps

Transmission - Automatic

Transmission - Manual

Parts Questions

Sort by:

Recommended

Part No. & Part Description

Price & Qty.

Part No. &
Part Description

BOLT, Hex

11588711
BOLT, HEX FLANGED HEAD,M6X1X16, 10 THREAD, 14.2 OUTSIDE DIAMETER, 8.8 STEEL, GMW3359(EVAP EMISSION CANISTER PURGE HARNESS CLIP)
$7.39 $4.69
1
Add To Cart
24503695
BOLT, HEXAGON W/CONICAL WASHER,M8X1.25X30,25THD,17 O.D.,9.8,PO(EVAP EMISSION CANISTER BRACKET)
- Require Quantity: 02
- Package Quantity: 10
$11.51 $7.31
10
Add To Cart

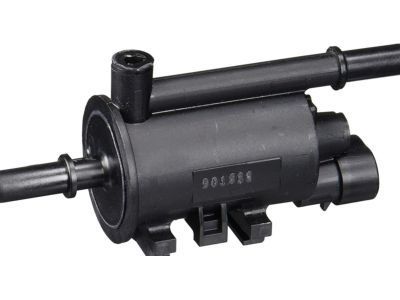

VALVE, Fuel Tank Evaporator/Purge Control
1997278
VALVE, EVAP EMISSION CANISTER PURGE SOLENOID(W/BRACKET)(W/O BRACKET)(MATING CONNECT USE 13585860)
Fitting Vehicle Options: S1(L43,M30,NC1,NF4,NF7), S1(L43,MW2,NC1,NF4,NT3,NF7)
$69.54 $36.85
1
Add To Cart
12559015
VALVE, EVAP EMISSION CANISTER CONTROL(SQUARE VALVE)(MATING CONNECTOR USE 13585860)
- Fitting Vehicle Options: S108(03), S106(03-53)(L43)
$44.34 $23.50
1
Add To Cart

TUBE, Early Fuel Evaporation
12578234
TUBE, EVAP EMISSION CANISTER PURGE(W/VALVE)
Fitting Vehicle Options: ST1(L35)
$35.01 $21.16
1
Add To Cart
24576414
TUBE, EVAP EMISSION CANISTER PURGE(INCLUDES CONNECTORS & TAPE)
- Fitting Vehicle Options: S1(L43,M30,MW2,NC1,NF4,NF7,NT3)

CLIP, Hydraulic Brake Pipe

15697848
CLIP, BRAKE & FUEL PIPE(CUSTOMER MAY NEED TO CUT EXTRA GROOVE OFF AS REQUIRED)
15960054
CLIP, BRAKE & FUEL PIPE(4 LINES DIVIDED W/O SCREW)

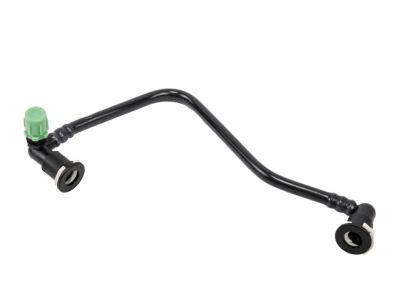

PIPE, Early Fuel Evaporation
15734508
PIPE, EVAP EMISSION REAR(INCLUDES CONNECTOR & LABEL)(INDIVIDUAL COMPONENTS ARE NOT SOLD SEPARATELY)
Fitting Vehicle Options: S106(53)(L43)
$215.68 $114.31
1
Add To Cart
15023817
PIPE, EVAP EMISSION FRONT
- Fitting Vehicle Options: S1(L35)
15054304
PIPE, EVAP EMISSION CANISTER PURGE REAR
- Fitting Vehicle Options: S106(03)(L43), S106(53)(L43)
15734507
PIPE, EVAP EMISSION REAR(INCLUDES CONNECTOR & LABEL)(INDIVIDUAL COMPONENTS ARE NOT SOLD SEPARATELY)
- Fitting Vehicle Options: S106(03)(L43)
15734509
PIPE, EVAP EMISSION REAR(INCLUDES CONNECTOR & LABEL)(INDIVIDUAL COMPONENTS ARE NOT SOLD SEPARATELY)
- Fitting Vehicle Options: S108(03)

12089625
CLIP, Early Fuel Evaporation, CLIP,EVAP EMISSION CANISTER PURGE HARNESS(PART OF 2)(BLACK FINISH)

15684224
PROTECTOR, PROTECTOR,FUEL FEED & EVAP EMISSION & RETURN HARNESS(BLACK)(W/PUSH PINION RETAINER)

BRACKET, Fuel Tank Evaporator/Purge Control
15742242
BRACKET, EVAP EMISSION CANISTER SOLENOID VALVE
Fitting Vehicle Options: S106(03-53)(L43), S108(03)
15992101
BRACKET, EVAP EMISSION CANISTER(FRAME MOUNTED)
- Fitting Vehicle Options: S105,106(L43)

15763505
PIPE, Fuel Line, PIPE,FUEL INJECTION FUEL FEED & EVAP EMISSION & RETURN FRONT(SEE "FUEL SUPPLY SYSTEM" FOR DETAILS)

17113684
CANISTER, Fuel Tank Evaporator/Purge Control, CANISTER,EVAP EMISSION(INCLUDE BRACKET & PIPE)

24576415
HARNESS, Early Fuel Evaporation, HARNESS,EVAP EMISSION CANISTER PURGE(INCLUDES 1,3,5,6)(INCLUDES CLIP, CONNECTORS, TAPE & VALVES)(INDIVIDUAL COMPONENTS ARE NOT SOLD SEPARATELY)

11570383
CLAMP, SPRINGBAND,24 NOMINAL DIAMETER, 15 THICK, STEEL, GMW14083(EVAP EMISSION CANISTER HOSE)
- Require Quantity: 02
- Package Quantity: 1
$41.38 $20.85
1
Add To Cart

11515358
SCREW, HEXAGON W/FLAT WASHER,TAP,M8X1.25X20,17 O.D.,STEEL,PO(EVAP EMISSION CANISTER SOLENOID VALVE BRACKET)
$4.14 $2.50
10
Add To Cart

9438383
HOSE, FUEL,OIL EVAP 5/8"X25'(EVAP EMISSION CANISTER SOLENOID VALVE)
$51.30 $30.99
1
Add To Cart

11509542
SCREW, HEX WASHER HEAD,SELF TAP,M6.3X1.81X16,12.7 O.D.,ALUMINUM BASECOAT POINT,6010M,ZINC(EVAP EMISSION CANISTER BRACKET)

Genuine GM Parts, the Right Choice

GMPartsGiant.com offers the wholesale prices for genuine 2002 Chevrolet S10 2WD parts. Parts like Vapor Canister Lines are shipped directly from authorized GM dealers and backed by the manufacturer's warranty. Parts fit for the following vehicle options. Engine: 4 Cyl 2.2L Flex, 6 Cyl 4.3L. Model Code: PICKUP.
