Hoses & Pipes/Heater fit your 1997 Pontiac Trans Sport

Currently shopping for

1997 Pontiac Trans Sport

Change Vehicle

Vehicle Options

6 Cyl 3.4L MFI, HO; 4-Speed Automatic Transmission, 4T60-E

Vehicle Options

6 Cyl 3.4L MFI, HO; 4-Speed Automatic Transmission, 4T60-E

Categories Close X

Currently selected

Front End Sheet Metal, Heater

Other Categories

Body Moldings, Sheet Metal, Rear Compartment Hardware, Roof Hardware

Body Mounting, Air Conditioning, Audio/Entertainment

Body Wiring, Roof Trim

Brakes

Brakes, Rear Axle, Propeller Shaft, Wheels, Tires

Cooling System, Grille, Oil System

Engine

Frames, Springs, Shocks, Bumpers, Fascias

Front Suspension, Steering

Fuel System, Exhaust, Emission System

Interior Trim, Front Seat Trim, Seat Belts

Maintenance Parts, Fluids, Capacities, Electrical Connectors

Rear Glass, Seat Parts, Adjuster

Rear Seat Trim, Carpet

Starter, Generator, Ignition, Electrical, Lamps

Transmission - Automatic

Windshield, Wiper, Mirrors, Instrument Panel, Console, Doors

Parts Questions

Sort by:

Recommended

Part No. & Part Description

Price & Qty.

Part No. &
Part Description

NUT, Spring
11518121
NUT, AUXILIARY HEATER & A/C EVAPORATOR & BLOWER MODULE
Fitting Vehicle Options: U(C34)
Require Quantity: 02
Package Quantity: 1
Replaced By: 88961517
$7.39 $4.69
1
Add To Cart
11518121
NUT, AUXILIARY HEATER
- Fitting Vehicle Options: U(C36)
- Require Quantity: 02
- Package Quantity: 1
- Replaced By: 88961517
$7.39 $4.69
1
Add To Cart

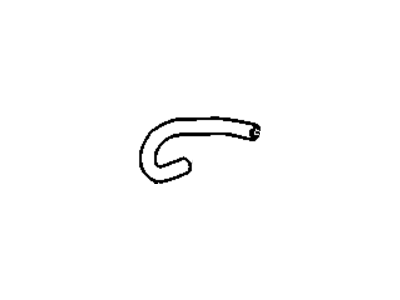

HOSE, Throttle Body Coolant Supply

24504912
HOSE, THROTTLE BODY HEATER INLET(9MM INSIDE DIAMETER 3MM WALL)(FORMED 90 DEGREE BEND,43.5 LONG EACH END)
$17.55 $9.79
1
Add To Cart
24504913
HOSE, THROTTLE BODY HEATER OUTLET
$27.62 $14.63
1
Add To Cart

SEAL, Engine Coolant By-Pass

10189205
SEAL, THERMOSTAT BYPASS PIPE ADAPTER (O RING)(PART OF 9)(YELLOW)
$14.42 $12.60
1
Add To Cart
10189205
SEAL, THERMOSTAT BYPASS PIPE ADAPTER (O RING)(PART OF 14)(YELLOW)
$14.42 $12.60
1
Add To Cart

VALVE, Engine Air Cooling Control

10070107
VALVE, ENGINE COOLANT AIR BLEED(PART OF 9)
$18.78 $10.47
1
Add To Cart
10070107
VALVE, ENGINE COOLANT AIR BLEED(PART OF 14)
$18.78 $10.47
1
Add To Cart

10182356
HOSE, Engine Coolant By-Pass, HOSE,THERMOSTAT BYPASS
$23.15 $14.72
1
Add To Cart

14103956
NUT, Heater, NUT,AUXILIARY HEATER INLET & OUTLET HOSE CLIP(5 X 1.6)(PAL NUT)(2.575)
- Require Quantity: 04
- Package Quantity: 20
$2.95 $1.87
20
Add To Cart

PIPE, Engine Coolant By-Pass
12590279
PIPE, THERMOSTAT BYPASS(PART OF LOWER INTAKE)(USE SEALANT 19332211(USA) OR 10953488(CANADA)
Fitting Vehicle Options: U
$57.81 $36.74
1
Add To Cart
24506814
PIPE, THERMOSTAT BYPASS(INCLUDES 10,12,23)
- Fitting Vehicle Options: U(EXC KC4)
24506814
PIPE, THERMOSTAT BYPASS(INCLUDES 15,17,39)
- Fitting Vehicle Options: U(EXC KC4)
24506815
PIPE, THERMOSTAT BYPASS(INCLUDES 10,12)
- Fitting Vehicle Options: U(KC4)
24506815
PIPE, THERMOSTAT BYPASS(INCLUDES 15,17,39)
- Fitting Vehicle Options: U(KC4)

12568797
COVER, Engine Front Cover, COVER,ENGINE FRONT(SEE ENGINE FRONT COVER & COOLING GROUP 0.000 FOR DETAIL ILLUSTRATED VIEW)(LESS DEADNER,BOLT)

HOSE, Heater
10246449
HOSE, HEATER OUTLET(INCLUDES 2,3,4)(INCLUDES THREE PIECES OF HOSE)(PART OF 38)
Fitting Vehicle Options: U(C34,C36)
$33.55 $20.28
1
Add To Cart
19213708
HOSE, AUXILIARY HEATER INLET & OUTLET(FRONT)(INCLUDES 5,7-9,INCLUDES THREE PIECES OF HOSE)(PART OF 38)
- Fitting Vehicle Options: U(C34,C36)
$229.64 $84.00
1
Add To Cart
19213708
HOSE, AUXILIARY HEATER INLET & OUTLET(FRONT HALF)(INCLUDES 1-9,28,30)(KENT-MOORE TUBING REPAIR KIT J41425 & CONNECTOR KIT J41425-625 REQUIRED FOR INSTALLATION)
- Fitting Vehicle Options: U(C34,C36)
$229.64 $84.00
1
Add To Cart
10239238
HOSE, HEATER INLET(INCLUDES 1)
- Fitting Vehicle Options: U(C60)(EXC C36)
10239245
HOSE, HEATER OUTLET(INCLUDES 3)
- Fitting Vehicle Options: U(C60)(EXC C36)
12369541
HOSE, AUXILIARY HEATER INLET & OUTLET(REAR HALF)(INCLUDES 28,30,32,33)(KENT-MOORE TUBING REPAIR KIT J41425 & CONNECTOR KIT J41425-625 REQUIRED FOR INSTALLATION)
- Fitting Vehicle Options: U(C34,C36)

TEE, Heater
10289601
TEE, AUXILIARY HEATER OUTLET HOSE(PART OF 1,38)
Fitting Vehicle Options: U(C34), U(C36)
$43.05 $33.81
1
Add To Cart
10289601
TEE, AUXILIARY HEATER INLET HOSE(PART OF 6,38)
- Fitting Vehicle Options: U(C36), U(C34)
$43.05 $33.81
1
Add To Cart

10299986

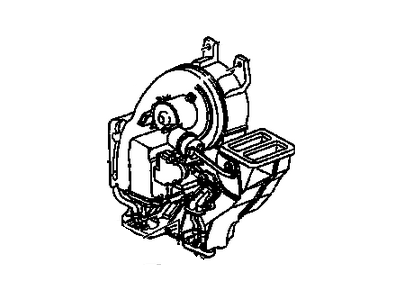

MODULE, Heater, MODULE,AUXILIARY HEATER & BLOWER(SEE HEATER & BLOWER MODULE REAR UNIT/C36,GROUP 8.000 FOR DETAIL ILLUSTRATED VIEW)

10442771
MODULE, Air Conditioner (Complete), MODULE,A/C EVAPORATOR & BLOWER(SEE AC & HEATER MODULE REAR UNIT/C34,GROUP 9.000 FOR DETAIL ILLUSTRATED VIEW)(INCLUDES REAR A/C EVAP)

15259473
CLIP, Heater, CLIP,HEATER INLET & OUTLET PIPE(PART OF 31,38)
- Require Quantity: 02
- Package Quantity: 1

24503682
NIPPLE, Heater Coolant Flow, NIPPLE,HEATER WATER ENGINE INLET(5/8 FLOW CONTROL)(NO-FLOW WASHER)(W/FLOW RESTRICTOR)

CLAMP, Throttle Body Coolant Supply
24506377
CLAMP, THROTTLE BODY HEATER OUTLET HOSE(SPRING BAND,14.9-17.5 1D,1 THICK BAND,10 WIDE,MODIFIED SAE 6150)
Require Quantity: 02
Package Quantity: 1
24506377
CLAMP, THROTTLE BODY HEATER INLET HOSE(SPRING BAND,14.9-17.5 1D,1 THICK BAND,10 WIDE,MODIFIED SAE 6150)
- Require Quantity: 02
- Package Quantity: 1

24506812
PIPE, Heater, PIPE,HEATER INLET

11517996
NUT, HEX FLANGED HEAD,M10X1.5,11.2 THICK,21.5 OUTSIDE DIAMETER,10,7111M,ALL METAL PREVENT TORQUE(THERMOSTAT BYPASS PIPE CLIP)
- Fitting Vehicle Options: U
$7.38 $4.46
1
Add To Cart

11514596
NUT, HEX FLANGED HEAD,M8X1.25,17.9 OUTSIDE DIAMETER,738 THICK,13MM HEXAGON,10, PHOSPHATE ZINC ORGANIC - FLAKE(THERMOSTAT BYPASS PIPE CLIP)(8.915)
- Fitting Vehicle Options: U
$12.60
1
Add To Cart

11514596
NUT, HEX FLANGED HEAD,M8X1.25,17.9 OUTSIDE DIAMETER,738 THICK,13MM HEXAGON,10, PHOSPHATE ZINC ORGANIC - FLAKE(HEATER INLET PIPE)(8.915)
- Fitting Vehicle Options: U
$12.60
1
Add To Cart

3530297
NUT, HEX FLANGED HEAD,M6X1,5.85THK,14.2 O.D.,10,ZINC ORGANIC(AUXILIARY HEATER & A/C EVAPORATOR & BLOWER MODULE)
- Fitting Vehicle Options: U(C34)
$7.26 $4.05
1
Add To Cart

3530297
NUT, HEX FLANGED HEAD,M6X1,5.85THK,14.2 O.D.,10,ZINC ORGANIC(AUXILIARY HEATER)
- Fitting Vehicle Options: U(C36)
$7.26 $4.05
1
Add To Cart

11561025
BOLT, HEX FLANGED HEAD,M6X1X16,13.5 THREAD,14.2 OUTSIDE DIAMETER,GMW25 STEEL,GMW3200,MACHINE,HEADER POINT(THERMOSTAT BYPASS PIPE)
- Fitting Vehicle Options: U
$9.15 $5.81
1
Add To Cart

11570616
CLAMP, SPRINGBAND, 27 NOMINAL DIAMETER, 15 THICK, STEEL, ROBO(PART OF 2)
- Fitting Vehicle Options: U
$7.19 $4.57
1
Add To Cart

11570616
CLAMP, SPRINGBAND, 27 NOMINAL DIAMETER, 15 THICK, STEEL, ROBO(PART OF 6,38)
- Fitting Vehicle Options: U(C34,C36)
$7.19 $4.57
1
Add To Cart

11570383
CLAMP, SPRINGBAND,24 NOMINAL DIAMETER, 15 THICK, STEEL, GMW14083(PART OF 4)
- Fitting Vehicle Options: U
$41.38 $20.85
1
Add To Cart

11570383
CLAMP, SPRINGBAND,24 NOMINAL DIAMETER, 15 THICK, STEEL, GMW14083(PART OF 1,38)
- Fitting Vehicle Options: U(C34,C36)
- Require Quantity: 05
- Package Quantity: 1
$41.38 $20.85
1
Add To Cart

11570383
CLAMP, SPRINGBAND,24 NOMINAL DIAMETER, 15 THICK, STEEL, GMW14083(PART OF 6,38)
- Fitting Vehicle Options: U(C34,C36)
- Require Quantity: 04
- Package Quantity: 1
$41.38 $20.85
1
Add To Cart

1470030
CLAMP, WORM TYPE(11/16" TO 1 5/16")(THERMOSTAT BYPASS PIPE)
- Fitting Vehicle Options: U
- Require Quantity: 02
- Package Quantity: 1
- Replaced By: 11610236
$7.38 $4.69
1
Add To Cart

11517518
BOLT, HEX FLANGED HEAD,M6X1X20,17.9 THREAD,14.2 O.D.,9.8,TIN ZINC(THERMOSTAT BYPASS PIPE)
- Fitting Vehicle Options: U
$7.91 $4.55
1
Add To Cart

11515704
BOLT, HEXAGON,W/CONICAL WASHER,M6X1X16,13THD,17 O.D.,MACHINE,9.8,7111M(AUXILIARY HEATER)
- Fitting Vehicle Options: U(C36)
- Require Quantity: 02
- Package Quantity: 1
$6.62 $4.20
1
Add To Cart

11515704
BOLT, HEXAGON,W/CONICAL WASHER,M6X1X16,13THD,17 O.D.,MACHINE,9.8,7111M(AUXILIARY HEATER & A/C EVAPORATOR & BLOWER MODULE)
- Fitting Vehicle Options: U(C34)
- Require Quantity: 02
- Package Quantity: 1
$6.62 $4.20
1
Add To Cart

Genuine GM Parts, the Right Choice

GMPartsGiant.com offers the wholesale prices for genuine 1997 Pontiac Trans Sport parts. Parts like Hoses & Pipes/Heater are shipped directly from authorized GM dealers and backed by the manufacturer's warranty. Parts fit for the following vehicle options. Engine: 6 Cyl 3.4L. Model Code: EXT, EXT 2/SLIDING DOORS, TRANS SPORT.
