Parts Questions

Sort by:

Recommended

Part No. & Part Description

Price & Qty.

Part No. &
Part Description

2724577
SEAL KIT, A/C Refrigerant Lines, SEAL KIT,A/C COMPRESSOR & CONDENSER HOSE MANIFOLD(28MM OUTSIDE DIAMETER X 15.5MM INSIDE DIAMETER)(CONTAINS 2 SEALS)
$13.79 $7.30
1
Add To Cart

3033879
ORIFICE, A/C Expansion Refrigerant, ORIFICE,A/C EVAPORATOR TUBE(ALSO PART OF 30)(.072 DIAMETER)(INCLUDES SEAL)
$17.69 $9.38
1
Add To Cart

3041827

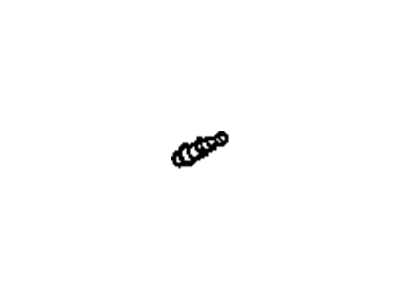

CORE, A/C Compressor, CORE,A/C REFRIGERANT SERVICE VALVE(INCLUDES SPRING, WITHOUT O-RING)(13/64-36 THREAD)(ALSO PART OF 25)(W/O FITTING)(W/O SEAL)
$14.06 $7.73
1
Add To Cart

13587697
SENSOR, A/C Electric Temperature and Motor Control, SENSOR,A/C REFRIGERANT PRESSURE
$59.57 $31.57
1
Add To Cart

19368669
CONNECTOR, A/C Compressor, CONNECTOR,SENSOR-A/C REFRIGERANT PRESSURE(BLACK)(0.75MM)(3-WAY FEMALE)(W/LEADS)(2.530)
$57.66 $30.56
1
Add To Cart

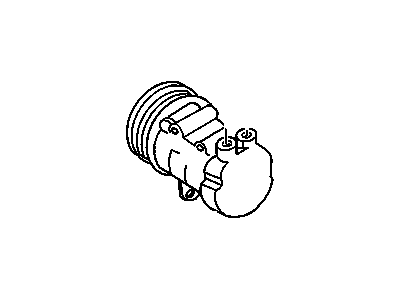

89018902
COMPRESSOR, A/C Compressor, COMPRESSOR,A/C(V5 W/CLUTCH, INCLUDES O-RINGS)(SEE GROUP 9.000 "A/C COMPRESSOR ASM" FOR DETAIL ILLUSTRATED VIEW)
$629.80 $299.78
1
Add To Cart

TUBE, A/C Refrigerant (All Metal)
10205056
TUBE, A/C CONDENSER(INCLUDE 15,17,19,27,28)
Fitting Vehicle Options: U(C67)
$80.60 $77.93
1
Add To Cart
10205054
TUBE, A/C CONDENSER(INCLUDE 15,17,19,27,28)
- Fitting Vehicle Options: U(C34)
10205055
TUBE, A/C CONDENSER(INCLUDES 15)
- Fitting Vehicle Options: U, U(C34,C67)
10205058
TUBE, A/C EVAPORATOR(INCLUDES TWO ITEM 19)
- Fitting Vehicle Options: U(C34)
10205067
TUBE, AUXILIARY A/C EVAPORATOR INLET(ALSO PART OF 35)
- Fitting Vehicle Options: U(C34)
10260986
TUBE, A/C EVAPORATOR(INCLUDES ONE ITEM 2)
- Fitting Vehicle Options: U(C34)
10268775
TUBE, AUXILIARY A/C EVAPORATOR OUTLET(ALSO PART OF 35)
- Fitting Vehicle Options: U(C34)

HOSE, A/C Refrigerant (Metal and Rubber Sections)

10205064
HOSE, A/C ACCUMULATOR(INCLUDES 2)
$44.04 $38.51
1
Add To Cart
10268648
HOSE, A/C EVAPORATOR(INCLUDES 15,29)

19333214
SINGLE TUBE DIAMETER, Steering Gear/Pump OIL, SINGLE TUBE DIAMETER-12.7 MM, STEEL, ZINC W/ CUSHION(A/C EVAPORATOR TUBE)
$7.11 $4.75
1
Add To Cart

52454646
Steering, Seal,A/C Accumulator Tube(O Ring)
$1.89 $1.06
10
Add To Cart

ACCUMULATOR, A/C Refrigerant
88968520
ACCUMULATOR, A/C
Fitting Vehicle Options: U(LA1,C67)
$66.06 $16.00
1
Add To Cart
88968521
ACCUMULATOR, A/C
- Fitting Vehicle Options: U(LA1,C34)

RETAINER, Heater
10145036
RETAINER, HEATER PIPE(PART OF 35)
Fitting Vehicle Options: U(C34,C36)
10145055
RETAINER, HEATER PIPE(ALSO PART OF 35)
- Fitting Vehicle Options: U(C34)
- Require Quantity: 04
- Package Quantity: 1

INSULATOR, A/C Condenser
10215502
INSULATOR, A/C CONDENSER(UPPER)
Require Quantity: 02
Package Quantity: 1
10215503
INSULATOR, A/C CONDENSER(LOWER)
- Require Quantity: 02
- Package Quantity: 1

10216037
BRACKET, A/C Refrigerant, BRACKET,A/C ACCUMULATOR(INCLUDES 23)

RETAINER, A/C Condenser
10217758
RETAINER, A/C CONDENSER INSULATOR(LOWER)
Location: Passenger Side
10217759
RETAINER, A/C CONDENSER INSULATOR(LOWER)
- Location: Driver Side

10221701
NUT, A/C Condenser, NUT,A/C CONDENSER INSULATOR RETAINER
- Require Quantity: 02
- Package Quantity: 1

10230451
HOSE, A/C Vacuum and Temperature, HOSE,HEATER & A/C CONTROL VACUUM SOURCE(SINGLE LINE)(ALSO PART OF 35)

HOSE, A/C Compressor
10260984
HOSE, A/C COMPRESSOR & CONDENSER(INCLUDES 2 & 5)
Fitting Vehicle Options: U(LA1,C67)
10260985
HOSE, A/C COMPRESSOR & CONDENSER(INCLUDES 2 & 5)
- Fitting Vehicle Options: U(LA1,C34)

10268651
PIPE, Heater, PIPE,AUXILIARY HEATER INLET & OUTLET(INCLUDES 2,19,36 THROUGH 42)

12106489
HARNESS, Engine Wiring, HARNESS,ENGINE WIRING

15726460
BOLT, A/C Compressor, BOLT,A/C COMPRESSOR & CONDENSER HOSE
- Replaced By: 15029243

52461229
CONDENSER, A/C Condenser, CONDENSER,A/C

11609989
BOLT, HEXAGON W/FLAT WASHER,M6X1X25,15 THREAD,17 OUTSIDE DIAMETER,6202M STEEL,GMW3200,TAPTITE(A/C ACCUMULATOR BRACKET)
$6.68 $4.24
4
Add To Cart

11518121
NUT, A/C ACCUMULATOR BRACKET
- Require Quantity: 02
- Package Quantity: 1
- Replaced By: 88961517
$7.39 $4.69
1
Add To Cart

12337828
SCREW, HEXAGON W/FLAT WASHER,TAP,M6.3X1.81X20,13.2 O.D.,ALUMINUM BASECOAT POINT,STEEL,PZ0R(A/C CONDENSER INSULATOR RETAINER)
- Require Quantity: 02
- Package Quantity: 1
- Replaced By: 22527475
$10.91 $6.94
1
Add To Cart

19188397
O-RING, 7.65MM INSIDE DIAMETER, 1.78 MM THICK,NEOPRENE
$12.60
10
Add To Cart

89034235
SEAL, A/C EVAP TUBE(O RING)(10 PIECE PACKAGES)
$8.92 $4.97
1
Add To Cart

11508905
SCREW, HEX WASHER HEAD TAP M6.3X1.81X30 12.5-OUTSIDE DIAMETER ALUMINUM BASECOAT POINT PHOSPHATE ZINC ORGANIC(ALSO PART OF 21)

Genuine GM Parts, the Right Choice

GMPartsGiant.com offers the wholesale prices for genuine 1996 Chevrolet Lumina APV parts. Parts like A/C Refrigeration System are shipped directly from authorized GM dealers and backed by the manufacturer's warranty. Parts fit for the following vehicle options. Engine: 6 Cyl 3.1L, 6 Cyl 3.4L. Model Code: APV, APV CARGO.
