Hoses & Pipes/Heater fit your 1995 Chevrolet Lumina Base Model

Currently shopping for

1995 Chevrolet Lumina Base Model

Change Vehicle

Vehicle Options

4-Speed Automatic Transmission, 4T60-E

Vehicle Options

4-Speed Automatic Transmission, 4T60-E

Categories Close X

Currently selected

Front End Sheet Metal, Heater

Other Categories

Body Moldings, Sheet Metal, Rear Compartment Hardware, Roof Hardware

Body Mounting, Air Conditioning, Audio/Entertainment

Brakes

Brakes, Rear Axle, Propeller Shaft, Wheels, Tires

Cooling System, Grille, Oil System

Engine

Frames, Springs, Shocks, Bumpers

Front Suspension, Steering

Fuel System, Exhaust, Emission System

Interior Trim, Front Seat Trim, Seat Belts

Maintenance Parts, Fluids, Capacities, Electrical Connectors

Rear Glass, Seat Parts, Adjuster

Rear Seat Trim, Carpet

Starter, Generator, Ignition, Electrical, Lamps

Transmission - Automatic

Windshield, Wiper, Mirrors, Instrument Panel, Console, Doors

Parts Questions

Sort by:

Recommended

Part No. & Part Description

Price & Qty.

Part No. &
Part Description

CLAMP, Heater
11570616
CLAMP, HEATER INLET HOSE(27 NOMINAL DIAMETER)(8.948)
Fitting Vehicle Options: W
$7.19 $4.57
1
Add To Cart
11570616
CLAMP, HEATER OUTLET HOSE(PART OF 1)(27 NOMINAL DIAMETER)(8.948)
- Fitting Vehicle Options: W(LQ1)
- Require Quantity: 04
- Package Quantity: 1
$7.19 $4.57
1
Add To Cart
11570383
CLAMP, HEATER INLET HOSE(15.7 TO 31.8 ALL STAINLESS STEEL)(24 NOMINAL DIAMETER)(8.948)
- Fitting Vehicle Options: W
$41.38 $20.85
1
Add To Cart
11570383
CLAMP, HEATER OUTLET HOSE(PART OF 1)(24 NOMINAL DIAMETER)(8.948)
- Fitting Vehicle Options: W(LQ1)
$41.38 $20.85
1
Add To Cart

10189205
SEAL, Engine Coolant By-Pass, SEAL,THERMOSTAT BYPASS PIPE ADAPTER (O RING)(YELLOW)
$14.42 $12.60
1
Add To Cart

10070107
VALVE, Engine Air Cooling Control, VALVE,ENGINE COOLANT AIR BLEED
$18.78 $10.47
1
Add To Cart

10070107
VALVE, Heater, VALVE,HEATER AIR BLEED(PART OF 15)(1.035)
- Require Quantity: 02
- Package Quantity: 1
$18.78 $10.47
1
Add To Cart

10182356
HOSE, Engine Coolant By-Pass, HOSE,THERMOSTAT BYPASS
$23.15 $14.72
1
Add To Cart

NUT, Heater
14103956
NUT, HEATER OUTLET PIPE(5 X 1.6)(PAL NUT)(2.575)
Require Quantity: 02
Package Quantity: 20
$2.95 $1.87
20
Add To Cart
14103956
NUT, HEATER INLET PIPE(5 X 1.6)(PAL NUT)(2.575)
$2.95 $1.87
20
Add To Cart

PIPE, Engine Coolant By-Pass
12590279
PIPE, THERMOSTAT BYPASS(PART OF LOWER INTAKE)(USE SEALANT 19332211(USA) OR 10953488(CANADA)
Fitting Vehicle Options: W(L82)
$57.81 $36.74
1
Add To Cart
10182397
PIPE, THERMOSTAT BYPASS
- Fitting Vehicle Options: W(L82)(EXC KC4)

NIPPLE, Heater Coolant Flow
24503681
NIPPLE, HEATER WATER ENGINE INLET(USE TOGETHER WITH 1052080 SEALER)(1/2 THREAD,59.5 TL)(OLD PART APPEAR LARGER DUE TO HEAT EXPANSION)(W/ O-RING & RETAINER)
Fitting Vehicle Options: W(L82)
$15.39 $10.34
1
Add To Cart
24503681
NIPPLE, HEATER WATER ENGINE OUTLET(HEATER INLET HOSE)(USE TOGETHER WITH 1052080 SEALER)(1/2 THREAD,59.5 TL)(OLD PART APPEAR LARGER DUE TO HEAT EXPANSION)(W/ O-RING & RETAINER)
- Fitting Vehicle Options: W
$15.39 $10.34
1
Add To Cart
10162143
NIPPLE, HEATER WATER ENGINE INLET(HEATER OUTLET HOSE)
- Fitting Vehicle Options: W

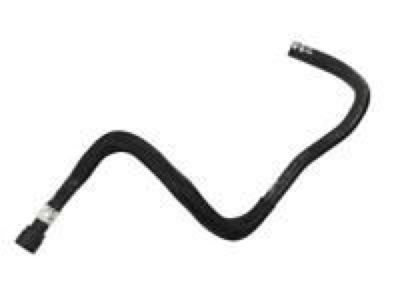

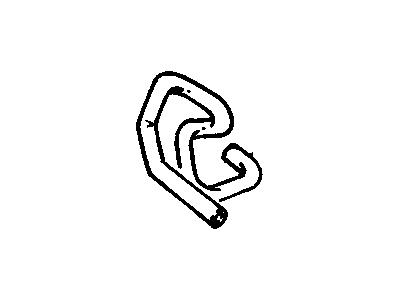

HOSE, Heater
10175927
HOSE, HEATER INLET(TO ENGINE)(PART OF 8)
Fitting Vehicle Options: W(LQ1)
$48.24 $20.97
1
Add To Cart
10192770
HOSE, HEATER INLET(W/VALVE)(INCLUDES 3 & 5)
- Fitting Vehicle Options: W(LQ1)
10192770
HOSE, HEATER INLET(AT HEATER CORE)(PART OF 15)
- Fitting Vehicle Options: W(LQ1)
10286178
HOSE, HEATER OUTLET(COMPLETE)(INCLUDE HOSES)(INCLUDE 2)
- Fitting Vehicle Options: W(LQ1)
10408003
HOSE, HEATER OUTLET
- Fitting Vehicle Options: W(L82)
10427569
HOSE, HEATER INLET
- Fitting Vehicle Options: W(L82)

PIPE, Heater
10182363
PIPE, HEATER INLET
Fitting Vehicle Options: W(L82)
10252633
PIPE, HEATER INLET(AT ENGINE)(INCLUDE 6,13,14)(COMPLETE W/HOSE, CLAMP, SLEEVE)
- Fitting Vehicle Options: W(LQ1)

24505463
STUD, Engine Coolant By-Pass, STUD,THERMOSTAT BYPASS PIPE CLIP(STRAIGHT,7.2E8 TORX,10X1.5X17.5,10X1.5X26,19THD)

STUD

24507801
STUD, HEATER INLET PIPE(M10X1.5X16MM)
24507801
STUD, FUEL FEED & RETURN PIPE CLIP(M10X1.5X16MM)

11517996
NUT, HEX FLANGED HEAD,M10X1.5,11.2 THICK,21.5 OUTSIDE DIAMETER,10,7111M,ALL METAL PREVENT TORQUE(THERMOSTAT BYPASS PIPE CLIP)
- Fitting Vehicle Options: W
$7.38 $4.46
1
Add To Cart

11514596
NUT, HEX FLANGED HEAD,M8X1.25,17.9 OUTSIDE DIAMETER,738 THICK,13MM HEXAGON,10, PHOSPHATE ZINC ORGANIC - FLAKE(8.915)
$12.60
1
Add To Cart

11514596
NUT, HEX FLANGED HEAD,M8X1.25,17.9 OUTSIDE DIAMETER,738 THICK,13MM HEXAGON,10, PHOSPHATE ZINC ORGANIC - FLAKE(THERMOSTAT BYPASS PIPE CLIP)(8.915)
$12.60
1
Add To Cart

11514596
NUT, HEX FLANGED HEAD,M8X1.25,17.9 OUTSIDE DIAMETER,738 THICK,13MM HEXAGON,10, PHOSPHATE ZINC ORGANIC - FLAKE(8.915)
$12.60
1
Add To Cart

11514596
NUT, HEX FLANGED HEAD,M8X1.25,17.9 OUTSIDE DIAMETER,738 THICK,13MM HEXAGON,10, PHOSPHATE ZINC ORGANIC - FLAKE(THERMOSTAT BYPASS PIPE CLIP)(8.915)
$12.60
1
Add To Cart

11561025
BOLT, HEX FLANGED HEAD,M6X1X16,13.5 THREAD,14.2 OUTSIDE DIAMETER,GMW25 STEEL,GMW3200,MACHINE,HEADER POINT(THERMOSTAT BYPASS PIPE)
$9.15 $5.81
1
Add To Cart

11561025
BOLT, HEX FLANGED HEAD,M6X1X16,13.5 THREAD,14.2 OUTSIDE DIAMETER,GMW25 STEEL,GMW3200,MACHINE,HEADER POINT(THERMOSTAT BYPASS PIPE)
$9.15 $5.81
1
Add To Cart

11570616
CLAMP, SPRINGBAND, 27 NOMINAL DIAMETER, 15 THICK, STEEL, ROBO(HEATER INLET HOSE)
$7.19 $4.57
1
Add To Cart

11570383
CLAMP, SPRINGBAND,24 NOMINAL DIAMETER, 15 THICK, STEEL, GMW14083(HEATER OUTLET PIPE)
$41.38 $20.85
1
Add To Cart

11570383
CLAMP, SPRINGBAND,24 NOMINAL DIAMETER, 15 THICK, STEEL, GMW14083(HEATER OUTLET PIPE)
- Require Quantity: 02
- Package Quantity: 1
$41.38 $20.85
1
Add To Cart

11570383
CLAMP, SPRINGBAND,24 NOMINAL DIAMETER, 15 THICK, STEEL, GMW14083(PART OF 8)
$41.38 $20.85
1
Add To Cart

1470030
CLAMP, WORM TYPE(11/16" TO 1 5/16")(THERMOSTAT BYPASS PIPE)
- Replaced By: 11610236
$7.38 $4.69
1
Add To Cart

11517518
BOLT, HEX FLANGED HEAD,M6X1X20,17.9 THREAD,14.2 O.D.,9.8,TIN ZINC(THERMOSTAT BYPASS PIPE)
$12.60
1
Add To Cart

11517518
BOLT, HEX FLANGED HEAD,M6X1X20,17.9 THREAD,14.2 O.D.,9.8,TIN ZINC(THERMOSTAT BYPASS PIPE)
$12.60
1
Add To Cart

11509371
SCREW, HEXAGON W/FLAT WASHER,TAP,M6.3X1.81X16,17 O.D.,ALUMINUM BASECOAT POINT,PHOSPHATE ZINC ORGANIC(HEATER INLET PIPE)
- Replaced By: 11503890
$7.42 $4.71
1
Add To Cart

12013948
CONDUIT, CONVOLUTED(1" INSIDE DIAMETER X15')R68423(PART OF 8)
$77.37 $49.17
1
Add To Cart

Genuine GM Parts, the Right Choice

GMPartsGiant.com offers the wholesale prices for genuine 1995 Chevrolet Lumina Base Model parts. Parts like Hoses & Pipes/Heater are shipped directly from authorized GM dealers and backed by the manufacturer's warranty. Parts fit for the following vehicle options. Engine: 6 Cyl 3.1L, 6 Cyl 3.4L. Model Code: LS, LS 4 DOOR, LUMINA, MONTE CARLO.
