How do you remove the heater control assembly?

To remove the instrument panel center housing, start by disconnecting the cable from the negative battery terminal. Then, remove the trim bezel around the shift lever and the screws from the small instrument panel center storage compartment. Slide out the compartment and ensure that the two lower screws are removed. Use a plastic trim tool or a screwdriver wrapped with electrical tape to pry off the instrument panel center housing, which has three clips on each side. Disconnect all the wiring from the rear seat of the unit. Rotate the temperature selector knob counterclockwise and release the retaining clips from the temperature cable. Pull the cable from the rear of the knob. From the rear of the unit, remove the four mounting screws from the A/C switch assembly and separate it from the housing. To install, simply reverse the removal steps.

Genuine Saturn Vue A/C Switch

Air Conditioning Switch

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

12 A/C Switches found

View related parts
Saturn Vue Heater & Air Conditioner Control Blower Switch Assembly
Part Number: 15803801
$71.79 MSRP: $130.51
You Save: $58.72 (45%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Switch Asm,Heater & A/C Control Blower; Blower Motor Switch, Fan Switch
- Replaces: 22714376
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2002-2007 Saturn Vue | AWD, FWD, MANUAL TRANS HYBRID FWD, UPLEVEL AWD, UPLEVEL FWD, UPLEVEL V6 AWD, UPLEVEL V6 FWD | 4 Cyl 2.2L, 4 Cyl 2.4L, 6 Cyl 3.0L, 6 Cyl 3.5L
View related parts
Saturn Vue Heater & Air Conditioner Control Assembly
Part Number: 20931043
$167.64 MSRP: $352.17
You Save: $184.53 (53%)
ADD TO CART
Product Specifications
- Other Name: Control Assembly, Heater & A/C; Dash Control Unit
- Replaces: 25992366
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2008-2010 Saturn Vue | XE AWD, XE FWD, XR AWD, XR FWD | 4 Cyl 2.4L, 6 Cyl 3.5L, 6 Cyl 3.6L
View related parts
Saturn Vue Heater & Air Conditioner Control Assembly
Part Number: 25974489
$104.13 MSRP: $311.35
You Save: $207.22 (67%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Control Assembly, Heater & A/C
- Replaces: 25899049
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2008-2009 Saturn Vue | SUV HYBRID FWD | 4 Cyl 2.4L, 6 Cyl 3.5L, 6 Cyl 3.6L
View related parts
Saturn Vue Heating And Air Conditioning Control Panel
Part Number: 15808975
$152.20 MSRP: $240.55
You Save: $88.35 (37%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Control Asm,Heater & A/C; Dash Control Unit, Heater Control
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2002-2003 Saturn Vue | AWD, FWD, UPLEVEL AWD, UPLEVEL FWD | 4 Cyl 2.2L, 6 Cyl 3.0L
View related parts
Saturn Vue Heater & Air Conditioner Control Assembly
Part Number: 20829245
Product Specifications
- Other Name: Control,Heater & A/C; Dash Control Unit, Heater Control
- Replaces: 25992362
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2008-2010 Saturn Vue | REDLINE AWD, REDLINE FWD, SUV HYBRID FWD, SUV XR 4 CYL FWD, XE AWD, XE FWD, XR AWD, XR FWD | 4 Cyl 2.4L, 6 Cyl 3.5L, 6 Cyl 3.6L
View related parts

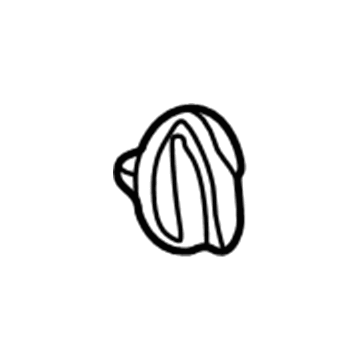

Saturn Vue Heater & Air Conditioner Control Mode Knob
Part Number: 22665685
Product Specifications
- Other Name: Knob, Heater & A/C Control Mode; Heater Control Knob
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2002-2005 Saturn Vue | AWD, FWD, UPLEVEL AWD, UPLEVEL FWD | 4 Cyl 2.2L, 6 Cyl 3.0L, 6 Cyl 3.5L
View related parts
Saturn Vue Heater Control Blower Switch Knob
Part Number: 22665686
Product Specifications
- Other Name: Knob, Heater Control Blower Switch; Heater Control Knob
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2002-2005 Saturn Vue | AWD, FWD, UPLEVEL AWD, UPLEVEL FWD | 4 Cyl 2.2L, 6 Cyl 3.0L, 6 Cyl 3.5L
View related parts
Saturn Vue Heater & Air Conditioner Control Assembly
Part Number: 15803277
Product Specifications
- Other Name: Control Asm,Heater & A/C; Heater Control
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2006-2007 Saturn Vue | AWD, FWD, UPLEVEL AWD, UPLEVEL FWD, UPLEVEL V6 FWD | 4 Cyl 2.2L, 4 Cyl 2.4L, 6 Cyl 3.5L
View related parts
Saturn Vue Heater & Air Conditioner Control Assembly
Part Number: 15808976
Product Specifications
- Other Name: Control Asm,Heater & A/C; Heater Control
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2003 Saturn Vue | AWD, FWD, UPLEVEL AWD, UPLEVEL FWD | 4 Cyl 2.2L, 6 Cyl 3.0L
View related parts
Saturn Vue Heater & Air Conditioner Control Assembly
Part Number: 25974488
Product Specifications
- Other Name: Control Assembly, Heater & A/C; Dash Control Unit, Heater Control
- Replaces: 20828630, 25899048
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2008-2009 Saturn Vue | SUV HYBRID FWD | 4 Cyl 2.4L, 6 Cyl 3.5L, 6 Cyl 3.6L
View related parts
Saturn Vue Heater & Air Conditioner Control Assembly
Part Number: 15808977
Product Specifications
- Other Name: Control Asm,Heater & A/C; Dash Control Unit, Heater Control
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2004-2005 Saturn Vue | AWD, FWD, UPLEVEL AWD, UPLEVEL FWD | 4 Cyl 2.2L, 6 Cyl 3.5L
View related parts
Saturn Vue Heater & Air Conditioner Control Assembly
Part Number: 15939029
Product Specifications
- Other Name: Control Assembly, Heater & A/C; Dash Control Unit
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2007 Saturn Vue | MANUAL TRANS HYBRID FWD | 4 Cyl 2.2L, 4 Cyl 2.4L, 6 Cyl 3.5L

Saturn Vue A/C Switch

Each OEM Saturn Vue A/C Switch we offer is competitively priced and comes with the assurance of the manufacturer's warranty for the part. Furthermore, we guarantee the speedy delivery of your orders right to your doorstep. Our hassle-free return policy is also in place for your peace of mind.

Saturn Vue A/C Switch Parts Questions & Experts Answers

Heater & Air Conditioner Control Blower Switch Assembly
15803801
Q: How do you remove the heater control assembly?
A: To remove the instrument panel center housing, start by disconnecting the cable from the negative battery terminal. Then, remove the trim bezel around the shift lever and the screws from the small instrument panel center storage compartment. Slide out the compartment and ensure that the two lower screws are removed. Use a plastic trim tool or a screwdriver wrapped with electrical tape to pry off the instrument panel center housing, which has three clips on each side. Disconnect all the wiring from the rear seat of the unit. Rotate the temperature selector knob counterclockwise and release the retaining clips from the temperature cable. Pull the cable from the rear of the knob. From the rear of the unit, remove the four mounting screws from the A/C switch assembly and separate it from the housing. To install, simply reverse the removal steps.
