How to remove and replace the fuel level sending unit assembly?

Remove the fuel tank and the fuel pump module. Connect the probes of an ohmmeter to the two fuel level sensor terminals (2 and 3) of the fuel pump module electrical connector. Position the float in the down (empty) position and note the reading on the ohmmeter. Move the float up to the full position while watching the meter. If the fuel level sensor resistance does not change smoothly as the float travels from empty to full, replace the fuel level sensor assembly. Replacement: Remove the fuel tank and the fuel pump module. Disconnect the fuel level sensor electrical connector from the module cover. Disconnect the fuel pump/fuel level sensor electrical connector from the fuel pump module-inline engine. Remove the sending unit retaining clip. Remove the sending unit retaining clip-inline engine. Pinch the tabs together and slide the fuel level sensor off the module. Pinch the tabs together and remove the fuel level sensor from the module. Note the routing of the wiring for installation. Installation is the reverse of removal.

Genuine GMC Canyon Fuel Level Sensor

Gas Gauge Sensor

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

5 Fuel Level Sensors found

View related parts

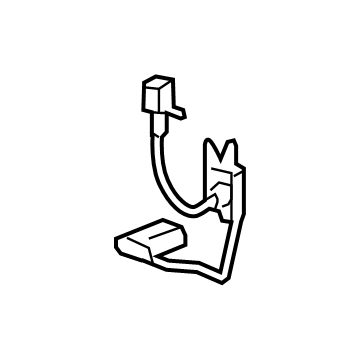

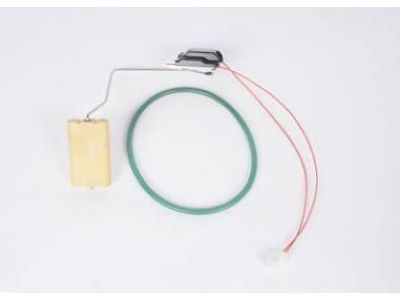

GMC Canyon Fuel Tank Meter/Pump SENSOR KIT
Part Number: 19207814
$78.60 MSRP: $165.12
You Save: $86.52 (53%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Sensor Kit,Fuel Level ; Sensor Kit, Fuel Tank Meter/Pump; Fuel Gauge Sending Unit, Level Sensor
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2009-2012 GMC Canyon | PICKUP, PICKUP CREW CAB, PICKUP EXTENDED CAB, PICKUP EXTENDED LENGTH | 4 Cyl 2.9L, 5 Cyl 3.7L, 8 Cyl 5.3L
View related parts
GMC Canyon Fuel Tank Meter/Pump SENSOR KIT
Part Number: 88965817
$109.70 MSRP: $230.47
You Save: $120.77 (53%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Sensor Kit,Fuel Level ; Sensor Kit, Fuel Tank Meter/Pump
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2004-2005 GMC Canyon | PICKUP, PICKUP CREW CAB, PICKUP EXTENDED CAB, PICKUP EXTENDED LENGTH | 4 Cyl 2.8L, 5 Cyl 3.5L
View related parts
GMC Canyon Fuel Tank Meter/Pump SENSOR KIT
Part Number: 19122011
$45.77 MSRP: $131.28
You Save: $85.51 (66%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Sensor Kit,Fuel Level ; Sensor Kit, Fuel Tank Meter/Pump; Level Sensor
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2006-2008 GMC Canyon | PICKUP, PICKUP CREW CAB, PICKUP EXTENDED CAB, PICKUP EXTENDED LENGTH | 4 Cyl 2.8L, 4 Cyl 2.9L, 5 Cyl 3.5L, 5 Cyl 3.7L
View related parts
GMC Canyon Fuel Level Sensor Kit
Part Number: 13589787
$24.41 MSRP: $46.06
You Save: $21.65 (47%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Sensor Kit, Fuel Level; Fuel Gauge Sending Unit, Level Sensor
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2015-2021 GMC Canyon | CREW CAB - 5'2" BOX, CREW CAB - 6'2" BOX, CREW CAB SLE - 6'2" BOX, CREW CAB SLT - 6'2" BOX, EXTENDED CAB - 6'2" BOX, SLE CREW CAB - 5'2" BOX, SLE EXTENDED CAB - 6'2" BOX, SLT CREW CAB - 5'2" BOX, SLT EXTENDED CAB - 6'2" BOX | 4 Cyl 2.5L, 6 Cyl 3.6L
View related parts
GMC Canyon Fuel Level Sensor Kit
Part Number: 23333575
$50.92 MSRP: $106.95
You Save: $56.03 (53%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Sensor Kit, Fuel Level ; Sensor Kit, Fuel Lvl; Fuel Gauge Sending Unit, Level Sensor
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2016-2021 GMC Canyon | CREW CAB - 5'2" BOX, CREW CAB - 6'2" BOX, CREW CAB SLE - 6'2" BOX, CREW CAB SLT - 6'2" BOX, EXTENDED CAB - 6'2" BOX, SLE CREW CAB - 5'2" BOX, SLE EXTENDED CAB - 6'2" BOX, SLT CREW CAB - 5'2" BOX, SLT EXTENDED CAB - 6'2" BOX | 4 Cyl 2.8L Diesel

GMC Canyon Fuel Level Sensor

Fuel Level Sensor is incorporated an important duty of identifying the fuel level that is present in the fuel tanks of GMC Canyon hence informing drivers when they need to refill. These are modern sensors that are electrical gadgets intended to work in high temperatures providing accurate readings while drawing a small amount of current. The Fuel Level Sensor usually is installed in the fuel tank and includes a float and an actuating rod and a resistor to pass the signals to the fuel gauge. This design helps for easy calibration and stable operation so common problems such as consistently giving wrong readings after refuel are minimized. In case of faults it is recommended that one consults a professional service or at least has adequate knowledge in fuel level sensors so as to diagnose the problem.

Each OEM GMC Canyon Fuel Level Sensor we offer is competitively priced and comes with the assurance of the manufacturer's warranty for the part. Furthermore, we guarantee the speedy delivery of your orders right to your doorstep. Our hassle-free return policy is also in place for your peace of mind.

GMC Canyon Fuel Level Sensor Parts Questions & Experts Answers

Fuel Tank Meter/Pump SENSOR KIT
19122011
Q: How to remove and replace the fuel level sending unit assembly?
A: Remove the Fuel Tank and the Fuel Pump module. Connect the probes of an ohmmeter to the two fuel level sensor terminals (2 and 3) of the fuel pump module electrical connector. Position the float in the down (empty) position and note the reading on the ohmmeter. Move the float up to the full position while watching the meter. If the fuel level sensor resistance does not change smoothly as the float travels from empty to full, replace the fuel level sensor assembly. Replacement: Remove the fuel tank and the fuel pump module. Disconnect the fuel level sensor electrical connector from the module cover. Disconnect the fuel pump/fuel level sensor electrical connector from the fuel pump module-inline engine. Remove the sending unit retaining clip. Remove the sending unit retaining clip-inline engine. Pinch the tabs together and slide the fuel level sensor off the module. Pinch the tabs together and remove the fuel level sensor from the module. Note the routing of the wiring for installation. Installation is the reverse of removal.
