How do you remove and reinstall the console box and Shift Cable on Chevrolet Tracker?

To release the console box, you will need to unscrew the console box on the front side and remove the rear clips and then pull the box up. Next, four bolts fixing the manual selector to the floor has to be unbolted and the unit has to lifted. Pull the coil and remove the end clip with the washer and the outer cable E-ring from the selector assembly. Lift the car and support it on jack stands and thereafter unbolt the lock nut on the cable end at the transmission moving the switch till a 'click' is heard before tightening the bolt. To remove the cable from the manual select lever pull down the lever to disconnect the cable then to remove the E-ring from the shift cable bracket and pull the cable from the vehicle. For installation the following process should be in reverse on the removal process, while align the cable before reinstallation of the console box, and test the vehicle to start only in Park and Neutral mode.

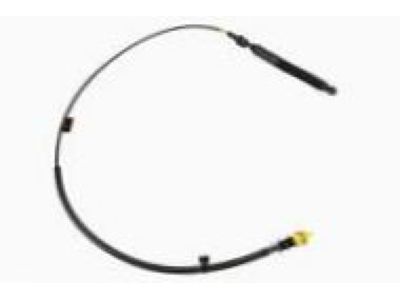

Genuine Chevrolet Tracker Shift Cable

Transmission Shift Cable

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

15 Shift Cables found

View related parts
Chevrolet Tracker Automatic Transmission Throttle Valve Cable
Part Number: 96058033
Product Specifications
- Other Name: Cable,Automatic Transmission Throttle Valve
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1989-1995 Chevrolet Tracker | 2 DOOR HARD TOP, CONVERTIBLE | 4 Cyl 1.6L
View related parts
Chevrolet Tracker Automatic Transmission Throttle Valve Cable
Part Number: 91175992
$99.00 MSRP: $148.01
You Save: $49.01 (34%)
Product Specifications
- Other Name: Cable,Automatic Transmission Throttle Valve
- Replaces: 91174556
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1999-2004 Chevrolet Tracker | 4 DOOR, CONVERTIBLE | 4 Cyl 2.0L
View related parts
Chevrolet Tracker Automatic Transmission Back Door Safety Lock Cable
Part Number: 96067101
Product Specifications
- Other Name: Cable,Automatic Transmission Back Door Safety Lock
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1990-1993 Chevrolet Tracker | 2 DOOR HARD TOP, CONVERTIBLE | 4 Cyl 1.6L
View related parts
Chevrolet Tracker Automatic Transmission Shifter Cable
Part Number: 96058594
Product Specifications
- Other Name: Cable, Back Drive W/At
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1989 Chevrolet Tracker | 2 DOOR HARD TOP, CONVERTIBLE | 4 Cyl 1.6L
View related parts
Chevrolet Tracker Automatic Transmission Back Door Safety Lock Cable
Part Number: 30017410
Product Specifications
- Other Name: Cable,Automatic Transmission Back Door Safety Lock
- Replaces: 30011808
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1994-1995 Chevrolet Tracker | 2 DOOR HARD TOP, CONVERTIBLE | 4 Cyl 1.6L
View related parts
Chevrolet Tracker Automatic Transmission Back Door Safety Lock Cable
Part Number: 30015917
Product Specifications
- Other Name: Cable,Automatic Transmission Back Drive Safety Lock ; Cable,A/Trns Bk Drv Saf Lk
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1996-1998 Chevrolet Tracker | 4 DOOR, CONVERTIBLE | 4 Cyl 1.6L
View related parts
Chevrolet Tracker Automatic Transmission Throttle Valve Cable
Part Number: 30017409
Product Specifications
- Other Name: Cable,Automatic Transmission Throttle Valve
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1994-1998 Chevrolet Tracker | 2 DOOR HARD TOP, CONVERTIBLE | 4 Cyl 1.6L
View related parts
Chevrolet Tracker Key Interlock Cable (On Esn)
Part Number: 30024433
Product Specifications
- Other Name: Cable,Key Interlock (On Esn); Lock Cable
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1999-2004 Chevrolet Tracker | 4 DOOR, CONVERTIBLE | 4 Cyl 2.0L, 6 Cyl 2.5L
View related parts
Chevrolet Tracker Automatic Transmission Throttle Valve Cable
Part Number: 30014530
Product Specifications
- Other Name: Cable,Automatic Transmission Throttle Valve
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1994-1995 Chevrolet Tracker | 2 DOOR HARD TOP, CONVERTIBLE | 4 Cyl 1.6L
View related parts
Chevrolet Tracker Automatic Transmission Range Select Lever Cable
Part Number: 91174191
Product Specifications
- Other Name: Cable,Automatic Transmission Range Selector Lever ; Cable,A/Trns Range Sel Lvr
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1996-1998 Chevrolet Tracker | 4 DOOR | 4 Cyl 1.6L
View related parts
Chevrolet Tracker Automatic Transmission Throttle Valve Cable
Part Number: 91175993
Product Specifications
- Other Name: Cable,Automatic Transmission Throttle Valve
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1996-1998 Chevrolet Tracker | 4 DOOR | 4 Cyl 1.6L
View related parts
Chevrolet Tracker Automatic Transmission Range Select Lever Cable
Part Number: 96058410
Product Specifications
- Other Name: Cable,Automatic Transmission Range Selector Lever
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1989-1998 Chevrolet Tracker | 2 DOOR HARD TOP, CONVERTIBLE | 4 Cyl 1.6L
View related parts
Chevrolet Tracker Automatic Transmission Shifter Cable Assembly (On Esn)
Part Number: 30025936
Product Specifications
- Other Name: Cable Asm,Select (On Esn) ; Cable, Transmission Shift Control Cable
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2001-2004 Chevrolet Tracker | 4 DOOR | 6 Cyl 2.5L
View related parts
Chevrolet Tracker Automatic Transmission Throttle Valve Cable
Part Number: 91176207
Product Specifications
- Other Name: Cable,Automatic Transmission Throttle Valve
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2001-2004 Chevrolet Tracker | 4 DOOR | 6 Cyl 2.5L
View related parts
Chevrolet Tracker Automatic Transmission Range Select Lever Cable
Part Number: 30020741
Product Specifications
- Other Name: Cable,Automatic Transmission Range Selector Lever
- Replaces: 30022947
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1999-2004 Chevrolet Tracker | 4 DOOR, CONVERTIBLE | 4 Cyl 2.0L

Chevrolet Tracker Shift Cable

Each OEM Chevrolet Tracker Shift Cable we offer is competitively priced and comes with the assurance of the manufacturer's warranty for the part. Furthermore, we guarantee the speedy delivery of your orders right to your doorstep. Our hassle-free return policy is also in place for your peace of mind.

Chevrolet Tracker Shift Cable Parts Questions & Experts Answers

Automatic Transmission Throttle Valve Cable
96058033
Q: How do you remove and reinstall the console box and Shift Cable on Chevrolet Tracker?
A: To release the console box, you will need to unscrew the console box on the front side and remove the rear clips and then pull the box up. Next, four bolts fixing the manual selector to the floor has to be unbolted and the unit has to lifted. Pull the coil and remove the end clip with the washer and the outer cable E-ring from the selector assembly. Lift the car and support it on jack stands and thereafter unbolt the lock nut on the cable end at the transmission moving the switch till a 'click' is heard before tightening the bolt. To remove the cable from the manual select lever pull down the lever to disconnect the cable then to remove the E-ring from the shift cable bracket and pull the cable from the vehicle. For installation the following process should be in reverse on the removal process, while align the cable before reinstallation of the console box, and test the vehicle to start only in Park and Neutral mode.
