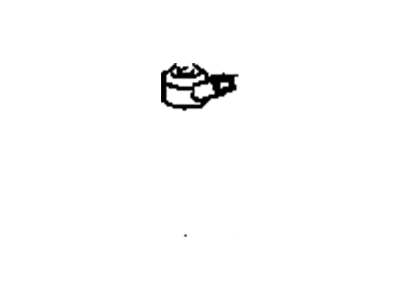

Oldsmobile 12567446 Sensor,Knock

You can Select Your Vehicle to check if 12567446 fits your vehicle.

Beneath the intake manifold, on the inner wall of the back side of the cylinder head, lies the knock sensor. To get to it, you will have to take off or remove and Intake Manifold. Remove the manifold and unplug the knock sensor electrical connector. Unplug the connector to unscrew it from a Knock Sensor. When installing this sensor follow same steps but in a reverse order. Torque tighten your knock sensor properly.

The knock sensor detects abnormal vibration (spark knock or pinging) in the engine. The knock control system is designed to reduce spark knock during periods of heavy detonation. This allows the engine to use maximum spark advance to improve driveability. Knock sensors produce an AC output voltage that increases with the severity of the knock. The signal is fed into the PCM and the liming is retarded to compensate for the severe detonation. To replace the sensor, disconnect the cable from the negative battery terminal. Raise the vehicle and place it securely on jackstands. On inline engines, the knock sensor is located on the left side of the block, to the rear of the air conditioning compressor. On V8 engines, there are two sensors: one on each side of the block. Raise the vehicle and support it securely on jackstands. To remove the right sensor on a V8 engine, remove the inner fender splash shield. Disconnect the wiring from the sensor. Remove the sensor bolt and the sensor. Installation is the reverse of removal. Tighten the bolt to 18 ft-lbs.

Sensor 2 is located towards the rear of the engine.
