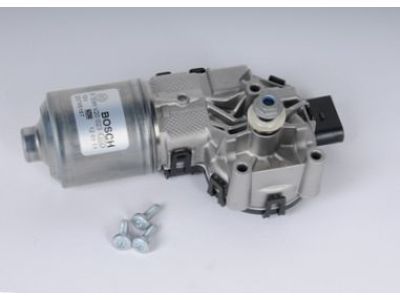

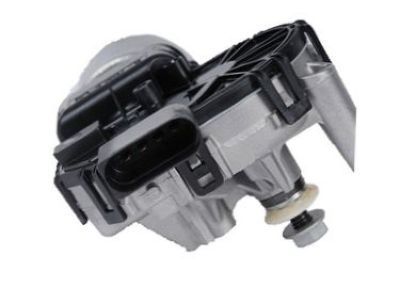

GMC 20785187 Motor Kit, Windshield Wiper

You can Select Your Vehicle to check if 20785187 fits your vehicle.

To remove the windshield wiper motor, begin by unscrewing the wiper arm nuts and marking the relationship of the wiper arms to their shafts. Remove the arms. Take off the plastic cowl cover and disconnect the electrical connector from the wiper motor.

To remove the rear wiper motor, start by removing the trim cap and unscrewing the wiper arm nut. Mark the relationship of the rear wiper arm to the motor shaft and remove the arm. Remove the trim panel from the liftgate and disconnect the electrical connector from the motor. Remove the rear wiper motor mounting. When installing, ensure the pivot shaft gasket is in place, and then proceed with the reverse of the removal process.

Start by removing the wiper arm nuts and marking the relationship of the wiper arms to their shafts. Then, remove both wiper arms. Next, remove the plastic cowl cover and disconnect the electrical connector from the wiper motor. Remove the two mounting bolts of the windshield wiper motor and linkage/transmission assembly, and then remove the assembly. Use a screwdriver or forked release tool to carefully pry the link rod from the pivot pin on the motor's crank arm. Mark the relationship of the crank arm to the motor shaft and remove the crank arm. Finally, remove the motor mounting bolts and remove the motor from its mounting bracket.
