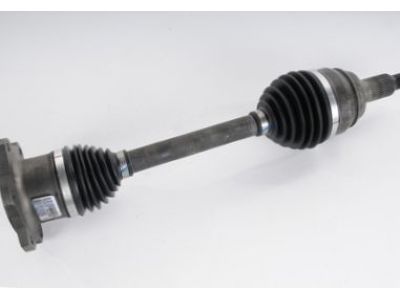

GM 22789359 Front Wheel Drive Shaft Assembly

You can Select Your Vehicle to check if 22789359 fits your vehicle.

To remove a semi-floating axle shaft, first loosen the rear wheel lug nuts and raise the vehicle on jackstands. Drain the differential lubricant and remove the differential cover. Remove the pinion shaft lock screw and withdraw the pinion shaft. For models with a locking differential, rotate the differential until the shaft touches the case for access to the C-locks. Remove the C-lock from the groove on the inner end of the axleshaft and withdraw the shaft, being careful not to damage the oil seal. To install, insert the axleshaft into the housing until it engages with the differential side gear, install the C-lock, and insert the pinion shaft. Install the cover, fill the differential with lubricant, and install the brake disc or drum. For a full-floating axle shaft, remove the bolts attaching the flange to the hub and withdraw the shaft from the housing. To install, hold the axleshaft level to engage the splines and use a new gasket on the flange. Tighten the flange bolts to the proper torque specifications.

Power is transmitted from the front differential/axle to the front wheels through a pair of axle shafts equipped with sliding constant velocity (CV) joints capable of both angular and axial motion. The inner ends of the axle shafts are bolted to an axleshaft connected to the differential side gears, while the outer ends have a stub shaft that is splined to the front hub and bearing assembly and locked in place with a large nut. The outer ends of the axle shafts are equipped with ball-and-cage type CV joints capable of angular but not axial movement. It is important to inspect the boots periodically for damage and leaking lubricant, as torn CV joint boots must be replaced immediately to prevent damage to the joints. If a boot is damaged, the CV joint can be disassembled and cleaned, but if any parts are damaged, the entire axle shaft assembly must be replaced as a unit. Symptoms of worn or damaged CV joints include lubricant leaks, clicking noise in turns, clunk when accelerating after coasting, and vibration at highway speeds. To check for wear in the CV joints and axle shafts, grasp each axle and rotate it in both directions while holding the CV joint housings, feeling for play indicating worn splines or sloppy CV joints. It is also important to check the axle shafts for cracks, dents, and distortion.

The initial steps to remove and install components in the front differential of selectable 4WD systems are as follows: Loosen the wheel lug nuts. Raise the vehicle securely on jackstands. Remove the right front wheel. Remove the differential carrier splash shield if equipped. Drain the lubricant from the front differential. For 4WD systems, unbolt the right driveaxle from the axleshaft flange and support it out of the way. Remove the front axle shift motor and, if applicable, disconnect the front stabilizer link or remove the front shock absorber/coil spring assembly. On 2500/3500 models, remove the front axle bracket bolts and slide the bracket forward for additional clearance. Support the differential carrier with a floor jack and a block of wood.

The driveaxle/hub nut (new) and the flange bolts should be tightened to the torque values specifications during installation.

After raising the vehicle and supporting it on jackstands, a jack should be positioned under the rear axle differential housing.

In 4WD models, an extension axle shaft is used on the right side to make up the difference in distance between the differential and the right front wheel.

If a boot is damaged, the CV joint can be disassembled and cleaned, but if any parts are damaged, the entire driveaxle assembly must be replaced as a unit.

When diagnosing axle problems, it is important to check for other possible causes such as road or tire noise, and to isolate engine and transmission noises.

The initial steps to remove and install components in the front differential of selectable 4WD systems are as follows: Loosen the wheel lug nuts. Raise the vehicle securely on jackstands. Remove the right front wheel. Remove the differential carrier splash shield if equipped. Drain the lubricant from the front differential. For 4WD systems, unbolt the right driveaxle from the axleshaft flange and support it out of the way. Remove the front axle shift motor and, if applicable, disconnect the front stabilizer link or remove the front shock absorber/coil spring assembly. On 2500/3500 models, remove the front axle bracket bolts and slide the bracket forward for additional clearance. Support the differential carrier with a floor jack and a block of wood.

The initial steps to remove and install components in the front differential of selectable 4WD systems are as follows: Loosen the wheel lug nuts. Raise the vehicle securely on jackstands. Remove the right front wheel. Remove the differential carrier splash shield if equipped. Drain the lubricant from the front differential. For 4WD systems, unbolt the right driveaxle from the axleshaft flange and support it out of the way. Remove the front axle shift motor and, if applicable, disconnect the front stabilizer link or remove the front shock absorber/coil spring assembly. On 2500/3500 models, remove the front axle bracket bolts and slide the bracket forward for additional clearance. Support the differential carrier with a floor jack and a block of wood.

The initial steps are to loosen the wheel lug nuts, raise the front of the vehicle, and support it securely on jackstands.

Power is transmitted through a pair of driveaxles equipped with sliding constant velocity (CV) joints capable of both angular and axial motion.

No, overhauling the differential requires special tools and is not cost-effective for a do-it-yourselfer.

The drive axle-to-axle shaft flange bolts should be removed while having an assistant apply the brake to prevent the driveaxle from turning.

Power is transmitted through a pair of driveaxles equipped with sliding constant velocity (CV) joints capable of both angular and axial motion.

The differential allows the outer rear wheel to turn at a higher speed than the inner tire when going around a corner.

It is also important to check the driveaxle shafts for cracks, dents, and distortion.

To remove and install components in the front differential for 4WD systems, follow these steps:Remove the bolts securing the axle tube to the differential carrier and the nuts attaching the tube to its support bracket.

To remove and install components in the front differential for AWD systems, follow these steps: Remove the stabilizer bar link and, if applicable, the front shock absorber. Unbolt the right driveaxle from the axleshaft flange, supporting it properly. Support the differential carrier with a floor jack and a block of wood. Remove nuts attaching the axle shaft to its support bracket and the bolts securing the axle shaft flange to the differential carrier. Use a brass punch and hammer to separate the axle shaft from the differential case side gear. Remove the inner axle shaft assembly and axle shaft. Replace the inner seal and bearing with a special tool, then apply RTV sealant to the differential sealing surface and install the inner axle shaft housing assembly. Install the axle shaft to the support bracket and align the splines with the differential side gear. Tap the axle shaft with a mallet until the ring (clip) aligns with the groove in the differential case side gear. Install the axle shaft to the inner flange and tighten the bolts. Reinstall the stabilizer link, fill the differential with lubricant, install the differential carrier splash shield, and finally, install the wheel and lug nuts. Lower the vehicle, tighten the lug nuts, and check for proper operation.

Before removing a semi-floating axle shaft, you should loosen the rear wheel lug nuts and raise the vehicle on jackstands.

Before removing the rear axle assembly, the following components need to be removed: driveshaft, shock absorbers, vent hose, brake hose, rear brake assemblies, parking brake cables, and rear wheel speed sensors.

The drive axle-to-axle shaft flange bolts should be removed while having an assistant apply the brake to prevent the driveaxle from turning.

For leaf spring models, the spring U-bolts should be disconnected, followed by removing the springplates. Then, the jack can be lowered under the differential to remove the rear axle assembly.

The differential allows the outer rear wheel to turn at a higher speed than the inner tire when going around a corner.

To remove the semi-floating axle shaft, you need to remove the C-lock from the groove on the inner end of the axleshaft and withdraw the shaft, being careful not to damage the oil seal.

The drive axle-to-axle shaft flange bolts should be removed while having an assistant apply the brake to prevent the driveaxle from turning.

To install a full-floating axle shaft, you should hold the axleshaft level to engage the splines and use a new gasket on the flange. Finally, tighten the flange bolts to the proper torque specifications.

After raising the vehicle and supporting it on jackstands, a jack should be positioned under the rear axle differential housing.

The initial steps are to loosen the rear wheel lug nuts, raise the rear of the vehicle, and support it securely on jackstands.

The next step is to drain the differential lubricant and remove the differential cover.

The outer ends of the driveaxles are equipped with ball-and-cage type CV joints capable of angular but not axial movement.

The next step is to drain the differential lubricant and remove the differential cover.

For coil spring models, the links for the electronic suspension control sensors should be detached, followed by detaching the track bar from the rear axle. The stabilizer bar, coil springs, and upper and lower trailing arms should be disconnected from the axle assembly. Finally, the jack can be lowered under the differential to remove the rear axle assembly.

If the vehicle has a differential carrier splash shield, it should be removed after removing the driveaxle/hub nut.

To remove and install components in the front differential for AWD systems, follow these steps: Remove the stabilizer bar link and, if applicable, the front shock absorber. Unbolt the right driveaxle from the axleshaft flange, supporting it properly. Support the differential carrier with a floor jack and a block of wood. Remove nuts attaching the axle shaft to its support bracket and the bolts securing the axle shaft flange to the differential carrier. Use a brass punch and hammer to separate the axle shaft from the differential case side gear. Remove the inner axle shaft assembly and axle shaft. Replace the inner seal and bearing with a special tool, then apply RTV sealant to the differential sealing surface and install the inner axle shaft housing assembly. Install the axle shaft to the support bracket and align the splines with the differential side gear. Tap the axle shaft with a mallet until the ring (clip) aligns with the groove in the differential case side gear. Install the axle shaft to the inner flange and tighten the bolts. Reinstall the stabilizer link, fill the differential with lubricant, install the differential carrier splash shield, and finally, install the wheel and lug nuts. Lower the vehicle, tighten the lug nuts, and check for proper operation.

No, overhauling the differential requires special tools and is not cost-effective for a do-it-yourselfer.
