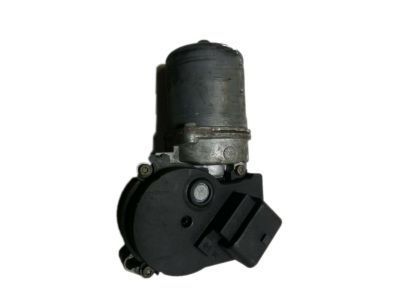

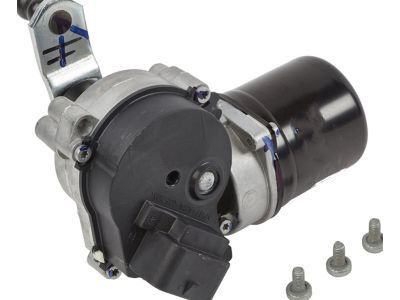

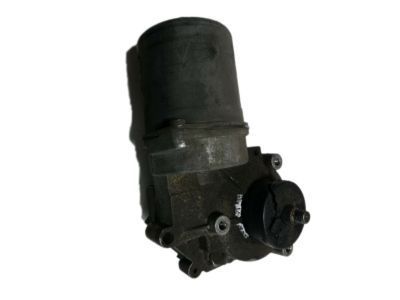

GM 19354906 Motor Asm,Windshield Wiper

You can Select Your Vehicle to check if 19354906 fits your vehicle.

To perform replacement of the windshield wiper motor, first, there is the need to remove the wiper arm nuts and also indicate the position of the wiper arms to their respective shafts before removing the both wiper arms. Third, take of the plastic cowl covers and pull the electrical connector on the wiper motor. Next two mounting bolts for the wiper motor and link assembly should be freed and then wiper motor and link assembly is to be removed. After that, unbolt the crank arm to the motor shaft, and note and break the crank arm to the motor shaft connection. Continue by unscrewing the two motor mounting bolts to get the motor out of the mounting bracket and the process of installation is almost the same as that of the removal. When installing the liftgate wiper motor, first, have to remove the wiper arm nut and had a record of the arms' position to their respective shafts. Next remove the liftgate rear trim panel, this can be done by removing three mounting fasteners and disconnecting the electrical connector. Last of all, to remove it; pull the motor out of the rubber grommet and for installation, it is as simple as reverse of the removal.
