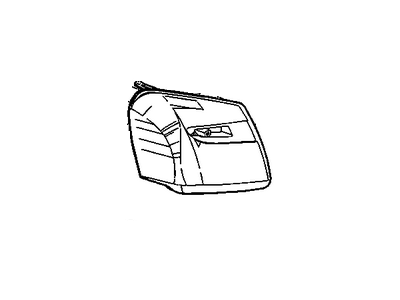

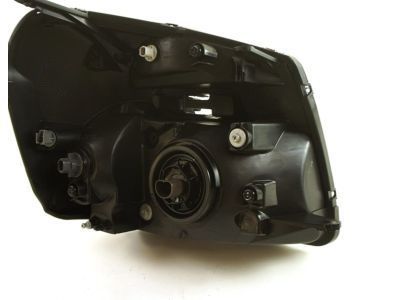

GM 15888058 Capsule/Headlamp/Fog Lamp Headlamp

You can Select Your Vehicle to check if 15888058 fits your vehicle.

Disconnect the cable from the negative battery terminal. On 2009 and earlier Equinox models, remove the grille center trim. This can be done by using a trim tool to pry the center trim from the headlight housing, and remove the center portion of the trim by pressing the retainers through the grille to release it. On all 2010 and later models remove the front bumper cover. Next, remove the upper headlight housing mounting bolts. This can be done by removing the headlight housing mounting screws. Disengage the headlight assembly side pin retainers by firmly pulling forward. This can be done by pulling out on the bottom outer corner of the housing to detach the housing lower rear retaining pin. Maneuver the housing out of the bumper cover. This can be done by pushing down on the bumper cover and removing the headlight housing. Disconnect the electrical connectors from the bulb holders. Installation is the reverse of removal.

Position masking tape on the wall in reference to the vehicle centerline and the centerlines of both headlights. Measure the height of the headlight reference marks from the ground and position a horizontal tape line on the wall at the same height.
