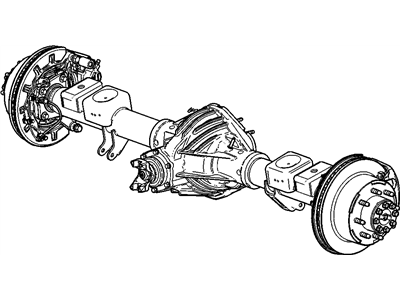

GM 22822531 Axle Assembly, Rear

You can Select Your Vehicle to check if 22822531 fits your vehicle.

To remove and install components in the front differential for 4WD systems, follow these steps: Remove the bolts securing the axle tube to the differential carrier and the nuts attaching the tube to its support bracket. Carefully remove the output shaft tube, ensuring no components fall out. Mount the tube in a vise and remove the internal components. Measure and remove the axleshaft bearing using a slide hammer and bearing remover attachment. For installation, install the bearing to the original depth using a bearing driver or socket, then install a new seal and deflector, lubricating the seal lips with grease. Carefully drive in the axleshaft, followed by the internal components. Apply RTV sealant to the tube-to-differential housing mating surface, and install the tube assembly, tightening bolts and nuts to specified torques. Reinstall the driveaxle, front axle shift motor, and fill the differential with lubricant.

The inner ends of the driveaxles are bolted to an axleshaft connected to the differential side gears.

No, overhauling the differential requires special tools and is not cost-effective for a do-it-yourselfer.

Yes, there is an optional locking limited-slip rear axle available.

If the vehicle has a differential carrier splash shield, it should be removed after removing the driveaxle/hub nut.

After removing the differential cover, you need to remove the pinion shaft lock screw and withdraw the pinion shaft.

It is also important to check the driveaxle shafts for cracks, dents, and distortion.

After installing the rear axle assembly, the brakes should be bled, the wheels and lug nuts should be installed, and the vehicle should be lowered. Finally, the lug nuts should be tightened to the proper torque specification.

To remove and install components in the front differential for 4WD systems, follow these steps: Remove the bolts securing the axle tube to the differential carrier and the nuts attaching the tube to its support bracket. Carefully remove the output shaft tube, ensuring no components fall out. Mount the tube in a vise and remove the internal components. Measure and remove the axleshaft bearing using a slide hammer and bearing remover attachment. For installation, install the bearing to the original depth using a bearing driver or socket, then install a new seal and deflector, lubricating the seal lips with grease. Carefully drive in the axleshaft, followed by the internal components. Apply RTV sealant to the tube-to-differential housing mating surface, and install the tube assembly, tightening bolts and nuts to specified torques. Reinstall the driveaxle, front axle shift motor, and fill the differential with lubricant.

To remove the semi-floating axle shaft, you need to remove the C-lock from the groove on the inner end of the axleshaft and withdraw the shaft, being careful not to damage the oil seal.

The drive axle-to-axle shaft flange bolts should be removed while having an assistant apply the brake to prevent the driveaxle from turning.

To install the rear axle assembly, the reverse order of removal should be followed. All suspension and brake fasteners should be tightened to the torque value specifications.
