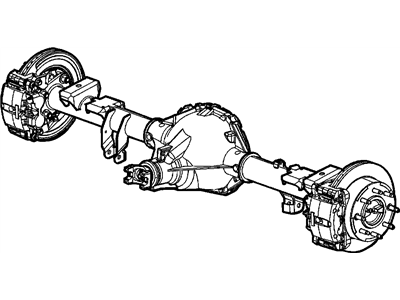

GM 15815774 Axle Assembly, Rear (4.10 Ratio)

You can Select Your Vehicle to check if 15815774 fits your vehicle.

Loosen the wheel lug nuts before removing the axle shaft of a vehicle. Start by loosening the wheel lug nuts, driving it up to jack stands, and securely supporting it on jackstands. Pry off the hub cover and remove the axle shaft/hub nut, bracing the hub to prevent it from rotating. Remove differential carrier splash shield if equipped and then remove axle shaft-to-axle shaft flange bolts (while having an assistant apply the brake to stop axle shaft from turning). Drop inner end of axle shaft low enough in order to pull stub shaft out of hub, guiding carefully under car as you take out entire axle shaft with other hand. To install an axle shaft , lubricate splines on stubshaft with multipurpose grease then tighten axleshaft/ hub nut (new) and flange bolts according to specified torque values. Then finally fasten wheels using appropriate torque specification for lug nuts.

After removing the differential cover, you need to remove the pinion shaft lock screw and withdraw the pinion shaft.

After installing the rear axle assembly, the brakes should be bled, the wheels and lug nuts should be installed, and the vehicle should be lowered. Finally, the lug nuts should be tightened to the proper torque specification.

If a boot is damaged, the CV joint can be disassembled and cleaned, but if any parts are damaged, the entire driveaxle assembly must be replaced as a unit.

To remove and install components in the front differential for AWD systems, follow these steps: Remove the stabilizer bar link and, if applicable, the front shock absorber. Unbolt the right driveaxle from the axleshaft flange, supporting it properly. Support the differential carrier with a floor jack and a block of wood. Remove nuts attaching the axle shaft to its support bracket and the bolts securing the axle shaft flange to the differential carrier. Use a brass punch and hammer to separate the axle shaft from the differential case side gear. Remove the inner axle shaft assembly and axle shaft. Replace the inner seal and bearing with a special tool, then apply RTV sealant to the differential sealing surface and install the inner axle shaft housing assembly. Install the axle shaft to the support bracket and align the splines with the differential side gear. Tap the axle shaft with a mallet until the ring (clip) aligns with the groove in the differential case side gear. Install the axle shaft to the inner flange and tighten the bolts. Reinstall the stabilizer link, fill the differential with lubricant, install the differential carrier splash shield, and finally, install the wheel and lug nuts. Lower the vehicle, tighten the lug nuts, and check for proper operation.

The optional locking limited-slip rear axle slows the rotation of the differential case when one wheel loses traction.

For models with a locking differential, you should rotate the differential until the shaft touches the case for access to the C-locks.

The driveaxle/hub nut (new) and the flange bolts should be tightened to the torque values specifications during installation.

The initial steps to remove and install components in the front differential of selectable 4WD systems are as follows: Loosen the wheel lug nuts. Raise the vehicle securely on jackstands. Remove the right front wheel. Remove the differential carrier splash shield if equipped. Drain the lubricant from the front differential. For 4WD systems, unbolt the right driveaxle from the axleshaft flange and support it out of the way. Remove the front axle shift motor and, if applicable, disconnect the front stabilizer link or remove the front shock absorber/coil spring assembly. On 2500/3500 models, remove the front axle bracket bolts and slide the bracket forward for additional clearance. Support the differential carrier with a floor jack and a block of wood.

For coil spring models, the links for the electronic suspension control sensors should be detached, followed by detaching the track bar from the rear axle. The stabilizer bar, coil springs, and upper and lower trailing arms should be disconnected from the axle assembly. Finally, the jack can be lowered under the differential to remove the rear axle assembly.

The differential allows the outer rear wheel to turn at a higher speed than the inner tire when going around a corner.

The inner ends of the driveaxles are bolted to an axleshaft connected to the differential side gears.
