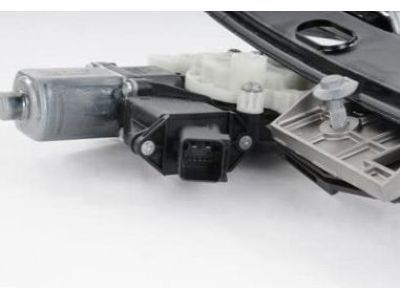

Chevrolet 92249759 Front Side Door Window Regulator

You can Select Your Vehicle to check if 92249759 fits your vehicle.

To replace the regulator motor for the door window, the following require to be undone, the door trim panel and the watershield. If the position of the window allows, position the regulator to the fully up position then remove the electrical connector from the regulator motor, one of these can be affixed to the window since the window can be locked. Subsequently, the procedure will involve the removal of the door speaker and, through the speaker hole, the three screws securing the position of the regulator motor will have to be unscrewed too, before the motor can be removed. The manner to install it is unlike when you are uninstalling it; it is done in the reverse way. For the quarter window in convertible models, first, unbolt the quarter window regulator assembly, then take out the three mounting screws and separate the motor from the regulator ; when rebolting ensure that the gear washer is prefixed before bolting. When addressing the needs of the regulator assembly for door window begin by the removal of the door trim panel, watershield, then the window glass. Pull the window regulator mechanism down to three-quarter turn, unbolt the mounting bolts and slide the regulator assembly out and disconnect both electronic connectors. To have access to the quarter window in models with convertibles, first, it is necessary to detach the rear seat and quarter trim panel, take the window regulator mechanism down as far as possible, and, finally, to take out the mounting nuts/bolts as well as disconnect the electrical connivers. The process of installation for both types is the same, as those shown above, but done in the reverse manner.
