How to remove the Coolant Reservoir?

To remove the pressure cap, use a suction device to remove coolant from the reservoir before disconnecting the hoses. Save the coolant if it's still in good condition. Disconnect the upper hose from the reservoir, checking for cracks or hardness and replacing if necessary. Remove the reservoir mounting bolts, lift the reservoir, and disconnect the low-level sensor. Disconnect the hose from the bottom of the reservoir and plug it immediately. Clean the reservoir's interior with soapy water and a brush to remove any deposits, and inspect for damage. The installation is simply the reverse of the removal steps.

Genuine Saturn Vue Coolant Reservoir

Coolant Tank Reservoir

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

2 Coolant Reservoirs found

View related parts

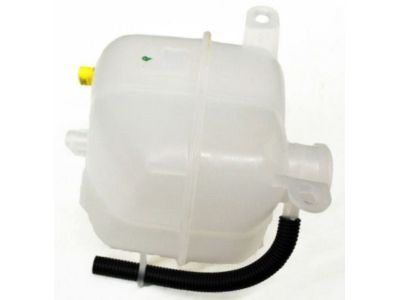

Saturn Vue Tank,Radiator Surge
Part Number: 20813489
$49.26 MSRP: $73.64
You Save: $24.38 (34%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: TANK, Engine Coolant Recovery; Expansion Tank, Reservoir
- Replaces: 96455727
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2008-2010 Saturn Vue | SUV HYBRID FWD, XE AWD, XE FWD, XR AWD, XR FWD | 4 Cyl 2.4L, 6 Cyl 3.5L, 6 Cyl 3.6L
View related parts
Saturn Vue Tank Asm,Radiator Surge
Part Number: 10381902
Product Specifications
- Other Name: TANK, Engine Coolant Recovery; Reservoir, Reservoir Assembly
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2002-2007 Saturn Vue | AWD, FWD, MANUAL TRANS HYBRID FWD, UPLEVEL AWD, UPLEVEL FWD, UPLEVEL V6 AWD, UPLEVEL V6 FWD | 4 Cyl 2.2L, 4 Cyl 2.4L, 6 Cyl 3.0L, 6 Cyl 3.5L

Saturn Vue Coolant Reservoir Parts Questions & Experts Answers

Tank Asm,Radiator Surge
10381902
Q: How to remove the Coolant Reservoir?
A: To remove the pressure cap, use a suction device to remove coolant from the reservoir before disconnecting the hoses. Save the coolant if it's still in good condition. Disconnect the upper hose from the reservoir, checking for cracks or hardness and replacing if necessary. Remove the reservoir mounting bolts, lift the reservoir, and disconnect the low-level sensor. Disconnect the hose from the bottom of the reservoir and plug it immediately. Clean the reservoir's interior with soapy water and a brush to remove any deposits, and inspect for damage. The installation is simply the reverse of the removal steps.
