How do I adjust and replace the brake light switch?

At the top of the brake pedal is where the brake light switch is located. To remove it, detach the wiring harness from the brake light switch before then unscrewing and loosening the switch from its bracket on the pedal. The installation process is simply reverse of removing. For adjustment, check and, if necessary, adjust brake pedal height. Loosen the switch locknut, and adjust the switch so that the distance the plunger protrudes is within the range specifications. If you're unable to measure this distance, adjust the plunger so that it lightly contacts the pedal stop. Tighten the locknut. Plug electric connector into switch and reconnect battery; this is a good time to ensure that when depressed, brake lights still come on or go off as well as when released for them to be replaced in case it happens. If not, repeat adjustment procedure until brake lights work properly.

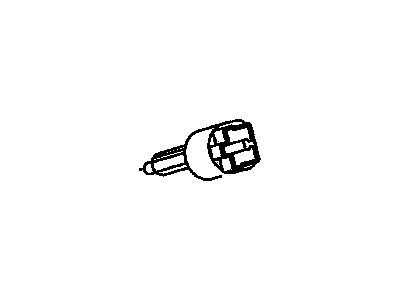

Genuine Pontiac Vibe Brake Light Switch

Brake Lamp Switch

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

3 Brake Light Switches found

View related parts
Pontiac Vibe Switch Kit,Stop Lamp
Part Number: 19204485
$39.24 MSRP: $58.65
You Save: $19.41 (34%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: SWITCH KIT, Stop Lamp Switch; Stoplamp Switch
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2009-2010 Pontiac Vibe | 4 DOOR AWD, ALL PURPOSE 4 DOOR, FWD GT | 4 Cyl 1.8L, 4 Cyl 2.4L
View related parts
Pontiac Vibe Switch,Stop Lamp
Part Number: 88969670
Product Specifications
- Other Name: SWITCH, Stop Lamp Switch; Stoplamp Switch
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2003-2008 Pontiac Vibe | ALL PURPOSE 4 DOOR, ALL PURPOSE 4 DOOR AWD, ALL PURPOSE 4 DOOR GT | 4 Cyl 1.8L
View related parts
Pontiac Vibe Switch,Stop Lamp
Part Number: 88969671
Product Specifications
- Other Name: SWITCH, Stop Lamp Switch; Stoplamp Switch
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2003-2008 Pontiac Vibe | ALL PURPOSE 4 DOOR, ALL PURPOSE 4 DOOR AWD, ALL PURPOSE 4 DOOR GT | 4 Cyl 1.8L

Pontiac Vibe Brake Light Switch Parts Questions & Experts Answers

Switch,Stop Lamp
88969671
Q: How do I adjust and replace the brake light switch?
A: At the top of the brake pedal is where the brake light switch is located. To remove it, detach the wiring harness from the brake light switch before then unscrewing and loosening the switch from its bracket on the pedal. The installation process is simply reverse of removing. For adjustment, check and, if necessary, adjust brake pedal height. Loosen the switch locknut, and adjust the switch so that the distance the plunger protrudes is within the range specifications. If you're unable to measure this distance, adjust the plunger so that it lightly contacts the pedal stop. Tighten the locknut. Plug electric connector into switch and reconnect battery; this is a good time to ensure that when depressed, brake lights still come on or go off as well as when released for them to be replaced in case it happens. If not, repeat adjustment procedure until brake lights work properly.
