How to replace the automatic transaxle fluid and Filter?

To replace automatic transaxle fluid, gather the recommended fluid, jack stands, wrenches, a four-quart drain pan, newspapers, and rags. Warm up the fluid by driving, then raise the vehicle on jack stands. Remove the lower engine splash shield if necessary. Position the drain pan under the transaxle pan's drain plug, remove the plug, and let the fluid drain. Reinstall the plug securely. Remove the transaxle pan bolts and pry the pan loose for further drainage. Remove the filter retaining bolts, disconnect the clip if present, and replace the filter. Clean the gasket surfaces of the fluid pan and reinstall any magnets. Install a new gasket, reposition the fluid pan, and secure the bolts. Lower the vehicle, add new fluid through the dipstick tube, and let it drain into the pan. Start the engine, shift through all positions, return to Park, and apply the brake. Check and add fluid up to the Cool level on the dipstick with the engine idling.

Genuine Pontiac Vibe Automatic Transmission Filter

AT Filter

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

4 Automatic Transmission Filters found

View related parts

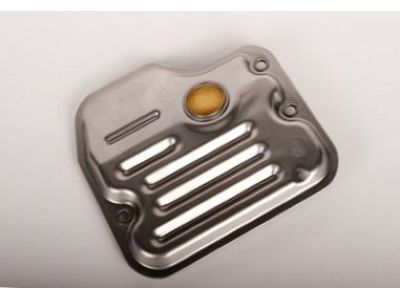

Pontiac Vibe Filter,Automatic Transmission Fluid
Part Number: 88972067
$62.18 MSRP: $111.54
You Save: $49.36 (45%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: FILTER, Transmission Oil Suction Tube; Filter
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2003-2008 Pontiac Vibe | ALL PURPOSE 4 DOOR | 4 Cyl 1.8L
View related parts
Pontiac Vibe Filter,Automatic Transmission Fluid
Part Number: 88975989
Product Specifications
- Other Name: FILTER, Transmission Oil Suction Tube; Filter
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2009-2010 Pontiac Vibe | ALL PURPOSE 4 DOOR, FWD GT | 4 Cyl 2.4L
View related parts
Pontiac Vibe Filter,Automatic Transmission Fluid
Part Number: 88975197
Product Specifications
- Other Name: FILTER, Transmission Oil Suction Tube; Filter
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2009-2010 Pontiac Vibe | 4 DOOR AWD | 4 Cyl 2.4L
View related parts
Pontiac Vibe Filter Asm,Automatic Transmission Fluid
Part Number: 19205499
Product Specifications
- Other Name: FILTER, Transmission Oil Suction Tube; Filter
- Replaces: 88971813
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2009-2010 Pontiac Vibe | ALL PURPOSE 4 DOOR | 4 Cyl 1.8L
- 2003-2006 Pontiac Vibe | ALL PURPOSE 4 DOOR AWD | 4 Cyl 1.8L

Pontiac Vibe Automatic Transmission Filter

The Automatic Automatic Transmission Filter is an important part of many vehicles including Pontiac Vibe automobiles and it directs dust and other pollutions away from the transmission system by capturing them in the Automatic Transmission Filter. Such filtration helps avoid blockages in passages in both systems that lead to the damage of the moving parts or in fact the transmission. Pontiac Vibe models have several types of Transmission Filters such as those that are installed behind a removable fluid pan within the transmission area and are well accessible for replacement. A few of the designs may also have in-line filters which can be fitted just below the transmission and above the fluid cooler. Also, there are external spin-on or cartridge type filters for some systems that provide easier access and higher frequency of filter replacements. Performance filters are also available that offer better filtration than the standard ones and better flow characteristics and hence better fuel efficiency and longer life.

Each OEM Pontiac Vibe Automatic Transmission Filter we offer is competitively priced and comes with the assurance of the manufacturer's warranty for the part. Furthermore, we guarantee the speedy delivery of your orders right to your doorstep. Our hassle-free return policy is also in place for your peace of mind.

Pontiac Vibe Automatic Transmission Filter Parts Questions & Experts Answers

Filter,Automatic Transmission Fluid
88972067
Q: How to replace the automatic transaxle fluid and Filter?
A: To replace automatic transaxle fluid, gather the recommended fluid, jack stands, wrenches, a four-quart drain pan, newspapers, and rags. Warm up the fluid by driving, then raise the vehicle on jack stands. Remove the lower engine splash shield if necessary. Position the drain pan under the transaxle pan's drain plug, remove the plug, and let the fluid drain. Reinstall the plug securely. Remove the transaxle pan bolts and pry the pan loose for further drainage. Remove the filter retaining bolts, disconnect the clip if present, and replace the filter. Clean the gasket surfaces of the fluid pan and reinstall any magnets. Install a new gasket, reposition the fluid pan, and secure the bolts. Lower the vehicle, add new fluid through the dipstick tube, and let it drain into the pan. Start the engine, shift through all positions, return to Park, and apply the brake. Check and add fluid up to the Cool level on the dipstick with the engine idling.
