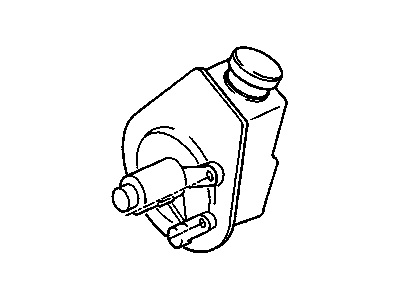

Genuine Pontiac Phoenix Power Steering Pump
Power Steering Pump Unit- Select Vehicle by Model
- Select Vehicle by VIN
Select Vehicle by Model
orMake
Model
Year
Select Vehicle by VIN
For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).
6 Power Steering Pumps found
Pontiac Phoenix Power Steering Pump Parts Questions & Experts Answers
- Q: How to remove and replace a power steering pump on L4 engine?A: Raise the front of the car and support it with jackstands. Remove the radiator hose clamp bolt. Disconnect the pressure hose from its fitting on the rear of the pump. Remove the clamp that secures the flexible return hose to its rigid steel line and disconnect the hose from the line. Loosen the pump's attaching bolts and nuts, move the pump toward the engine and remove the belt from the pulley. Remove the bolt and spacer used in the upper rear mounting location of the pump that holds the pump to the bracket. Remove the 3 bolts that hold the left pump bracket to the engine block. Remove the pump and left pump bracket. Remove the pump from the pump bracket. Remove the 3 bolts that secure the right pump bracket to the pump. If the power steering pump needs replacing, a rebuilt unit can be obtained and is less expensive than a new pump. Install the pump by reversing the removal procedure. Adjust the belt tension. Bleed the power steering system.
- Q: How to disconnect and remove the blower motor, drain the radiator, and replace the power steering pump on V6 engine?A: First, disconnect the negative battery terminal then unplug the electrical connector. After that, remove the blower motor. Drain the radiator and disconnect the heater hose at the water pump. Disconnect pressure and return hoses from their connections. Remove 5 bolts securing right pump bracket to pump and rear engine head. Loosen pump mounting bolts, move pump towards engine and remove belt from pulley. Take out pump from left pump bracket and remove it from engine compartment. If power steering pump needs replacing, a rebuilt unit is less expensive than a new one can be obtained. Install the pump by doing the removal procedure backwards. Adjust belt tension and bleed power steering system.
