Genuine Pontiac Firebird Wheel Cylinder
Brake Wheel Cylinder- Select Vehicle by Model
- Select Vehicle by VIN
Select Vehicle by Model
orMake
Model
Year
Select Vehicle by VIN
For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).
3 Wheel Cylinders found

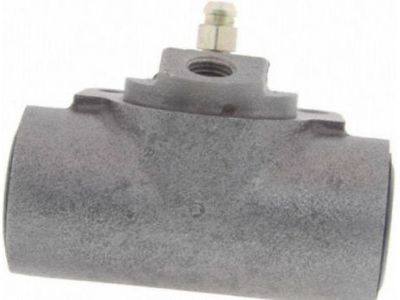

Pontiac Firebird Cylinder Asm,Rear Brake
Part Number: 19175609$10.29 MSRP: $18.46You Save: $8.17 (45%)
Pontiac Firebird Wheel Cylinder
The Wheel Cylinder as a part of hydraulic drum brake system in Pontiac Firebird automobiles was intended to force the brake shoes against the brake drum in order to enhance braking efficiency. It works with the help of a hydraulic system that on applying pressure on the pistons within the cylinder moves the shoes forward to the drum. The Wheel Cylinder comprises a central cylinder, two pistons having rubber sealing elements, and an expander spring for making the seals stand upright. During the production of Pontiac Firebird models, car builders have used both cast-iron and aluminum Wheel Cylinders, in the contemporary models, aluminum Wheel Cylinders are preferable in an effort to avoid rusting. For designs which use two single piston limbs, the primary function remains the same regardless of the type of limb configuration. Thus, it is required to perform the regular inspection and maintenance, since the leakage would decrease the braking capacity of the vehicle and in this case, further rebuilding or even replacement of the Wheel Cylinder- for the safe driving.
Each OEM Pontiac Firebird Wheel Cylinder we offer is competitively priced and comes with the assurance of the manufacturer's warranty for the part. Furthermore, we guarantee the speedy delivery of your orders right to your doorstep. Our hassle-free return policy is also in place for your peace of mind.
Pontiac Firebird Wheel Cylinder Parts Questions & Experts Answers
- Q: How do you rebuild a wheel cylinder on Pontiac Firebird?A: Get the wheel cylinder rebuild kits before the start of the procedure. First, the brake shoes need to be taken out, second the brake line fitting need to be disconnected from the back end of the wheel cylinder and then the brake line needs to be capped to avoid contamination. Inserting curved needle-nose pliers remove the wheel cylinder retaining clip at the rear of the wheel cylinder. Otherwise, jam two awls into the access slots between the cylinder pilot and the retainer locking tabs and the latter will be bent away both at the same time. After this, detach the clip and then, remove the cylinder and put it on the cleaned working table. Special Tools for this procedure may include: Bleeder valve removal tool, Clamp to lock the bleeder valve during removal Rear access tool Piston removal tool Boots, pistons and seals removal tool Compressor to apply pressure Seal Installation tool Seal puller tool Spring compressor tool Front bearing retainer hold Remove the bleeder valve, the seals, pistons, boots, and the Spring assembly from the cylinder body. Clean the wheel cylinder using brake fluid, denatureal alcohol or brake system cleaner but do not use oils, greases, lacquers or petroleum-based solvents. Finally, use a pressurised air to expel as much liquid as possible and clear the passages. Check the condition of the cylinder bore as to corrosion and scores; Light scoring or rusting can be polished out with crocus paper but if the defects are deep or the bore is scored, replace the cylinder. Clean brake fluid should be applied to the new seals and the brake cylinder should then be assembled with the boots correctly positioned. Place the wheel cylinder on the backing plate as before and fasten it with the help of the new retaining clip. Begin the brake line fitting into the threads of the wheel cylinder and then with pressing the retaining clip to the wheel cylinder use the screwed handle between the wheel cylinder and the axle flange. Make sure that the clip and the cylinder are well seated, now remove the screwdriver and tighten the brake line fitting. Last of all, bleed the brake system.
