How to remove and install a door window regulator and motor assembly?

Remove the door trim panel and the plastic watershield. Disengage the door Window Regulator from the regulator, then tape the Window Regulator in the "up" position, with the tape wrapping around the door frame. On power window models, be sure to remove the key from the ignition switch. On power window models, disconnect the electrical connector from the Window Regulator motor. The regulator assembly is comprised of a front and rear section, connected by cable. Remove the appropriate bolts and loosen the others. Remove the Window Regulator/motor assembly from the door, being careful not to kink the cables connecting the two sections of the regulator assembly. Lubricate the rollers and wear points on the regulator with white grease before installation. Installation is the reverse of removal. For the rear, remove the door trim panel and the plastic watershield. Disengage the door Window Regulator from the regulator, then tape the Window Regulator in the "up" position, with the tape wrapping around the door frame. On power window models, be sure to remove the key from the ignition switch and disconnect the electrical connector from the Window Regulator motor. Loosen the regulator/motor assembly mounting bolts. Move the regulator so that the bolts clear the slots in the door, then remove the Window Regulator/motor assembly from the door. Lubricate the rollers and wear points on the regulator with white grease before installation. Installation is the reverse of removal.

Genuine Chevrolet HHR Window Regulator

Electric Power Window Regulator

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

4 Window Regulators found

View related parts

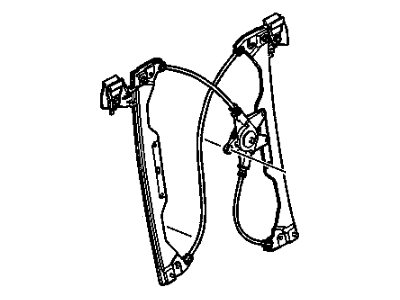

Chevrolet HHR Front Side Door Window Regulator Assembly
Part Number: 22714331
$214.95 MSRP: $390.82
You Save: $175.87 (45%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Regulator Assembly, Front Side Door Window; Regulator, Window Regulator
- Position: Front
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2006-2011 Chevrolet HHR | 5 DOOR HIGH ROOF HATCHBACK, 5 DOOR HIGH ROOF HATCHBACK SS, 5 DOOR HIGH ROOF PANEL, 5 DOOR HIGH ROOF PANEL SS, 5 DOOR UPLEVEL HIGH ROOF HATCHBACK, 5 DOOR UPLEVEL HIGH ROOF PANEL | 4 Cyl 2.0L, 4 Cyl 2.2L, 4 Cyl 2.2L Flex, 4 Cyl 2.4L
View related parts

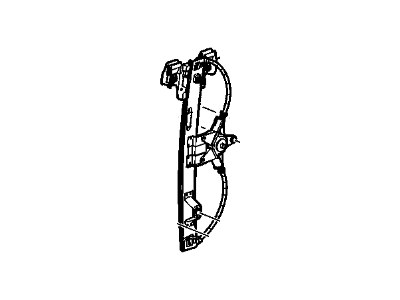

Chevrolet HHR Rear Side Door Window Regulator Assembly
Part Number: 22714333
Product Specifications
- Other Name: Regulator Assembly, Rear Side Door Window; Regulator, Window Regulator
- Position: Rear
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2006-2011 Chevrolet HHR | 5 DOOR HIGH ROOF HATCHBACK, 5 DOOR HIGH ROOF HATCHBACK SS, 5 DOOR UPLEVEL HIGH ROOF HATCHBACK | 4 Cyl 2.0L, 4 Cyl 2.2L, 4 Cyl 2.2L Flex, 4 Cyl 2.4L
View related parts
Chevrolet HHR Rear Side Door Window Regulator Assembly
Part Number: 22714334
Product Specifications
- Other Name: Regulator Assembly, Rear Side Door Window; Regulator, Window Regulator
- Position: Rear
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2006-2011 Chevrolet HHR | 5 DOOR HIGH ROOF HATCHBACK, 5 DOOR HIGH ROOF HATCHBACK SS, 5 DOOR UPLEVEL HIGH ROOF HATCHBACK | 4 Cyl 2.0L, 4 Cyl 2.2L, 4 Cyl 2.2L Flex, 4 Cyl 2.4L
View related parts
Chevrolet HHR Front Side Door Window Regulator Assembly
Part Number: 22714332
Product Specifications
- Other Name: Regulator Assembly, Front Side Door Window; Regulator, Window Regulator
- Position: Front
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2006-2011 Chevrolet HHR | 5 DOOR HIGH ROOF HATCHBACK, 5 DOOR HIGH ROOF HATCHBACK SS, 5 DOOR HIGH ROOF PANEL, 5 DOOR HIGH ROOF PANEL SS, 5 DOOR UPLEVEL HIGH ROOF HATCHBACK, 5 DOOR UPLEVEL HIGH ROOF PANEL | 4 Cyl 2.0L, 4 Cyl 2.2L, 4 Cyl 2.2L Flex, 4 Cyl 2.4L

Chevrolet HHR Window Regulator

Chevrolet HHR Window Regulator is an important item that will facilitate the easy control of the up and down operation of the car's windows. These regulators are also very delicate and therefore get damaged over time and time often leads to leakage which is very inconveniencing. Chevrolet HHR cars can come equipped with power or manual type window regulators; they could be either scissor type or cable type. As if OEM brand regulators are installed in the vehicle's door glass, it is possible to eliminate bad regulators and install better ones that are tailored to its standards. These are long lasting regulators with the capacity to offer a long service life in maintaining the functionality of Chevrolet HHR window systems.

Each OEM Chevrolet HHR Window Regulator we offer is competitively priced and comes with the assurance of the manufacturer's warranty for the part. Furthermore, we guarantee the speedy delivery of your orders right to your doorstep. Our hassle-free return policy is also in place for your peace of mind.

Chevrolet HHR Window Regulator Parts Questions & Experts Answers

Front Side Door Window Regulator Assembly
22714331
Q: How to remove and install a door window regulator and motor assembly?
A: Remove the door trim panel and the plastic watershield. Disengage the door Window Regulator from the regulator, then tape the Window Regulator in the "up" position, with the tape wrapping around the door frame. On power window models, be sure to remove the key from the ignition switch. On power window models, disconnect the electrical connector from the Window Regulator motor. The regulator assembly is comprised of a front and rear section, connected by cable. Remove the appropriate bolts and loosen the others. Remove the Window Regulator/motor assembly from the door, being careful not to kink the cables connecting the two sections of the regulator assembly. Lubricate the rollers and wear points on the regulator with white grease before installation. Installation is the reverse of removal. For the rear, remove the door trim panel and the plastic watershield. Disengage the door Window Regulator from the regulator, then tape the Window Regulator in the "up" position, with the tape wrapping around the door frame. On power window models, be sure to remove the key from the ignition switch and disconnect the electrical connector from the Window Regulator motor. Loosen the regulator/motor assembly mounting bolts. Move the regulator so that the bolts clear the slots in the door, then remove the Window Regulator/motor assembly from the door. Lubricate the rollers and wear points on the regulator with white grease before installation. Installation is the reverse of removal.
