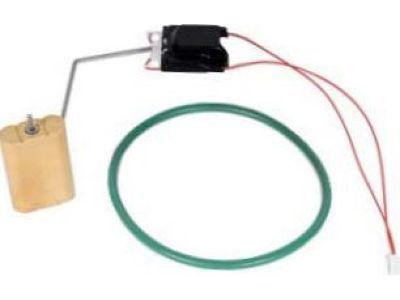

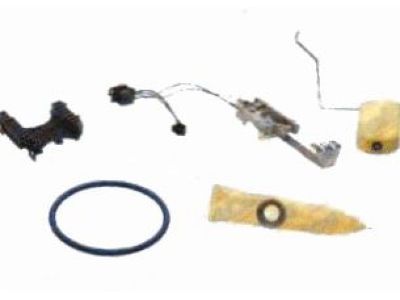

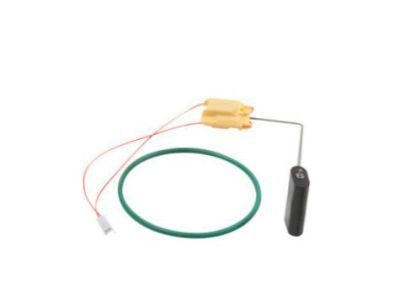

Other Name: Sensor Kit,Fuel Level; Fuel Gauge Sending Unit, Level Sensor
Replaces: 19206551, 19302146
Warranty: This genuine part is guaranteed by GM's
factory warranty.
Fits the following Vehicles:
2008-2016 Chevrolet Express | 1 TON CARGO EXPRESS, 1 TON CARGO SAVANA, 1 TON COMMERCIAL/RV CUTAWAY, 1 TON PASSENGER, 3/4 TON CARGO EXPRESS, 3/4 TON CARGO SAVANA, 3/4 TON PASSENGER EXPRESS, 3/4 TON PASSENGER SAVANA | 8 Cyl 6.6L Diesel
Q: How do you replace the fuel tank and fuel pump/fuel level sending unit on Chevrolet Express?
A: Remove the Fuel Tank and the fuel pump/ fuel level sensor. Disconnect the fuel level sensor electrical connector from the fuel pump/fuel level sensor cover. On 2011 and later models, remove the fuel level sensor unit from the fuel pump module. Installation is the reverse of removal.
Q: How do you remove the fuel pump/fuel level sending unit module?
A: To remove the fuel pump/fuel level sensor, start by relieving the fuel system pressure and disconnecting the cable from the negative battery terminal. Then, raise the vehicle and secure it on jackstands before removing the Fuel Tank. Clean the area around the fuel pump/fuel level sensor to prevent dirt from entering the tank. Disconnect the electrical connectors and fuel lines from the unit and unscrew the lockring using pliers.
