How do you remove the Steering Knuckle?

You should first remove the drive-axle/hub by first loosening the drive-axle/hub nut and wheel lug nuts. Then, raise the vehicle into a secure position on jackstands. The brake caliper with its bracket has the wheel supporting it through a wire. Take away hub from the brake disc and detach wheel speed sensor. Strut-to-steering knuckle bolt nuts can be loosened and strut marked to steering knuckle. Disconnect tie rod end from steering knuckle arm, then ball joint to steering knuckle pinch bolt removed in order to separate ball joint from steering knuckle. Drive-axle/hub nut should be removed and drive-axle pushed out of hub with end supported through wire. Finally, strut-to-knuckle bolts are removed so as to allow separation of steering knuckle from strut. To install, guide the assembly of hub and knuckle to proper positions while inserting axle into hub. Knuckle should be pushed to strut flange then begin installing bolts and nuts without tightening up yet Connect ball joint onto knuckles while tightening nut pinch bolt Install tie rod end onto arm of steering knuckler as well as tighten specified torque values for strut bolts/nuts and tie rod end nut Mounting bracket for calipers must also be installed together with brake disc and speed sensor Use wire to firmly secure drive axle's/hub's plastic cap Lastly, lower vehicle whilst installing lug-nuts then tighten wheel speed sensors n' fix them on wheels After that hold back front-end alignment check plus adjustment if necessary.

Genuine Chevrolet Cruze Steering Knuckle

Front Steering Knuckle

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

6 Steering Knuckles found

View related parts

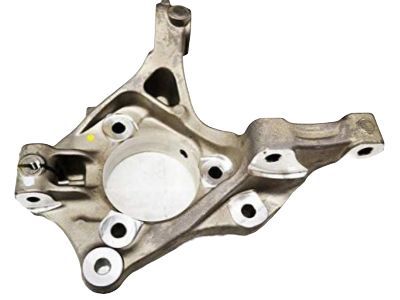

Chevrolet Cruze Steering Knuckle
Part Number: 23119518
$60.12 MSRP: $151.28
You Save: $91.16 (61%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Knuckle, Steering; Knuckle
- Replaces: 13319481
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2011-2016 Chevrolet Cruze | LS 4 DOOR NOTCHBACK, LT / LTZ 4 DOOR NOTCHBACK, LT 4 DOOR NOTCHBACK | 4 Cyl 1.4L, 4 Cyl 1.8L, 4 Cyl 2.0L Diesel
View related parts

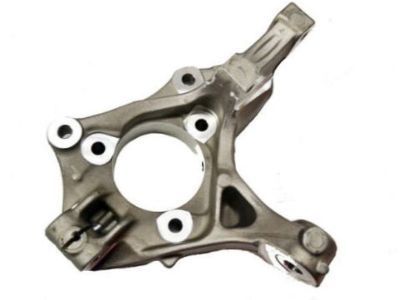

Chevrolet Cruze Steering Knuckle
Part Number: 23119517
$91.41 MSRP: $151.28
You Save: $59.87 (40%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Knuckle, Steering; Knuckle
- Replaces: 13319480
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2011-2016 Chevrolet Cruze | LS 4 DOOR NOTCHBACK, LT / LTZ 4 DOOR NOTCHBACK, LT 4 DOOR NOTCHBACK | 4 Cyl 1.4L, 4 Cyl 1.8L, 4 Cyl 2.0L Diesel
View related parts
Chevrolet Cruze Steering Knuckle
Part Number: 23118285
$257.32 MSRP: $425.89
You Save: $168.57 (40%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Knuckle,Steering; Knuckle
- Replaces: 13319482
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2014-2015 Chevrolet Cruze | LT / LTZ 4 DOOR NOTCHBACK | 4 Cyl 1.4L, 4 Cyl 1.8L, 4 Cyl 2.0L Diesel
View related parts
Chevrolet Cruze Steering Knuckle
Part Number: 39030300
$78.59 MSRP: $136.80
You Save: $58.21 (43%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Knuckle, Steering ; Knuckle, Strg; Knuckle
- Replaces: 39000056
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2016-2019 Chevrolet Cruze | LS , LS 4 DOOR HATCHBACK, LS 4 DOOR SEDAN, LT , LT 4 DOOR HATCHBACK, LT 4 DOOR SEDAN, LTZ , LTZ 4 DOOR HATCHBACK, LTZ 4 DOOR SEDAN | 4 Cyl 1.4L, 4 Cyl 1.6L Diesel
View related parts
Chevrolet Cruze Steering Knuckle
Part Number: 23118286
$254.66 MSRP: $402.51
You Save: $147.85 (37%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Knuckle,Steering; Knuckle
- Replaces: 13319483
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2014-2015 Chevrolet Cruze | LT / LTZ 4 DOOR NOTCHBACK | 4 Cyl 1.4L, 4 Cyl 1.8L, 4 Cyl 2.0L Diesel
View related parts
Chevrolet Cruze Steering Knuckle
Part Number: 39030299
$54.36 MSRP: $136.80
You Save: $82.44 (61%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Knuckle, Steering ; Knuckle, Strg; Knuckle
- Replaces: 39000055
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2016-2019 Chevrolet Cruze | LS , LS 4 DOOR HATCHBACK, LS 4 DOOR SEDAN, LT , LT 4 DOOR HATCHBACK, LT 4 DOOR SEDAN, LTZ , LTZ 4 DOOR HATCHBACK, LTZ 4 DOOR SEDAN | 4 Cyl 1.4L, 4 Cyl 1.6L Diesel

Chevrolet Cruze Steering Knuckle

The Steering Knuckle found in the Chevrolet CRUZE is an important linkage that links the suspension and the steering to the wheels of the car. Its primary function is to give bolts for the control arms, tie-rod ends and the wheel hub as well as to can move vertically in response to ground conditions and horizontally whenever there is turning. Chevrolet Cruze models incorporate a wide range of Steering Knuckles depending on the drive kind of the car, FWD, AWD or 4WD. In FWD/AWD/4WD vehicles, the drive axle protrudes through the knuckle which is either screwed on to or pressed into the hub. The design gives safety, as well as the ability to house the power train, of the car. Due to changes which occur on the Steering Knuckle, periodic inspection, most especially when other suspension parts are replaced should be conducted.

Each OEM Chevrolet Cruze Steering Knuckle we offer is competitively priced and comes with the assurance of the manufacturer's warranty for the part. Furthermore, we guarantee the speedy delivery of your orders right to your doorstep. Our hassle-free return policy is also in place for your peace of mind.

Chevrolet Cruze Steering Knuckle Parts Questions & Experts Answers

Steering Knuckle
39030300
Q: How do you remove the Steering Knuckle?
A: You should first remove the drive-axle/hub by first loosening the drive-axle/hub nut and wheel lug nuts. Then, raise the vehicle into a secure position on jackstands. The brake caliper with its bracket has the wheel supporting it through a wire. Take away hub from the brake disc and detach wheel speed sensor. Strut-to-steering knuckle bolt nuts can be loosened and strut marked to steering knuckle. Disconnect Tie Rod End from steering knuckle arm, then ball joint to steering knuckle pinch bolt removed in order to separate ball joint from steering knuckle. Drive-axle/hub nut should be removed and drive-axle pushed out of hub with end supported through wire. Finally, strut-to-knuckle bolts are removed so as to allow separation of steering knuckle from strut. To install, guide the assembly of hub and knuckle to proper positions while inserting axle into hub. Knuckle should be pushed to strut flange then begin installing bolts and nuts without tightening up yet Connect ball joint onto knuckles while tightening nut pinch bolt Install tie rod end onto arm of steering knuckler as well as tighten specified torque values for strut bolts/nuts and tie rod end nut Mounting bracket for calipers must also be installed together with brake disc and speed sensor Use wire to firmly secure drive axle's/hub's plastic cap Lastly, lower vehicle whilst installing lug-nuts then tighten wheel speed sensors n' fix them on wheels After that hold back front-end alignment check plus adjustment if necessary.
