How to replace the Fuel Level Sensor?

Take off the fuel pump module. Put the fuel pump module on neat workbench surface. Unplug the fuel level sensor connector at the top of the module. Press down the locking tab and move the fuel level sensor unit out of slots in the module. Shimmy it up a bit until the sensor unit is no longer held by its retaining rails, then push on it with a pointed object to release it Finally, you should hear a click as you slide the fuel level sensor into position. Tug on it gently to make sure it's locked in place. The rest of installation is just removing it.

Genuine Chevrolet Cruze Fuel Level Sensor

Gas Gauge Sensor

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

4 Fuel Level Sensors found

View related parts

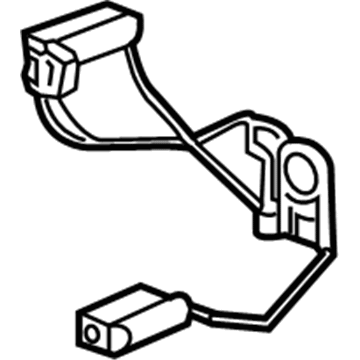

Chevrolet Cruze Fuel Level Sensor Kit
Part Number: 13593309
$37.32 MSRP: $70.41
You Save: $33.09 (47%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Sensor Kit, Fuel Level ; Sensor Kit, Fuel Lvl; Fuel Gauge Sending Unit, Level Sensor
- Replaced by: 13510666
- Replaces: 13579904, 13504670, 13321044
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2011-2016 Chevrolet Cruze | LS 4 DOOR NOTCHBACK, LT / LTZ 4 DOOR NOTCHBACK, LT 4 DOOR NOTCHBACK | 4 Cyl 1.4L, 4 Cyl 1.8L, 4 Cyl 2.0L Diesel
View related parts

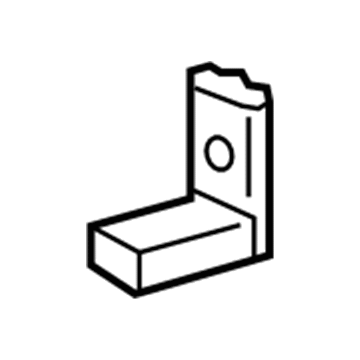

Chevrolet Cruze Sensor Kit, Fuel Lvl
Part Number: 13593311
$20.22 MSRP: $42.47
You Save: $22.25 (53%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Fuel Gauge Sending Unit, Level Sensor
- Replaces: 13504673, 13504676
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2011-2016 Chevrolet Cruze | LS 4 DOOR NOTCHBACK, LT / LTZ 4 DOOR NOTCHBACK, LT 4 DOOR NOTCHBACK | 4 Cyl 1.8L
View related parts
Chevrolet Cruze Fuel Level Sensor Kit
Part Number: 13588157
$55.98 MSRP: $117.60
You Save: $61.62 (53%)
Ships in 1-3 Business Days
ADD TO CART
Product Specifications
- Other Name: Sensor Kit, Fuel Level ; Sensor Kit, Fuel Lvl; Fuel Gauge Sending Unit, Level Sensor
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2016-2019 Chevrolet Cruze | LS (GMNA), LS 4 DOOR HATCHBACK(GMNA), LS 4 DOOR SEDAN, LT (GMNA), LT 4 DOOR HATCHBACK, LT 4 DOOR SEDAN, LTZ (GMNA), LTZ 4 DOOR HATCHBACK, LTZ 4 DOOR SEDAN | 4 Cyl 1.4L
View related parts
Chevrolet Cruze Fuel Level Sensor Kit
Part Number: 13509668
$59.49 MSRP: $106.72
You Save: $47.23 (45%)
ADD TO CART
Product Specifications
- Other Name: Sensor Kit, Fuel Level ; Sensor Kit, Fuel Lvl; Fuel Gauge Sending Unit, Level Sensor
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2017-2019 Chevrolet Cruze | LT 4 DOOR HATCHBACK, LT 4 DOOR SEDAN | 4 Cyl 1.6L Diesel

Chevrolet Cruze Fuel Level Sensor Parts Questions & Experts Answers

Fuel Level Sensor Kit
13593309
Q: How to replace the Fuel Level Sensor?
A: Take off the Fuel Pump module. Put the fuel pump module on neat workbench surface. Unplug the fuel level sensor connector at the top of the module. Press down the locking tab and move the fuel level sensor unit out of slots in the module. Shimmy it up a bit until the sensor unit is no longer held by its retaining rails, then push on it with a pointed object to release it Finally, you should hear a click as you slide the fuel level sensor into position. Tug on it gently to make sure it's locked in place. The rest of installation is just removing it.
