Genuine Chevrolet Colorado Drive Shaft
Axle Shaft- Select Vehicle by Model
- Select Vehicle by VIN
Select Vehicle by Model
orMake
Model
Year
Select Vehicle by VIN
For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).
27 Drive Shafts found

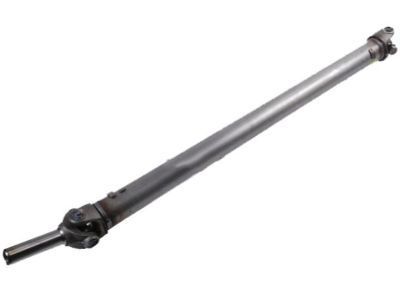

Chevrolet Colorado Front Axle Propeller Shaft Assembly
Part Number: 25843685$593.10 MSRP: $945.95You Save: $352.85 (38%)Ships in 1-3 Business Days
Chevrolet Colorado Shaft Assembly, Prop
Part Number: 84369125$455.43 MSRP: $723.07You Save: $267.64 (38%)
Chevrolet Colorado Front Axle Propeller Shaft Assembly
Part Number: 84076334$252.67 MSRP: $418.19You Save: $165.52 (40%)Ships in 1-2 Business DaysChevrolet Colorado SHAFT ASM-F/AXL PROP
Part Number: 84940461$268.28 MSRP: $423.92You Save: $155.64 (37%)Ships in 1-3 Business Days
Chevrolet Colorado Shaft Assembly, Prop
Part Number: 85109714$546.41 MSRP: $867.32You Save: $320.91 (37%)Chevrolet Colorado Shaft Assembly, Prop
Part Number: 85109711$332.12 MSRP: $524.93You Save: $192.81 (37%)Ships in 1-3 Business DaysChevrolet Colorado Propeller Shaft Assembly
Part Number: 94769075$338.53 MSRP: $535.07You Save: $196.54 (37%)Ships in 1-3 Business DaysChevrolet Colorado Shaft Assembly, Prop
Part Number: 84369124$398.15 MSRP: $629.28You Save: $231.13 (37%)Ships in 1-3 Business DaysChevrolet Colorado SHAFT ASM-PROP
Part Number: 85518585$440.70 MSRP: $696.55You Save: $255.85 (37%)Ships in 1-2 Business Days
Chevrolet Colorado SHAFT ASM-PROP
Part Number: 84521705$352.20 MSRP: $556.67You Save: $204.47 (37%)Ships in 1-2 Business DaysChevrolet Colorado Shaft Assembly, Prop
Part Number: 85109713$388.67 MSRP: $676.49You Save: $287.82 (43%)Chevrolet Colorado SHAFT ASM-PROP
Part Number: 84369122$538.53 MSRP: $855.03You Save: $316.50 (38%)Ships in 1-2 Business DaysChevrolet Colorado SHAFT ASM-F/AXL PROP
Part Number: 84521716$250.46 MSRP: $395.77You Save: $145.31 (37%)Ships in 1-2 Business DaysChevrolet Colorado SHAFT ASM-PROP
Part Number: 85109716$315.73 MSRP: $499.02You Save: $183.29 (37%)Ships in 1-2 Business Days
Chevrolet Colorado SHAFT ASM-PROP

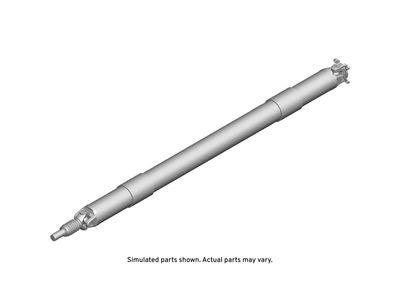

Part Number: 84521711$376.87 MSRP: $595.66You Save: $218.79 (37%)Ships in 1-2 Business DaysChevrolet Colorado SHAFT ASM-PROP
Part Number: 84521712$378.03 MSRP: $597.49You Save: $219.46 (37%)Ships in 1-2 Business Days
| Page 1 of 2 |Next >
1-20 of 27 Results
Chevrolet Colorado Drive Shaft
The Drive Shaft in Chevrolet Colorado vehicles play a very pivotal role of transmitting torque from the powerplant to the rear-drive axle as a mechanism of transmitting power to the drive wheels. Being built as a hollow tube, the Drive Shaft is optimized to reach rather high rotational speed and withstand considerable torsion; its walls are usually 0.083" to 0.095" thick. U-or CV- joints have to be strong and free from defects such as bends or cracks since this affects performance as evidenced by noise and vibration during use. Year to year different Chevrolet Colorado models have been using varied driveshaft designs, the one piece and the two piece driveshafts. It is usually composed of two parts and in some models a center support bearing is used to help control the length and position of the drive shaft. The differentials are used when necessary for meeting the vehicle layout and dynamic performance needs for strong, dependable power delivery over a range of operating conditions.
Each OEM Chevrolet Colorado Drive Shaft we offer is competitively priced and comes with the assurance of the manufacturer's warranty for the part. Furthermore, we guarantee the speedy delivery of your orders right to your doorstep. Our hassle-free return policy is also in place for your peace of mind.
Chevrolet Colorado Drive Shaft Parts Questions & Experts Answers
- Q: How do you remove the rear driveshaft?A: The first step to removing the rear driveshaft is to raise the vehicle and firmly support it on jackstands. The transmission should be placed in Neutral with the parking brake off and the front wheels blocked. Mark reference points on the driveshaft so that they align with those on the pinion flange. Use a screwdriver or prybar to undo the bolts and straps of the rear universal joint, thereby preventing it from turning. Since there may be splines inside the spider, tape its bearing caps down. Similarly, if applicable remove support bearing mounting bolts. Slide it out of the transmission or transfer case while lowering the back end of the drive shaft. Put a plastic bag over housing to prevent fluid loss/contamination. Remove this plastic bag upon installation and wipe clean. Insert front part of driveshaft into transmission or transfer case, while raising rear one ensuring marks are aligned. Remove tape securing bearing caps and install straps and bolts tightening them to specified torque values. For 4WD models' front driveshaft; raise vehicle's front part & take off skid plate where present; mark relationship between driveshaft & companion flange at forward differential & transfer case flange; remove strap & bolt from differential flange as well as those fastening driveshaft to transfer case flange; push rearwards drive shaft from differential flange then lower & pull out from transfer case; after installing ensure rear is properly aligned with marks made on companion flange at front differential as well as transfer case flange at back; tighten all couplings using defined levels of torque; and finally install skid plate if available.
- Q: How to remove and install the Drive Shaft in a 4WD Chevrolet Colorado and GMC Canyon?A: Loosen the left front wheel lug nuts, raise the vehicle, place it securely on jackstands and remove the left front wheel. Remove the splash shield. Remove the left driveaxle and intermediate shaft bearing housing. Thread a slide hammer adapter into the hole in the end of the intermediate shaft. Attach a slide hammer to the adapter. Pull the intermediate shaft out of the Differential, taking care not to damage the seal on the opposite side of the oil pan. Make sure the retaining ring is in position on the end of the intermediate shaft. Insert the intermediate shaft through the oil pan passage and into the differential, taking care not to damage the oil seal. Rotate the shaft as necessary to align its splines with the differential. Install the slide hammer on the shaft, then use the slide hammer to drive the shaft In until its retaining ring locks into place in the differential. The remainder of installation is the reverse of the removal steps.
- Q: What is the purpose and maintenance requirements of a driveshaft and Universal Joint for Chevrolet Colorado and GMC Canyon?A: A drive shaft is a tube that carries power between the transmission or transfer case and the differential. There are universal joints on either end of the rear drive shaft and on the front end of the front drive shaft. The front of the rear drive shaft has a splined yoke that slides into the extension housing of the transmission or transfer case, permitting it to be moved back and forth during vehicle operation. An oil seal prevents this leakage. Very little maintenance is required for the drive shaft assembly, but it may become necessary to replace universal joints if they develop problems. Drive shafts should be kept clean and checked for damage. Driving noise or vibration usually reveals issues with this part. When inspecting, look at its surface for dents or cracks, as well as for oil leakage from both ends. The U-joints should have free play without binding, rattling or rocking in them. Make sure you also tighten up all bolts securing the driveshaft in place. On 4WD models, check out the front driveshaft too including any seepage around its sleeve yoke. Looseness in the jointity of front driveaxles can be determined by checking; also look for grease or oil leaks emanating from rubber boots as well as axle flanges.
