How to remove and install a door window regulator and motor assembly?

Remove the door trim panel and the plastic watershield. Disengage the door Window Regulator from the regulator, then tape the Window Regulator in the "up" position, with the tape wrapping around the door frame. On power window models, be sure to remove the key from the ignition switch. On power window models, disconnect the electrical connector from the Window Regulator motor. The regulator assembly is comprised of a front and rear section, connected by cable. Remove the appropriate bolts and loosen the others. Remove the Window Regulator/motor assembly from the door, being careful not to kink the cables connecting the two sections of the regulator assembly. Lubricate the rollers and wear points on the regulator with white grease before installation. Installation is the reverse of removal. For the rear, remove the door trim panel and the plastic watershield. Disengage the door Window Regulator from the regulator, then tape the Window Regulator in the "up" position, with the tape wrapping around the door frame. On power window models, be sure to remove the key from the ignition switch and disconnect the electrical connector from the Window Regulator motor. Loosen the regulator/motor assembly mounting bolts. Move the regulator so that the bolts clear the slots in the door, then remove the Window Regulator/motor assembly from the door. Lubricate the rollers and wear points on the regulator with white grease before installation. Installation is the reverse of removal.

Genuine Chevrolet Cobalt Window Regulator

Electric Power Window Regulator

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

12 Window Regulators found

View related parts

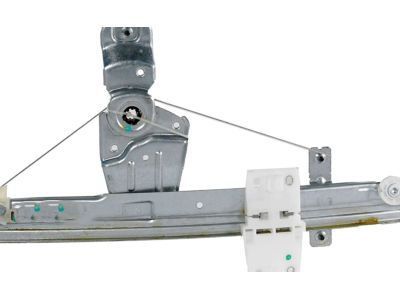

Chevrolet Cobalt Rear Driver Side Power Window Regulator (W/O Motor)
Part Number: 19301975
$84.49 MSRP: $239.47
You Save: $154.98 (65%)
ADD TO CART
Product Specifications
- Other Name: Regulator Asm,Rear Side Door Window(W/O Motor)(Lh); Regulator, Window Regulator
- Position: Rear Driver Side
- Replaces: 22714604, 22738688, 15906995
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2005-2010 Chevrolet Cobalt | LEVEL THREE (SS) 4 DOOR, LEVEL TWO (LT) 4 DOOR | 4 Cyl 2.0L, 4 Cyl 2.2L, 4 Cyl 2.4L
View related parts
Chevrolet Cobalt Rear Passenger Side Power Window Regulator (W/O Motor)
Part Number: 19301974
$87.45 MSRP: $247.86
You Save: $160.41 (65%)
ADD TO CART
Product Specifications
- Other Name: Regulator Asm,Rear Side Door Window(W/O Motor)(Rh); Regulator, Window Regulator
- Position: Rear Passenger Side
- Replaces: 22714605, 22738689, 15906996
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2005-2010 Chevrolet Cobalt | LEVEL THREE (SS) 4 DOOR, LEVEL TWO (LT) 4 DOOR | 4 Cyl 2.0L, 4 Cyl 2.2L, 4 Cyl 2.4L
View related parts
Chevrolet Cobalt Front Side Door Window Regulator Assembly (W/O Motor)(Lh)
Part Number: 19301973
$59.12 MSRP: $140.78
You Save: $81.66 (59%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Regulator Asm,Front Side Door Window(W/O Motor)(Lh); Regulator, Window Regulator
- Position: Front Driver Side
- Replaces: 15275363, 22716576, 15900274
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2005-2010 Chevrolet Cobalt | LEVEL 4 PERFORMANCE/SC (SS) 4 DOOR, LEVEL THREE (SS) 4 DOOR, LEVEL TWO (LT) 4 DOOR | 4 Cyl 2.0L, 4 Cyl 2.2L, 4 Cyl 2.4L
View related parts
Chevrolet Cobalt Front Side Door Window Regulator Assembly (W/O Motor)(Rh)
Part Number: 19301972
$81.85 MSRP: $146.82
You Save: $64.97 (45%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Regulator Asm,Front Side Door Window(W/O Motor)(Rh); Regulator, Window Regulator
- Position: Front Passenger Side
- Replaces: 22716577, 15275364, 15900275
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2005-2010 Chevrolet Cobalt | LEVEL 4 PERFORMANCE/SC (SS) 4 DOOR, LEVEL THREE (SS) 4 DOOR, LEVEL TWO (LT) 4 DOOR | 4 Cyl 2.0L, 4 Cyl 2.2L, 4 Cyl 2.4L
View related parts
Chevrolet Cobalt Rear Side Door Window Regulator Assembly
Part Number: 15906997
Product Specifications
- Other Name: Regulator Assembly, Rear Side Door Window; Regulator, Window Regulator
- Position: Rear
- Replaces: 22714607
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2005-2010 Chevrolet Cobalt | 4 DOOR, LEVEL ONE (LS) 4 DOOR | 4 Cyl 2.0L, 4 Cyl 2.2L, 4 Cyl 2.4L
View related parts
Chevrolet Cobalt Rear Side Door Window Regulator Assembly
Part Number: 15906998
Product Specifications
- Other Name: Regulator Assembly, Rear Side Door Window; Regulator, Window Regulator
- Position: Rear
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2005-2010 Chevrolet Cobalt | 4 DOOR, LEVEL ONE (LS) 4 DOOR | 4 Cyl 2.0L, 4 Cyl 2.2L, 4 Cyl 2.4L
View related parts
Chevrolet Cobalt Front Side Door Window Regulator Assembly
Part Number: 20795492
Product Specifications
- Other Name: Regulator Assembly, Front Side Door Window; Regulator, Window Regulator
- Position: Front
- Replaces: 25852205, 15817877, 22701096
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2005-2010 Chevrolet Cobalt | 2 DOOR, LEVEL ONE (LS) 2 DOOR | 4 Cyl 2.0L, 4 Cyl 2.2L, 4 Cyl 2.4L
View related parts
Chevrolet Cobalt Front Side Door Window Regulator Assembly
Part Number: 20795493
Product Specifications
- Other Name: Regulator Assembly, Front Side Door Window; Regulator, Window Regulator
- Position: Front
- Replaces: 22701097, 25852204, 15817876
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2005-2010 Chevrolet Cobalt | 2 DOOR, LEVEL ONE (LS) 2 DOOR | 4 Cyl 2.0L, 4 Cyl 2.2L, 4 Cyl 2.4L
View related parts
Chevrolet Cobalt REGULATOR ASM,FRT S/D WDO
Part Number: 19369867
Product Specifications
- Other Name: Regulator, Window Regulator
- Replaces: 25852207, 15838017, 22701094, 25796169, 15817879
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2005-2010 Chevrolet Cobalt | LEVEL 4 PERFORMANCE (SS) 2 DOOR, LEVEL 4 PERFORMANCE/SC (SS) 2 DOOR, LEVEL THREE (SS) 2 DOOR, LEVEL TWO (LT) 2 DOOR | 4 Cyl 2.0L, 4 Cyl 2.2L, 4 Cyl 2.4L
View related parts
Chevrolet Cobalt Front Side Door Window Regulator Assembly
Part Number: 15899051
Product Specifications
- Other Name: Regulator Assembly, Front Side Door Window; Regulator, Window Regulator
- Position: Front
- Replaces: 22716578, 15271614
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2005-2010 Chevrolet Cobalt | 4 DOOR, LEVEL ONE (LS) 4 DOOR | 4 Cyl 2.0L, 4 Cyl 2.2L, 4 Cyl 2.4L
View related parts
Chevrolet Cobalt Front Side Door Window Regulator Assembly
Part Number: 15899052
Product Specifications
- Other Name: Regulator Assembly, Front Side Door Window; Regulator, Window Regulator
- Position: Front
- Replaces: 22716579, 15271613
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2005-2010 Chevrolet Cobalt | 4 DOOR, LEVEL ONE (LS) 4 DOOR | 4 Cyl 2.0L, 4 Cyl 2.2L, 4 Cyl 2.4L
View related parts
Chevrolet Cobalt REGULATOR ASM,FRT S/D WDO
Part Number: 19369866
Product Specifications
- Other Name: Regulator, Window Regulator
- Replaces: 25796170, 25852206
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2005-2010 Chevrolet Cobalt | LEVEL 4 PERFORMANCE (SS) 2 DOOR, LEVEL 4 PERFORMANCE/SC (SS) 2 DOOR, LEVEL THREE (SS) 2 DOOR, LEVEL TWO (LT) 2 DOOR | 4 Cyl 2.0L, 4 Cyl 2.2L, 4 Cyl 2.4L

Chevrolet Cobalt Window Regulator Parts Questions & Experts Answers

Front Side Door Window Regulator Assembly (W/O Motor)(Lh)
19301973
Q: How to remove and install a door window regulator and motor assembly?
A: Remove the door trim panel and the plastic watershield. Disengage the door Window Regulator from the regulator, then tape the Window Regulator in the "up" position, with the tape wrapping around the door frame. On power window models, be sure to remove the key from the ignition switch. On power window models, disconnect the electrical connector from the Window Regulator motor. The regulator assembly is comprised of a front and rear section, connected by cable. Remove the appropriate bolts and loosen the others. Remove the Window Regulator/motor assembly from the door, being careful not to kink the cables connecting the two sections of the regulator assembly. Lubricate the rollers and wear points on the regulator with white grease before installation. Installation is the reverse of removal. For the rear, remove the door trim panel and the plastic watershield. Disengage the door Window Regulator from the regulator, then tape the Window Regulator in the "up" position, with the tape wrapping around the door frame. On power window models, be sure to remove the key from the ignition switch and disconnect the electrical connector from the Window Regulator motor. Loosen the regulator/motor assembly mounting bolts. Move the regulator so that the bolts clear the slots in the door, then remove the Window Regulator/motor assembly from the door. Lubricate the rollers and wear points on the regulator with white grease before installation. Installation is the reverse of removal.
