How do you remove the wheel cylinder on Chevrolet Cobalt?

First, hinder the front wheels so that the vehicle does not move. Afterwards, slacken the lug nuts at the rear wheel and raise the tail end of the vehicle, holding it firmly onto jack stands. Remove both rear wheel and let off parking brake before removing brake drum. After that give a thorough clean around wheel cylinder area and remove any rubbish or foreign object. At the back of backing plate unscrew brake line fitting ensuring that you don't pull away brake line from wheel cylinder. Take out bleeder screw for wheel cylinder followed by its cover together with mounting bolts for wheel cylinder. Then release it from backing plate to which it is attached.Remove bleed screw cap.Taken out are mounting screws for fixing wheel cylinder on backing plate.Place it in position and attach brake lines' socket finger tight.Fix on again mounting bolts as required.Securely tighten up this bolt attaching brake lines.Plug in bleeder screw to close external opening after replacing cap.Then install on hub flange first shoes intended for brakes.Reinstall both wheels after putting lug nuts back on.Bleed a braking system, lower car to ground then secure each lug nut with correct torque specifications.The brakes should be properly checked before driving this automobile into normal traffic situations.

Genuine Chevrolet Cobalt Wheel Cylinder

Brake Wheel Cylinder

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

3 Wheel Cylinders found

View related parts

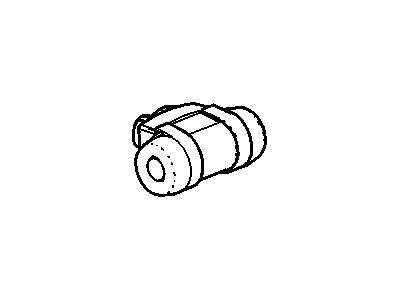

Chevrolet Cobalt Cylinder Asm,Rear Brake
Part Number: 19213358
$26.50 MSRP: $50.01
You Save: $23.51 (48%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: CYLINDER, Wheel Brake Cylinder/Caliper; Wheel Cylinder
- Position: Rear
- Replaces: 10366347
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2005-2008 Chevrolet Cobalt | 2 DOOR, 4 DOOR, LEVEL ONE (LS) 2 DOOR, LEVEL ONE (LS) 4 DOOR, LEVEL TWO (LT) 2 DOOR, LEVEL TWO (LT) 4 DOOR | 4 Cyl 2.0L, 4 Cyl 2.2L, 4 Cyl 2.4L
View related parts
Chevrolet Cobalt Cylinder Assembly, Rear Brake
Part Number: 25994648
Product Specifications
- Other Name: CYLINDER, Wheel Brake Cylinder/Caliper; Wheel Cylinder
- Position: Rear
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2009-2010 Chevrolet Cobalt | 2 DOOR, 4 DOOR, LEVEL ONE (LS) 2 DOOR, LEVEL ONE (LS) 4 DOOR, LEVEL TWO (LT) 2 DOOR, LEVEL TWO (LT) 4 DOOR | 4 Cyl 2.0L, 4 Cyl 2.2L
View related parts
Chevrolet Cobalt Cylinder Assembly, Rear Brake
Part Number: 25994649
Product Specifications
- Other Name: CYLINDER, Wheel Brake Cylinder/Caliper; Brake Shoe, Wheel Cylinder
- Position: Rear
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2009-2010 Chevrolet Cobalt | 2 DOOR, 4 DOOR, LEVEL ONE (LS) 2 DOOR, LEVEL ONE (LS) 4 DOOR, LEVEL TWO (LT) 2 DOOR, LEVEL TWO (LT) 4 DOOR | 4 Cyl 2.0L, 4 Cyl 2.2L

Chevrolet Cobalt Wheel Cylinder

The Chevrolet Cobalt Wheel Cylinder is an important that exerts force on the brake shoes against the brake drum to enable braking. It includes the cylinder body, pistons, cup seals, an expander spring and these are covered by dust boots. As hydraulic pressure is used the pistons move outwards with the shoes to come into contact with the drum whilst the use of cup seals is aimed at avoiding leaks. Thus, due to moisture absorption, the inner surface of the bore witnesses corrosion, pitting and scoring, which leads to leakage and decreased braking effect. Like any other automobile, the construction equipment requires timely inspection so that any developing problem should be detected early enough and maintenance to ensure that the equipment will have a good running on the road. In cases where severe damage is observed, replacement should be considered because new wheel cylinders are relatively more reliable than the rebuilt ones.

Each OEM Chevrolet Cobalt Wheel Cylinder we offer is competitively priced and comes with the assurance of the manufacturer's warranty for the part. Furthermore, we guarantee the speedy delivery of your orders right to your doorstep. Our hassle-free return policy is also in place for your peace of mind.

Chevrolet Cobalt Wheel Cylinder Parts Questions & Experts Answers

Cylinder Asm,Rear Brake
19213358
Q: How do you remove the wheel cylinder on Chevrolet Cobalt?
A: First, hinder the front wheels so that the vehicle does not move. Afterwards, slacken the lug nuts at the rear wheel and raise the tail end of the vehicle, holding it firmly onto jack stands. Remove both rear wheel and let off parking brake before removing brake drum. After that give a thorough clean around wheel cylinder area and remove any rubbish or foreign object. At the back of backing plate unscrew brake line fitting ensuring that you don't pull away brake line from wheel cylinder. Take out bleeder screw for wheel cylinder followed by its cover together with mounting bolts for wheel cylinder. Then release it from backing plate to which it is attached.Remove bleed screw cap.Taken out are mounting screws for fixing wheel cylinder on backing plate.Place it in position and attach brake lines' socket finger tight.Fix on again mounting bolts as required.Securely tighten up this bolt attaching brake lines.Plug in bleeder screw to close external opening after replacing cap.Then install on hub flange first shoes intended for brakes.Reinstall both wheels after putting lug nuts back on.Bleed a braking system, lower car to ground then secure each lug nut with correct torque specifications.The brakes should be properly checked before driving this automobile into normal traffic situations.
