How to check the fuel level sending unit?

The fuel tank and fuel pump need to be removed so as to check if there is any issue with the fuel level sensor. Connect the ohmmeter's probes to the terminals of fuel level sensor signal and ground in the fuel pump module electrical connector. Change float position for empty (down) and tell its reading via an ohmmeter, which should be low (about 2 ohms). Push up float to full position; look at meter as resistance will be higher (aproximatly 90 ohms). If resistance readings are wrong or resistance does not change uniformly while moving the float from empty to full, then, definitely it is time for replacing the device. The fuel level sensor on all 1995-earlier models is incorporated into a complete tank unit assembly; therefore, only a fuel pump itself is serviced independently. Disconnect the electrical connector of the fuel level sensor, remove a retaining clip and take off a sensor from module. Remember how wiring was done in order to put it back correctly during installation. However, on 1996-later models with six-cylinder engines, this component remains part and parcel of an entire fuel pump assembly without being treated individually. In case of failure at any point of time by using a defective unit such as "fuel level sensor," it means that you have no other option other than changing whole pumping apparatus also known as "entire pump." This is applicable in both cases for installation which will be just contrary to what was previously performed while removing them from their respective positions earlier.

Genuine Chevrolet Blazer Fuel Level Sensor

Gas Gauge Sensor

Select Vehicle by Model
Select Vehicle by VIN

Select Vehicle by Model

Make

Model

Year

Select Vehicle by VIN

For the most accurate results, select vehicle by your VIN (Vehicle Identification Number).

5 Fuel Level Sensors found

View related parts
Chevrolet Blazer Fuel Level Sensor Kit
Part Number: 84717990
$38.21 MSRP: $109.61
You Save: $71.40 (66%)
Ships in 1 Business Day
ADD TO CART
Product Specifications
- Other Name: Sensor Kit, Fuel Lvl; Fuel Gauge Sending Unit, Level Sensor
- Replaces: 23282528
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2019-2021 Chevrolet Blazer | HIGH COUNTRY/LTZ 4 DOOR SUV, LT 4 DOOR SUV, RS 4 DOOR SUV | 4 Cyl 2.0L, 4 Cyl 2.5L, 6 Cyl 3.6L
View related parts
Chevrolet Blazer Fuel Level Sensor Kit
Part Number: 84726779
$44.71 MSRP: $93.94
You Save: $49.23 (53%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Sensor Kit, Fuel Lvl; Fuel Gauge Sending Unit, Level Sensor
- Replaces: 23282531
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2019-2021 Chevrolet Blazer | HIGH COUNTRY/LTZ 4 DOOR SUV, L 4 DOOR SUV, LT 4 DOOR SUV, RS 4 DOOR SUV | 4 Cyl 2.0L, 4 Cyl 2.5L, 6 Cyl 3.6L
View related parts

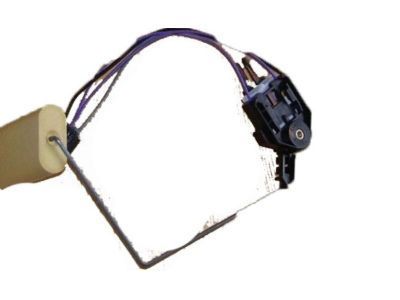

Chevrolet Blazer Fuel Tank Meter/Pump SENSOR KIT
Part Number: 19121293
$72.06 MSRP: $129.25
You Save: $57.19 (45%)
Ships in 1-2 Business Days
ADD TO CART
Product Specifications
- Other Name: Sensor Kit,Fuel Level ; Sensor Kit, Fuel Tank Meter/Pump; Fuel Gauge Sending Unit
- Replaces: 25314258
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1998-2005 Chevrolet Blazer | 4 DOOR | 6 Cyl 4.3L
View related parts
Chevrolet Blazer Fuel Tank Meter/Pump SENSOR KIT
Part Number: 19121300
$59.21 MSRP: $180.74
You Save: $121.53 (68%)
ADD TO CART
Product Specifications
- Other Name: Sensor Kit,Fuel Level ; Sensor Kit, Fuel Tank Meter/Pump; Fuel Gauge Sending Unit, Sensor
- Replaces: 25314231, 25176378
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 1997-2002 Chevrolet Blazer | 2 DOOR, 4 DOOR | 6 Cyl 4.3L
View related parts
Chevrolet Blazer Fuel Tank Meter/Pump SENSOR KIT
Part Number: 25347252
Product Specifications
- Other Name: Sensor Kit,Fuel Level ; Sensor Kit, Fuel Tank Meter/Pump
- Warranty: This genuine part is guaranteed by GM's factory warranty.
Fits the following Vehicles:
- 2003-2005 Chevrolet Blazer | 2 DOOR | 6 Cyl 4.3L

Chevrolet Blazer Fuel Level Sensor

Fuel Level Sensor in Chevrolet Blazer is an important unit that shows the fuel quantity in the tank to the driver of the car. These electronics equipments have been developed to have high measurement capability on fuel without being affected by heat, whereby it will offer fast fuel measurement. Originally the float moves up then down to either increase the current or decrease it with help of actuating rod, resistor it sends a signal back to the fuel gauge. If there are prospects with the fuel level sensor, it is high time that the vehicle goes for repairs to receive correct readings free of any errors displayed on the fuel level.

Each OEM Chevrolet Blazer Fuel Level Sensor we offer is competitively priced and comes with the assurance of the manufacturer's warranty for the part. Furthermore, we guarantee the speedy delivery of your orders right to your doorstep. Our hassle-free return policy is also in place for your peace of mind.

Chevrolet Blazer Fuel Level Sensor Parts Questions & Experts Answers

Fuel Tank Meter/Pump SENSOR KIT
19121293
Q: How to check the fuel level sending unit?
A: The Fuel Tank and Fuel Pump need to be removed so as to check if there is any issue with the fuel level sensor. Connect the ohmmeter's probes to the terminals of fuel level sensor signal and ground in the fuel pump module electrical connector. Change float position for empty (down) and tell its reading via an ohmmeter, which should be low (about 2 ohms). Push up float to full position; look at meter as resistance will be higher (aproximatly 90 ohms). If resistance readings are wrong or resistance does not change uniformly while moving the float from empty to full, then, definitely it is time for replacing the device. The fuel level sensor on all 1995-earlier models is incorporated into a complete tank unit assembly; therefore, only a fuel pump itself is serviced independently. Disconnect the electrical connector of the fuel level sensor, remove a retaining clip and take off a sensor from module. Remember how wiring was done in order to put it back correctly during installation. However, on 1996-later models with six-cylinder engines, this component remains part and parcel of an entire fuel pump assembly without being treated individually. In case of failure at any point of time by using a defective unit such as "fuel level sensor," it means that you have no other option other than changing whole pumping apparatus also known as "entire pump." This is applicable in both cases for installation which will be just contrary to what was previously performed while removing them from their respective positions earlier.
